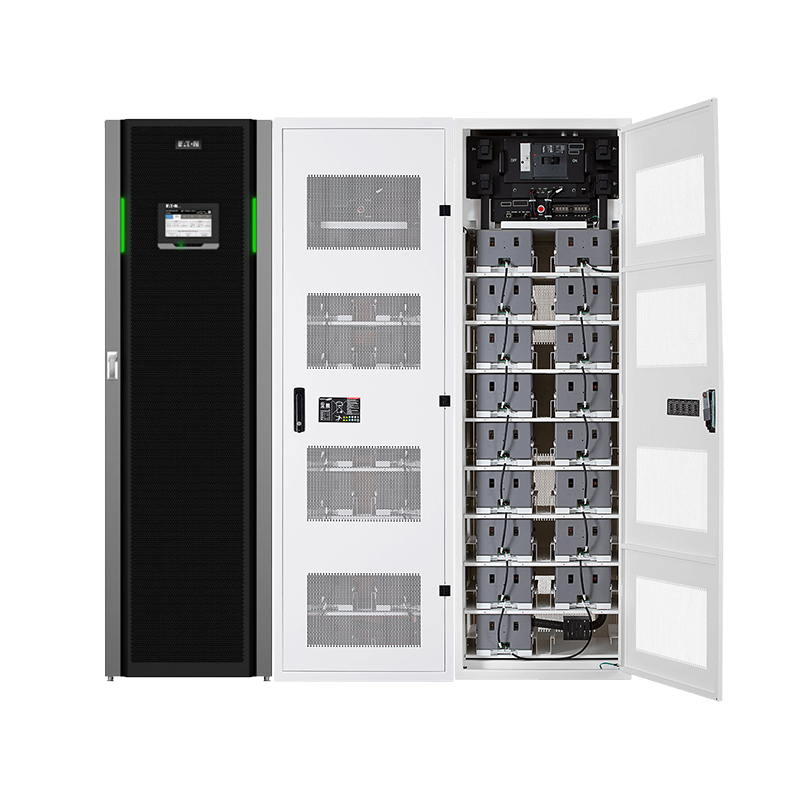

Eaton 93PM 110kW 480V UPS Tower with Communications

VENDOR: EATON Mfg Part#: 9PL11D0029C00R2
1 2
Photo is for illustration purposes only. Actual product may be different.
$94,579.00
$94,579.00
Sale Sold out
MSRP: $146,521.00
Shipping calculated at checkout.
  • - 110kW power capacity for high-demand applications
  • - 480V input suitable for industrial and enterprise environments
  • - Tower form factor for standalone deployment
  • - RoHS certified ensuring environmental compliance
  • - TAA-compliant for government and regulated markets
  • - Built-in communication features for remote management

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Supports mission-critical infrastructure with 110kW of robust power delivery
  • - Meets government procurement standards with TAA and RoHS certifications
  • - Designed and manufactured in the U.S. for dependable quality and compliance

Product Overview

Eaton 93PM 480v, 110kW all communication, empty sideca

Specifications

Product Overview
Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM
Manufacturer Part Number 9PL11D0029C00R2
Form Factor Tower
Input Voltage 480V
Output Power Capacity 110 kW
UPS Technology Double Conversion (Online)
Phase Three-phase
Efficiency Up to 97%
Operating Frequency 50/60 Hz auto-sensing
Bypass Internal Static and Maintenance Bypass
Scalability Scalable in 50 kW increments
Redundancy N+1 Redundant Support
Internal Batteries No (External Battery Cabinets Required)
Hot-Swappable Modules Yes

Wireless Features
Wireless Connectivity No

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL 1778, CSA, FCC Part 15 Class A, IEC/EN62040-1, IEC/EN62040-2
Environmental Compliance REACH, WEEE

Advanced Security Features
User Authentication Password Protection and Role-Based Access Control
SNMPv3 Support Yes
Network Encryption SSL/TLS Support on Management Interfaces
Event Notification Email, SNMP Traps, Syslog Events

Interfaces
Communication Ports RS-232, USB, Relay Output, Modbus RTU, Modbus TCP/IP
Network Management Ports 1 x Ethernet (RJ-45)
Expansion Slots 1 x Mini-Slot for Optional Network Cards
Available Protocols SNMP, HTTP, HTTPS, Modbus, BACnet

Physical & Environmental
Dimensions (H x W x D) 78.7 x 23.6 x 39.4 in (2000 x 600 x 1000 mm)
Weight Approx. 1320 lbs (598.7 kg)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -25°C to 55°C (-13°F to 131°F)
Operating Altitude Up to 1000 m without derating
Relative Humidity 0% to 95% non-condensing
Noise Level Approximately 66 dBA at 1 meter
Cooling Method Internal Fans with Redundancy

Cloud Management & Licensing
Management Interface Eaton Intelligent Power Manager (IPM), Eaton Visual Power Manager (VPM)
Remote Monitoring Capabilities Yes, via network card
Included Management Software Intelligent Power Manager (IPM) Basic
Cloud Integration Yes (Eaton Brightlayer Data Centers Platform)
