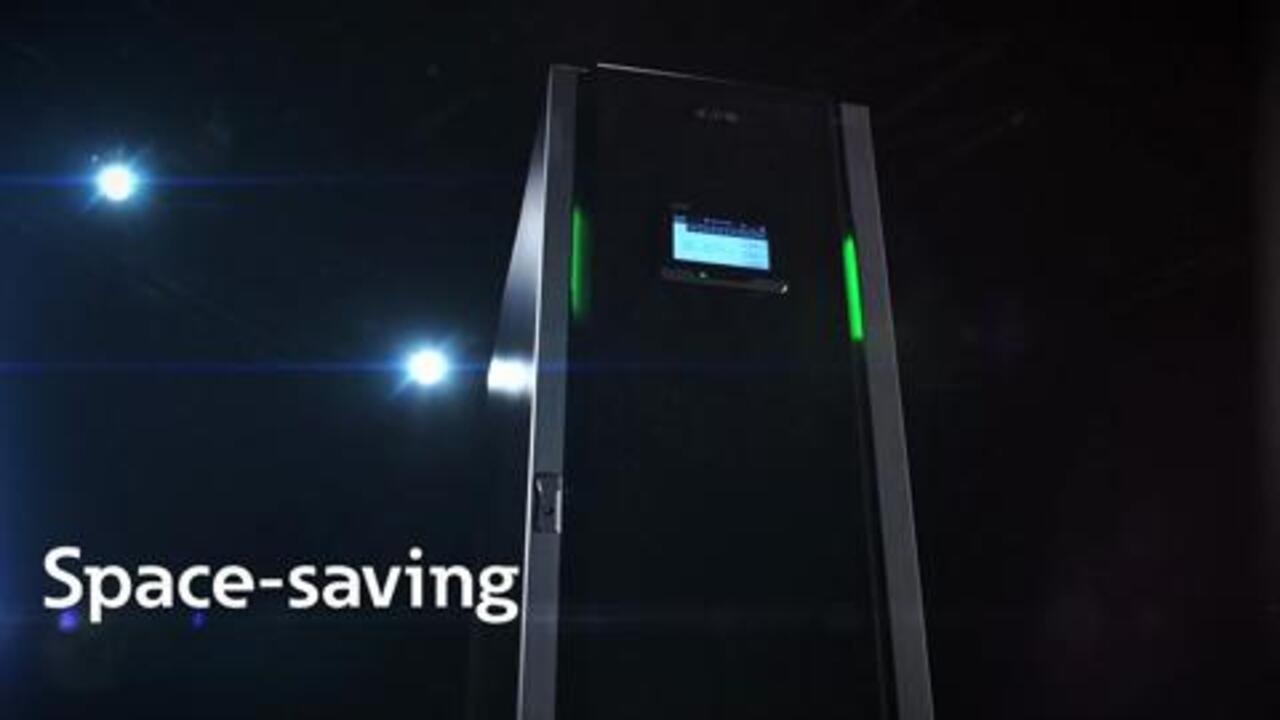

Eaton 93PM 20KW UPS, 480V In, 208/120V Out, 3 Battery Strings, Comms Included

VENDOR: EATON Mfg Part#: 9PA02N2229F40R2
1 2
Photo is for illustration purposes only. Actual product may be different.
$63,677.00
$63,677.00
Sale Sold out
MSRP: $98,647.00
Shipping calculated at checkout.
  • 20KW power output supports high-demand systems
  • 480V input, 208/120V output for infrastructure-grade compatibility
  • Tower form factor suitable for flexible deployment
  • Supports VRLA, lithium, AGM, wet, and gel battery types
  • Includes 3 battery strings for extended runtime
  • Pre-installed communication cards enable advanced monitoring

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers scalable, enterprise-grade power protection with 20KW output and multi-battery support
  • Integrated communication cards streamline remote monitoring and reduce management overhead
  • TAA compliance and U.S. manufacturing make it suitable for government and regulated sectors

Product Overview

Eaton 93PM 480VIN 208/120V OUT 20KW 3 STRINGS BATT, ALL COMM CARDS

Specifications

Product Overview
Manufacturer EATON
Model Eaton 93PM UPS
Manufacturer Part Number 9PA02N2229F40R2
Type Uninterruptible Power Supply (UPS)
Power Capacity 20 kW
Input Voltage 480V
Output Voltage 208/120V
Form Factor Tower
Battery Backup Configuration 3 Battery Strings
Battery Type VRLA
Battery Technology Valve Regulated Lead Acid (VRLA), Lithium-ion, AGM, Wet, Gel
Hot-Swappable Batteries Yes
Scalability Modular and Scalable Architecture
Redundancy N+1 Redundant
Output Power Factor 1.0
Efficiency Up to 97%
ECO Mode Efficiency Up to 99%
Topology Double Conversion (Online)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA, CE, IEC 62040-1, IEC 62040-2
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
Access Control Role-Based via UI and SNMP
Network Security Protocols HTTPS, SNMPv3, SSH
Event Logging Yes
Alert Notification Email, SNMP traps

Interfaces
Available Communication Slots All Communication Cards Included
Communication Ports USB, RS-232, Relay Contacts, Modbus RTU, Modbus TCP/IP, SNMP
Parallel Operation Ports Supported for Redundancy and Capacity Upgrade
Web Interface Yes (via optional Web/SNMP card)
Monitoring Software Compatibility Eaton Intelligent Power Manager (IPM)

Physical & Environmental
Dimensions (H x W x D) 77.2 x 15.1 x 43.3 inches
Weight 1322 lbs (599.7 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 55°C (-13°F to 131°F)
Relative Humidity 5% to 95% (non-condensing)
Cooling Method Forced Air, Redundant Fans
Noise Level <65 dBA at 1 meter

Cloud Management & Licensing
Cloud Management Platform Eaton Intelligent Power Manager (IPM) – VMware Ready & Citrix Ready
Centralized Management Yes
Licensing Required Optional for advanced features
Remote Monitoring Yes via Network Management Card
Integration Options Compatible with VMware vCenter, Microsoft SCVMM, Citrix XenCenter
