Eaton 93PM 40KW UPS, 480V In / 208/120V Out, 65KAIC, Tower Form, 4 Breaker MBS

VENDOR: EATON Mfg Part#: 9PA04N0225J40R2
1 1

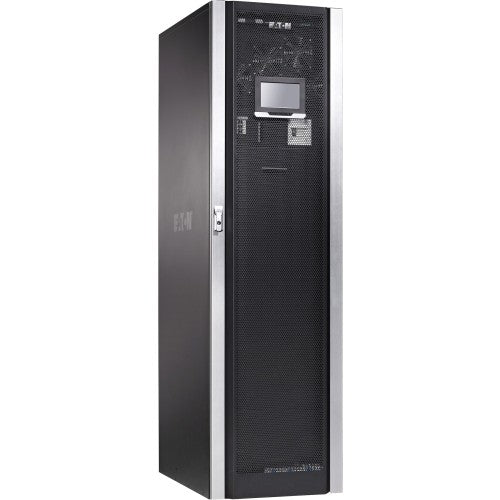

Photo is for illustration purposes only. Actual product may be different.
$62,272.00
$62,272.00
Sale Sold out
MSRP: $96,471.00
Shipping calculated at checkout.
  • UPS tower form factor with 40KW capacity and 5000W power output
  • 480V input / 208/120V output configuration for standard U.S. power infrastructure
  • Integrated lithium battery system for long life and reduced maintenance
  • 65KAIC short-circuit withstand rating for high resiliency
  • Includes four-breaker maintenance bypass switch (MBS) for uninterrupted service
  • TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides robust backup power with high 65KAIC protection, ideal for mission-critical installations.
  • Lithium battery design reduces long-term maintenance costs and improves power reliability.
  • TAA compliance ensures eligibility for government and public sector projects, enhancing procurement suitability.

Product Overview

Eaton 93PM 480V IN, 208/120V OUT, 40KW INDGW-X2, 65KAIC; 4 BREAKER MBS

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Form Factor Tower
Power Capacity 40 kW
Voltage Input 480V
Voltage Output 208/120V
Breaker Configuration 4 Breaker Maintenance Bypass Switch (MBS)
Short Circuit Current Rating (SCCR) 65 kAIC
Battery Type Lithium-ion
Hot Swappable Modules Yes
Efficiency Up to 97%
Display Type 7-inch Color Touchscreen LCD
Weight 1,750 lbs
Scalability Yes, scalable in 8 kW increments

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
UL Listed Yes (UL 1778)
CSA Certified Yes
FCC Compliance Part 15 Class A

Advanced Security Features
Remote Management Security TLS/SSL encryption, password protection
User Authentication Role-based access control
Event Logging Yes (local and remote logging)
Network Security Protocols SNMPv3, HTTPS, SSH

Interfaces
Network Interfaces 1 x Gigabit Ethernet (RJ-45), 2 x USB, 1 x RS-232
Monitoring Interface Eaton Intelligent Power Manager (IPM), LCD Display
Serial Ports 1 x RS-232
Modbus Support Yes (Modbus RTU & TCP)
Optional Cards Network-M2, Industrial Relay Card

Physical & Environmental
Width 22 inches
Depth 42 inches
Height 74 inches
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 55°C (-13°F to 131°F)
Relative Humidity 5% to 95%, non-condensing
Noise Level 60 dB at 1 meter
Cooling Method Forced air with redundant fans
Color Black/Gray

Cloud Management & Licensing
Cloud Monitoring Eaton PredictPulse Remote Monitoring
Management Tools Eaton Intelligent Power Manager (IPM), web UI, SNMP
Included Licenses Basic IPM license included
