Products Memory, Storage and Components Eaton 9PXM 12 Slot Chassis,...

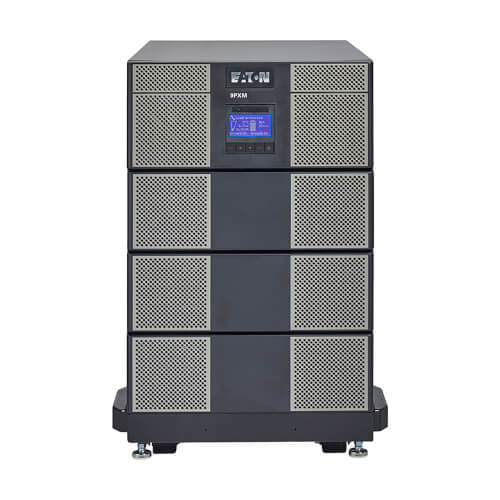

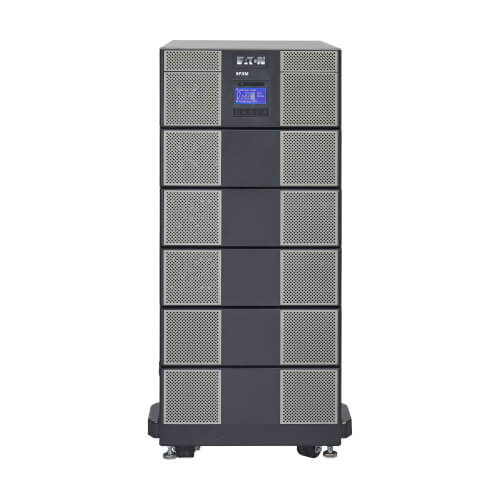

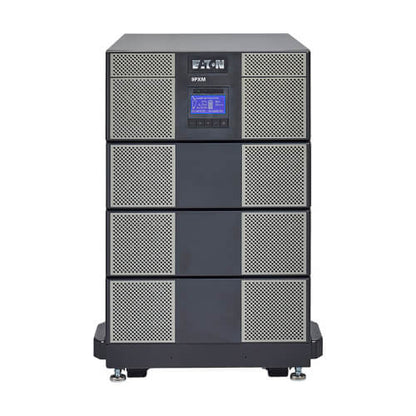

Eaton 9PXM 12 Slot Chassis, 4kVA, Receptacles Output

VENDOR: EATON Mfg Part#: 9PXM12BBAAA
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,958.00
$6,958.00
Sale Sold out
MSRP: $11,029.00
Shipping calculated at checkout.
  • 12 Slot modular chassis for scalable deployment
  • Supports 4kVA output capacity
  • Receptacle output for direct equipment connection
  • TAA compliant for government and enterprise use
  • Manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for mission-critical environments requiring modular power distribution
  • TAA compliance makes it suitable for government and federally contracted projects
  • Expandable 12-slot design allows for long-term infrastructure scalability

Product Overview

Eaton 9PXM 12 Slot Chassis, 4kVA, Receptacles Output

Specifications

Product Overview
Product Type Modular Online UPS Chassis
Model Eaton 9PXM 12 Slot Chassis
Manufacturer Part Number 9PXM12BBAAA
Form Factor Rackmount or Tower Convertible
Power Capacity 4 kVA
Scalable Power Capacity 4 to 20 kVA (modular)
Redundancy N+1 Redundant Capable with Additional Modules
Hot-Swappable Modules Yes
Battery Type Sealed Lead Acid (VRLA)
Typical Runtime at Full Load 8.5 minutes (with 1 battery module at 4 kVA)
Weight (without modules) 99 lb (45 kg)
Battery Slots Up to 12 Battery Modules
Power Module Slots Up to 5 Power Modules

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL, FCC Class A, RoHS Compliant

Advanced Security Features
Role-Based Access Control (RBAC) Yes, via Network Management Interface
Secure Communications HTTPS, SNMPv3, SSH supported with Network Card
Event Logging and Audit Trails Yes

Interfaces
Communication Interfaces USB, Serial, and Network (via optional network card)
Expansion Slots 1 x Communication Bay for optional Management Cards
Output Receptacles Configurable. Hardwired or via Power Distribution Modules
Input Connection Type Hardwired (208/240V or 120V depending on configuration)
Output Voltage 120/208V or 240V split-phase (Field Configurable)
Topology Double-conversion (Online)

Physical & Environmental
Height 17.3 in (439 mm)
Width 17.2 in (437 mm)
Depth 26.6 in (676 mm)
Mounting Options Rackmount (14U) or Tower
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -15° to 50°C (5° to 122°F)
Relative Humidity 5% to 95% non-condensing
Altitude Up to 3000m (10000 ft) at full power
Noise Level 58 dB at 1 meter

Cloud Management & Licensing
Cloud Monitoring Support Yes, with Eaton Gigabit Network Card and software
Management Software Intelligent Power Manager (IPM), Eaton Visual Power Manager
Remote Management Via SNMP/Web with optional Network Cards
Licensing Requirements IPM licenses required for advanced cloud features
