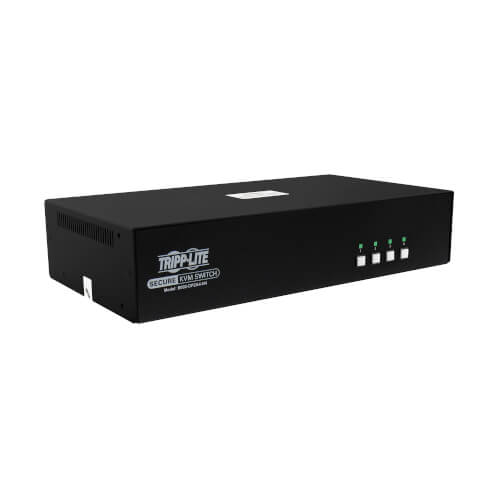

Eaton Tripp Lite 4-Port Dual Head HDMI Secure KVM Switch, 4K NIAP PP4.0

VENDOR: EATON Mfg Part#: B002-H2A4-N4 UPC#: 037332274373
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,799.00
$1,799.00
Sale Sold out
MSRP: $2,907.00
Shipping calculated at checkout.
  • 4-Port secure KVM switch supporting dual HDMI outputs
  • Complies with NIAP Protection Profile 4.0 for high-security applications
  • Supports UHD 4K resolution at 3840 x 2160 @ 60Hz
  • Integrated 3.5mm audio connector for each port
  • Includes international power head adapters (US, UK, EU, AU)
  • Compact footprint with 3-year limited warranty included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Meets NIAP PP4.0 certification, ensuring secure switching for classified and unclassified systems
  • Supports 4K video at 60Hz, delivering ultra-clear visuals for high-resolution display needs
  • TAA compliance and international power support make it ideal for regulated, global deployments

Product Overview

Secure KVM Switch, 4-Port, Dual Head, HDMI to HDMI, 4K, NIAP PP4.0, Audio, TAA - Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video - 3-year limited warranty

Specifications

Product Overview
Device Type KVM Switch
Model B002-H2A4-N4
Form Factor Desktop
Number of Connected Computers 4
Number of Monitors Supported 2 (Dual Head)
Maximum Resolution 3840 x 2160 @ 60Hz
Power Requirements 100-240V AC, 50/60 Hz, 1.3A (Input); 12V DC, 3A (Output)
Power Supply Type External power supply with NEMA 1-15P plug
Weight 2.9 lbs (1.32 kg)

Physical & Environmental
Width 6.85 cm
Depth 31.7 cm
Height 16.9 cm
Enclosure Color Black
Enclosure Type Metal
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 0% to 80% RH, non-condensing

Cloud Management & Licensing
Remote Management No (Local Only)
Licensing Required No

Interfaces
Console HDMI Ports 2 x HDMI (Female)
Console USB Ports 2 x USB Type A (Keyboard & Mouse)
Console Audio 1 x 3.5mm Stereo Audio (Female)
Computer HDMI Ports 8 x HDMI (Female)
Computer USB Ports 8 x USB Type B
Computer Audio 4 x 3.5mm Stereo Audio (Female)
KVM Port Count 4 Computers, 2 Monitors per Computer
Port Switching Method Front Panel Push Buttons
Keyboard/Mouse Emulation Yes

Compliance & Origin
TAA Compliance Yes
NIAP Certified Yes, NIAP Protection Profile 4.0 (PP4.0)
RoHS Compliance Yes
Certifications UL, FCC, CE
Country of Origin United States

Advanced Security Features
Security Classification Secure KVM
Security Features Isolated data channels; Unidirectional optical data diodes; Tamper-resistant housing
Data Protection No data leakage between ports; Non-reprogrammable firmware
Keyboard and Mouse Filtering Yes, Emulated USB with filtering
Firmware Protection Non-reprogrammable ROM; Secure firmware
