Eaton Tripp Lite HDMI over Cat6 Extender Kit, 4K 60Hz, 230 ft, TAA

VENDOR: EATON Mfg Part#: B127U-111-PHPH UPC#: 037332281470
1 3
Photo is for illustration purposes only. Actual product may be different.
$263.00
$263.00
Sale Sold out
MSRP: $425.00
Shipping calculated at checkout.
  • - Supports 4K video resolution at 60 Hz with HDR and 4:4:4 chroma subsampling
  • - Extends HDMI signal up to 230 ft (70.1 m) over Cat6 cable
  • - Includes HDMI (male), USB A (male), RJ45 (female), and Micro-USB B (female) connectors
  • - TAA compliant for government and institutional use
  • - Compact pigtail transmitter/receiver design with 1-ft cable length
  • - Covered by a 1-year limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Maintains high-quality 4K 60Hz video transmission across long distances up to 230 ft, ideal for AV installs and signage
  • - Supports multiple input and output connectors for broad compatibility in commercial environments
  • - TAA compliance and Taiwan-based manufacturing ensure reliability and suitability for regulated markets

Product Overview

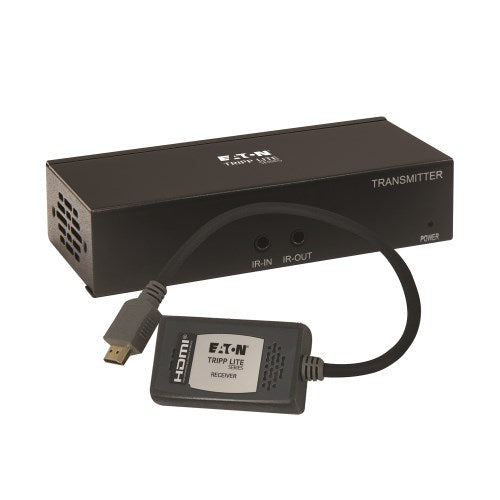

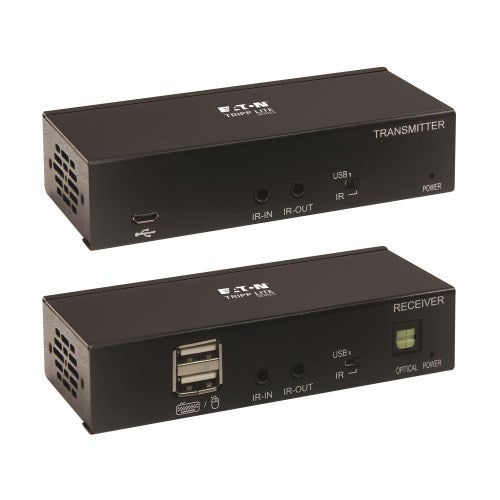

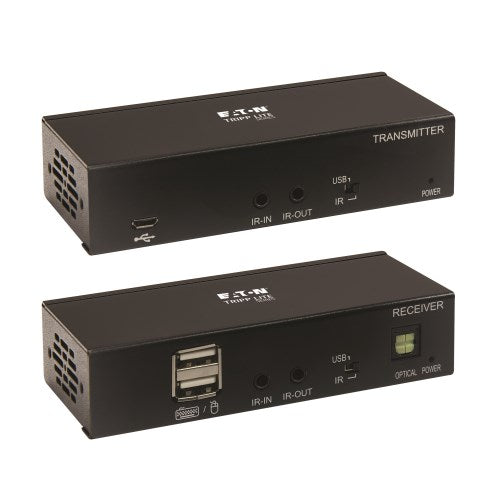

The Eaton Tripp Lite Series HDMI over Cat6 Extender Kit (Model B127U-111-PHPH) allows 4K resolution at 60 Hz to be transmitted reliably over 230 feet (70.1 meters) using Cat6 cable. The pigtail transmitter and receiver design minimizes bulk and supports multiple connectors including HDMI, USB A, RJ45, and Micro-USB B. This TAA-compliant kit is ideal for high-end commercial AV applications and is backed by a 1-year limited warranty.

Specifications

Product Overview
Product Type HDMI over Cat6 Extender Kit
Model B127U-111-PHPH
Brand Tripp Lite (Eaton)
Form Factor Pigtail Transmitter/Receiver
Maximum Transmission Distance 230 ft (70.1 m)
Supported Resolution 4K @ 60 Hz (3840 x 2160)
HDR Support Yes
Chroma Subsampling 4:4:4
Power Supply External via Micro-USB B
Service & Support 1-year limited warranty

Physical & Environmental
Color Gray
Unit Dimensions (Transmitter) 2.36 x 1.06 x 0.67 in (approx)
Unit Dimensions (Receiver) 2.36 x 1.06 x 0.67 in (approx)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Operating Humidity 10% to 85% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing

Cloud Management & Licensing
Cloud Management

Interfaces
Left Connector Type HDMI
Right Connector Type USB A
Left Connector Gender Male
Right Connector Gender Male
Side A - Connector 1 HDMI (Male)
Side A - Connector 2 USB A (Male)
Side A - Connector 3 RJ45 (Female)
Side A - Connector 4 HDMI (Female)
Side A - Connector 5 Micro-USB B (Female)
Side B - Connector 1 HDMI (Male)
Side B - Connector 2 USB A (Male)
Side B - Connector 3 Micro-USB B (Female)
Side B - Connector 4 (2) RJ45 (Female)
Cable Type Pigtail Video
Length 1 ft
Data Transfer Rate 18 Gbps

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Compliance Standards HDCP 2.2, RoHS
Certifications CE, FCC, REACH, WEEE
UPC 037332281470

Advanced Security Features
Content Protection HDCP 2.2 compliant
