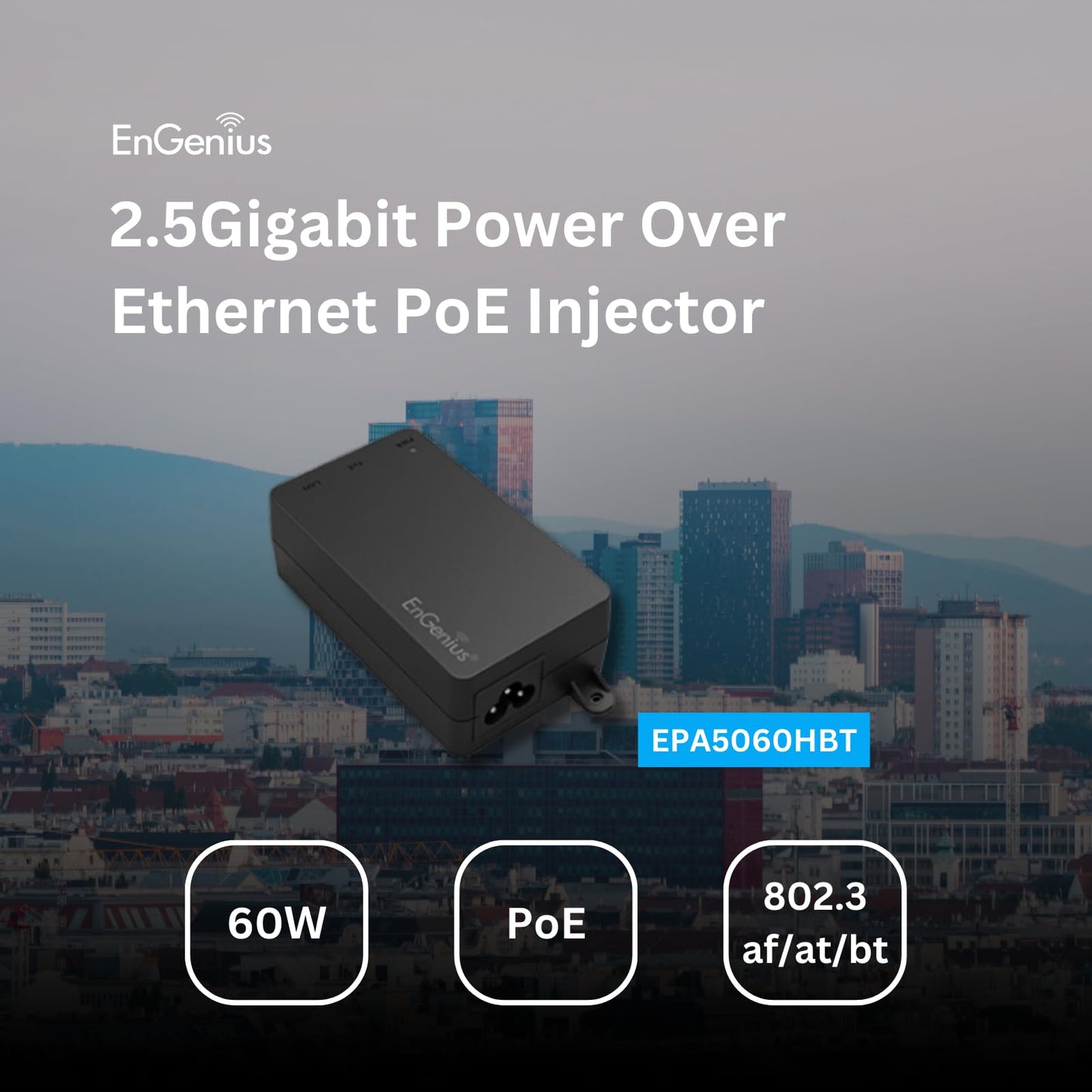

ENGENIUS EPA5060HBT 60W PoE++ 2.5Gb Single-Port Adapter

VENDOR: ENGENIUS Mfg Part#: EPA5060HBT UPC#: 655216010871
1 4
Photo is for illustration purposes only. Actual product may be different.
$56.00
$56.00
Sale Sold out
MSRP: $72.00
Shipping calculated at checkout.
  • - Supplies up to 60 watts of power via PoE++ standard
  • - Supports high-speed 2.5Gbps data transfer rate
  • - Compatible with IEEE 802.3af/at/bt
  • - Allows power and data transmission over a single Ethernet cable up to 328 ft (100 m)
  • - Compact design: 2.27 x 3.9 x 1.3 inches
  • - Includes one RJ-45 port supporting 10/100/1000Mb and 2.5Gb data input

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers up to 60W of PoE++ power and 2.5Gb data for high-performance network devices
  • Reduces infrastructure complexity and costs by transmitting power and data over a single Ethernet cable
  • TAA compliance and compact design make it suitable for government and enterprise environments

Product Overview

The EnGenius EPA5060HBT is a robust single-port PoE++ adapter designed to supply up to 60 watts of power and 2.5Gbps data through a single Ethernet cable. Compatible with IEEE 802.3af/at/bt standards, it’s engineered for use with high-performance devices such as access points, VoIP phones, or IP cameras at distances up to 328 feet. The RJ-45 interface supports diverse Ethernet speeds including 10/100/1000Mb and 2.5Gb, enhancing compatibility with existing network setups. It is compact (2.27" x 3.9" x 1.3"), TAA-compliant, and backed by a 1-year warranty, making it a fitting solution for both enterprise and government buyers looking for streamlined, cost-efficient network upgrades.

Specifications

Product Overview
Product Type PoE Adapter
Form Factor External
Power Output 60 Watts
Power Supply Type External Power Adapter
Voltage Input Range 100–240V AC
Frequency Range 50/60 Hz
Weight 0.41 lbs (0.187 kg)
Mounting Options Desktop, Wall Mount
Warranty 1 year

Physical & Environmental
Width 2.27 inch (57.66 mm)
Depth 3.9 inch (99 mm)
Height 1.3 inch (33 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Passive
Enclosure Material Plastic

Cloud Management & Licensing
Management Interface Unmanaged (Plug-and-Play)
Cloud Management Platform
Licensing Requirements None

Interfaces
Ethernet Ports 2 x RJ-45 (1x Data Input, 1x Data + Power Output)
Supported Ethernet Speeds 10/100/1000Mbps, 2.5Gbps
PoE Output Port 1 x RJ-45 (PoE++)
PoE Input Port 1 x RJ-45 (Data Only)
Data Transfer Rate 2.5 Gbps
PoE Standard IEEE 802.3af/at/bt
Maximum Distance 328 feet (100 meters)
Pin Assignment & Polarity 4/5 (+), 7/8 (–); 3/6 (+), 1/2 (–)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC Part 15 Class B, CE, UL, RoHS
Safety Compliance IEC 62368-1
EMI/EMC EN55032, EN55024

Advanced Security Features
Surge Protection 6KV surge protection
Short Circuit Protection Yes
Over Current Protection Yes
Over Voltage Protection Yes
