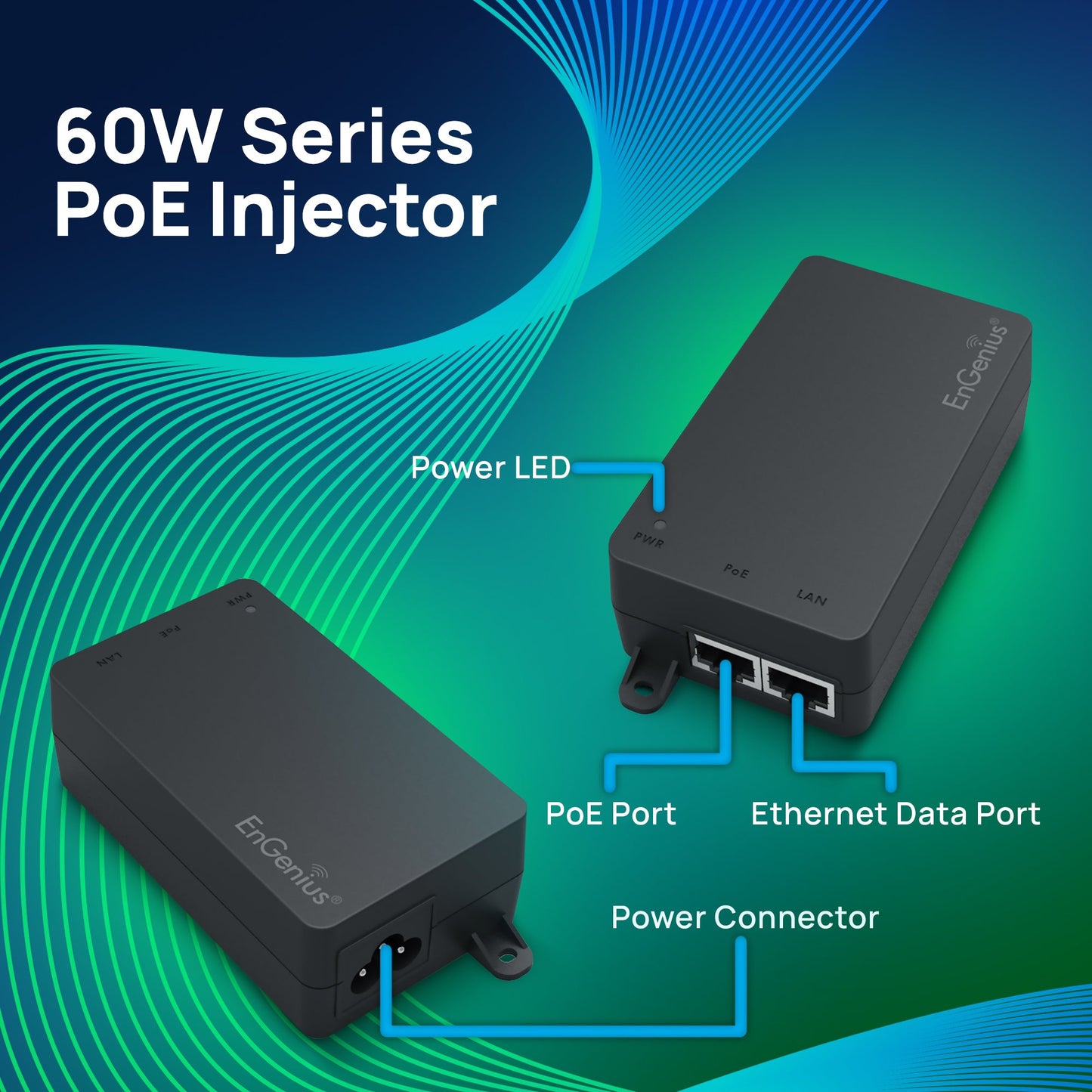

ENGENIUS EPA5060XBT 60W PoE++ Adapter with 10G Data Support

VENDOR: ENGENIUS Mfg Part#: EPA5060XBT UPC#: 655216010888
1 5
Photo is for illustration purposes only. Actual product may be different.
$61.00
$61.00
Sale Sold out
MSRP: $84.00
Shipping calculated at checkout.
  • Supports up to 60W of PoE++ power over Ethernet
  • 10Gbps data transfer over RJ-45 with 10/100/1000Mb, 2.5Gb, 5Gb compatibility
  • Compliant with IEEE 802.3af/at/bt standards
  • 100-meter (328 ft) data and power delivery range
  • Compact design: 2.27" W x 3.9" D x 1.3" H
  • TAA-compliant and made in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high output power (60W) and 10G data—ideal for powering next-gen access points and cameras
  • Universal IEEE 802.3af/at/bt compliance ensures wide device compatibility
  • Combines data and power into a single Ethernet run—reducing installation cost and complexity

Product Overview

The EnGenius EPA5060XBT is a professional-grade single-port PoE++ adapter supplying up to 60 watts of power along with 10G Ethernet support over a single cable. Built to IEEE 802.3af/at/bt standards, it is compatible with a wide range of powered network devices. This compact unit supports distances up to 100 meters, integrates seamlessly with high-performance systems, and fits within tight installation spaces. With TAA compliance and a one-year warranty, it is suitable for enterprise and institutional deployments across critical infrastructures.

Specifications

Product Overview
Product Type PoE Adapter
Form Factor Desktop
Power Requirements AC 100–240V, 50/60Hz
Power Consumption Max. 65W
PoE Output Power Up to 60W
PoE Standards Supported IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++)
Supported PoE Mode Mode A and Mode B
Warranty 1 Year
What's Included 1x PoE Adapter

Physical & Environmental
Width 2.27 Inch
Depth 3.9 Inch
Height 1.3 Inch
Weight 0.39 lbs (0.18 kg)
Enclosure Type Plastic
Mounting Options Wall mount, Desktop
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 20% – 85% non-condensing
Storage Humidity 10% – 90% non-condensing

Cloud Management & Licensing
Cloud Management No
Standalone Operation Yes
Licensing Requirements None

Interfaces
Input Port Type RJ-45 (10/100/1000 Mb, 2.5Gb/5Gb/10Gb data input)
Output Port Type RJ-45 (10/100/1000 Mb PoE output)
Data Transfer Rate 10 Gbps
Number of Ports 2 (1 data input, 1 data + PoE output)
Ethernet Compatibility 10/100/1000 Mbps, 2.5G/5G/10G Base-T
Maximum Cable Distance 100 meters / 328 feet

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC Class B, CE, IC, UL, RoHS
Compliance Standards IEEE 802.3af/at/bt

Advanced Security Features
Surge Protection 6KV Surge Protection
Overload Protection Yes
Short Circuit Protection Yes
