| Product Type | PoE++ Adapter |
| Form Factor | External |
| Power Output | 90 Watts |
| Power Input | 100–240V AC, 50/60Hz |
| Voltage Output | 54V DC |
| Max Output Current | 1.67A |
| PoE Standard | IEEE 802.3af/at/bt |
| Weight | 0.66 lb (300 g) |
| Mounting Type | Desktop/Wall Mount |

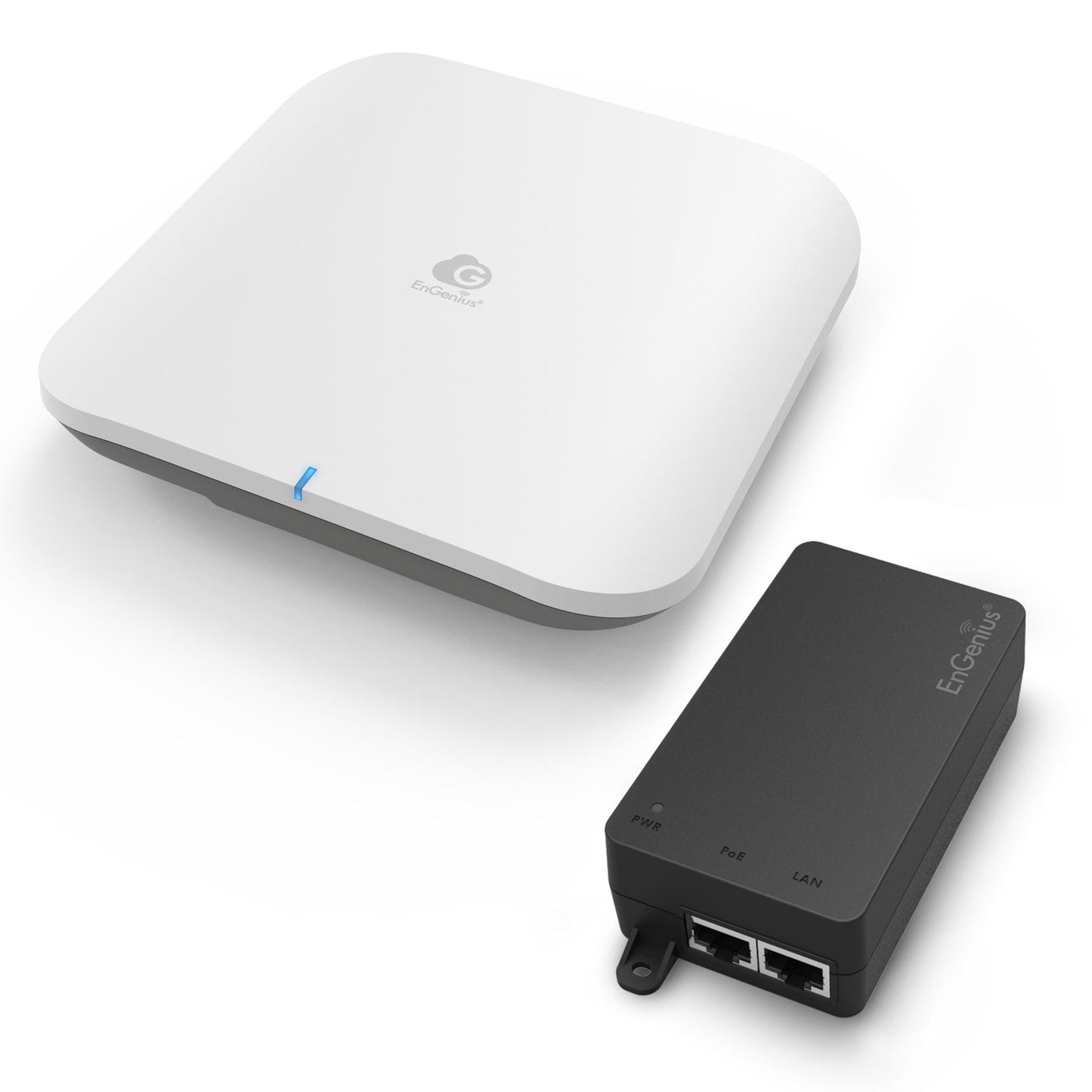

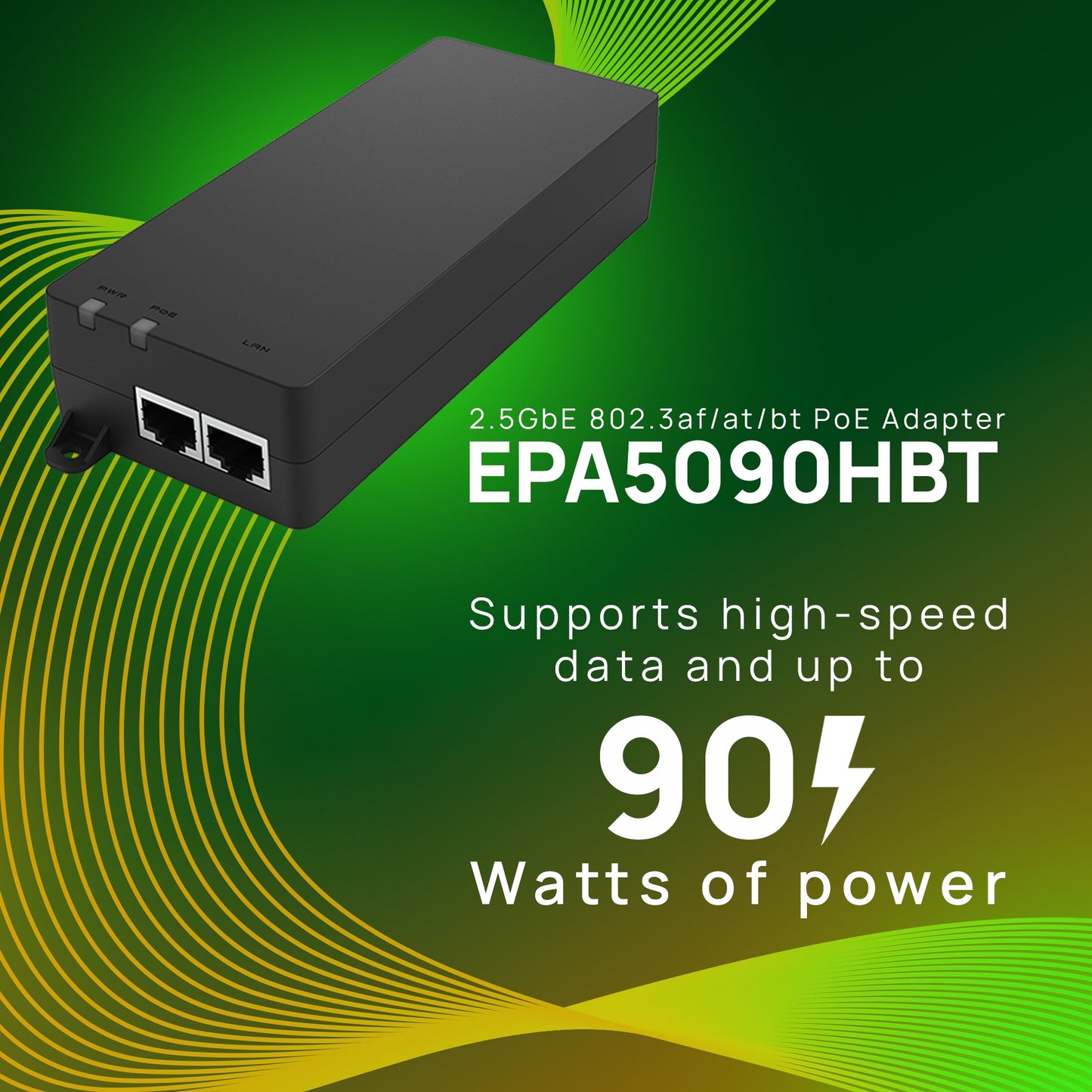

ENGENIUS EPA5090HBT 90W PoE++ Adapter with 2.5Gb Data Input
Photo is for illustration purposes only. Actual product may be different.
Regular price
$108.00
Regular price
Sale price
$108.00
Unit price
per
MSRP: $154.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Delivers up to 90W of power over Ethernet (PoE++)
- Supports 2.5 Gbps data transfer rate
- IEEE 802.3af/at/bt compliant for wide compatibility
- Compatible with 10/100/1000Mb and 2.5Gb RJ-45 input
- Maximum Ethernet cable reach of 328 feet (100 meters)
- TAA compliant; manufactured in Taiwan
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Provides high power (90W) and high-speed data (2.5Gbps) over a single Ethernet cable, reducing infrastructure cost.
- IEEE 802.3af/at/bt compliance ensures compatibility with a wide array of enterprise-grade devices.
- TAA-compliant device manufactured in Taiwan, suitable for government and enterprise procurement requirements.
Product Overview

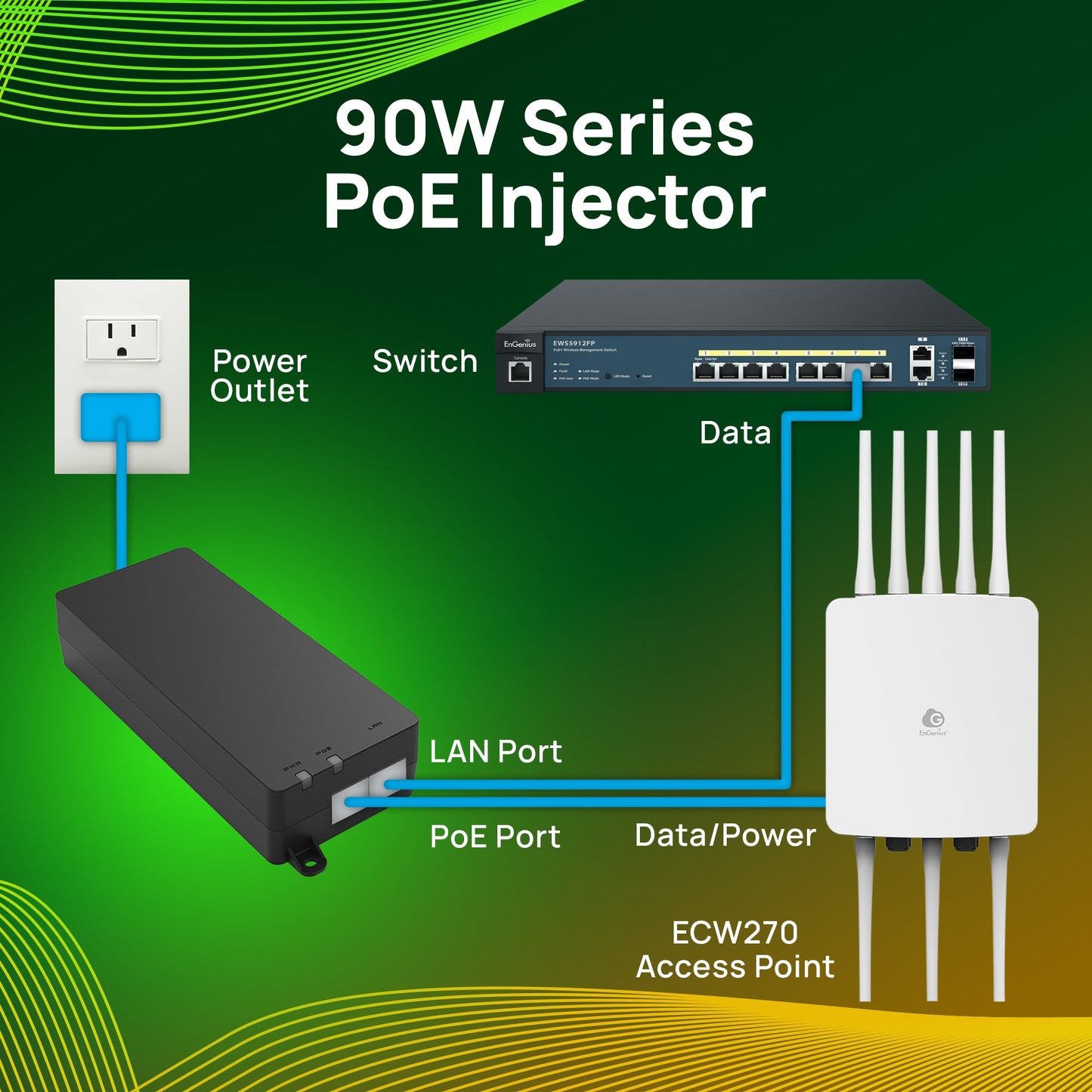

The ENGENIUS EPA5090HBT is a high-performance PoE++ adapter delivering up to 90W of power and enabling 2.5 Gbps data transfer over standard Ethernet. With IEEE 802.3af/at/bt compliance and a 328 ft cable reach, it supports high-load devices like PTZ cameras and access points. Its compact form factor and TAA compliance make it ideal for commercial and institutional deployments. Suitably built for efficiency and scalability, this adapter reduces installation cost by combining data and power on a single cable.
Specifications
Product Overview
Physical & Environmental
| Width | 2.56 in (65 mm) |
| Depth | 5.9 in (150 mm) |
| Height | 1.34 in (34 mm) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -40°F to 176°F (-40°C to 80°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Cooling | Fanless design (passive cooling) |
| Enclosure Type | Plastic Housing |
Cloud Management & Licensing
| Management Interface | Unmanaged (Plug-and-Play) |
| Cloud Management | Not supported |
| Licensing Requirements | None |
Interfaces
| Data Input Interface | 1 x RJ45 2.5Gb Ethernet |
| PoE Output Interface | 1 x RJ45 Gigabit Ethernet with PoE++ |
| Data Rates Supported | 10/100/1000 Mbps, 2.5 Gbps |
| Port Count | 2 ports (1 input, 1 output) |
| Maximum Cable Distance | 328 ft (100 meters) |
| Cable Type Supported | Cat5e or higher UTP |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC Part 15 Class B, CE, ICES-003, UL, RoHS |
| Emissions Compliance | FCC, CE |
| Safety Compliance | UL Listed |
Advanced Security Features
| Surge Protection | 6kV Surge Protection |
| Short-circuit Protection | Yes |
| Over-voltage Protection | Yes |
| Over-current Protection | Yes |
