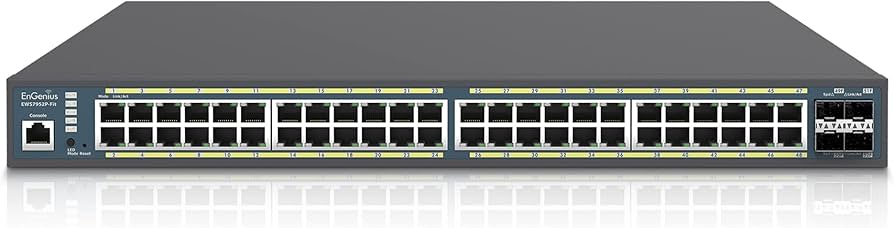

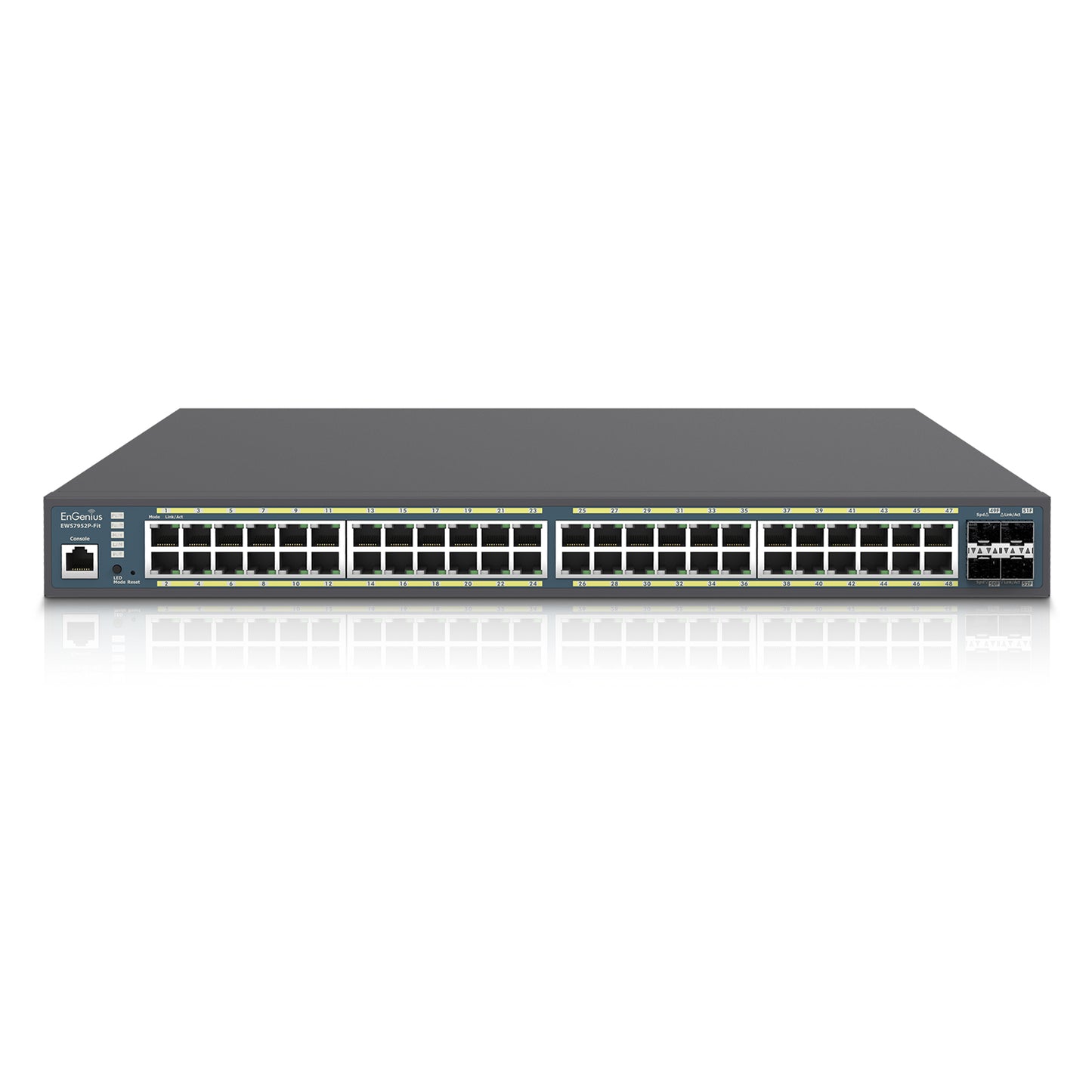

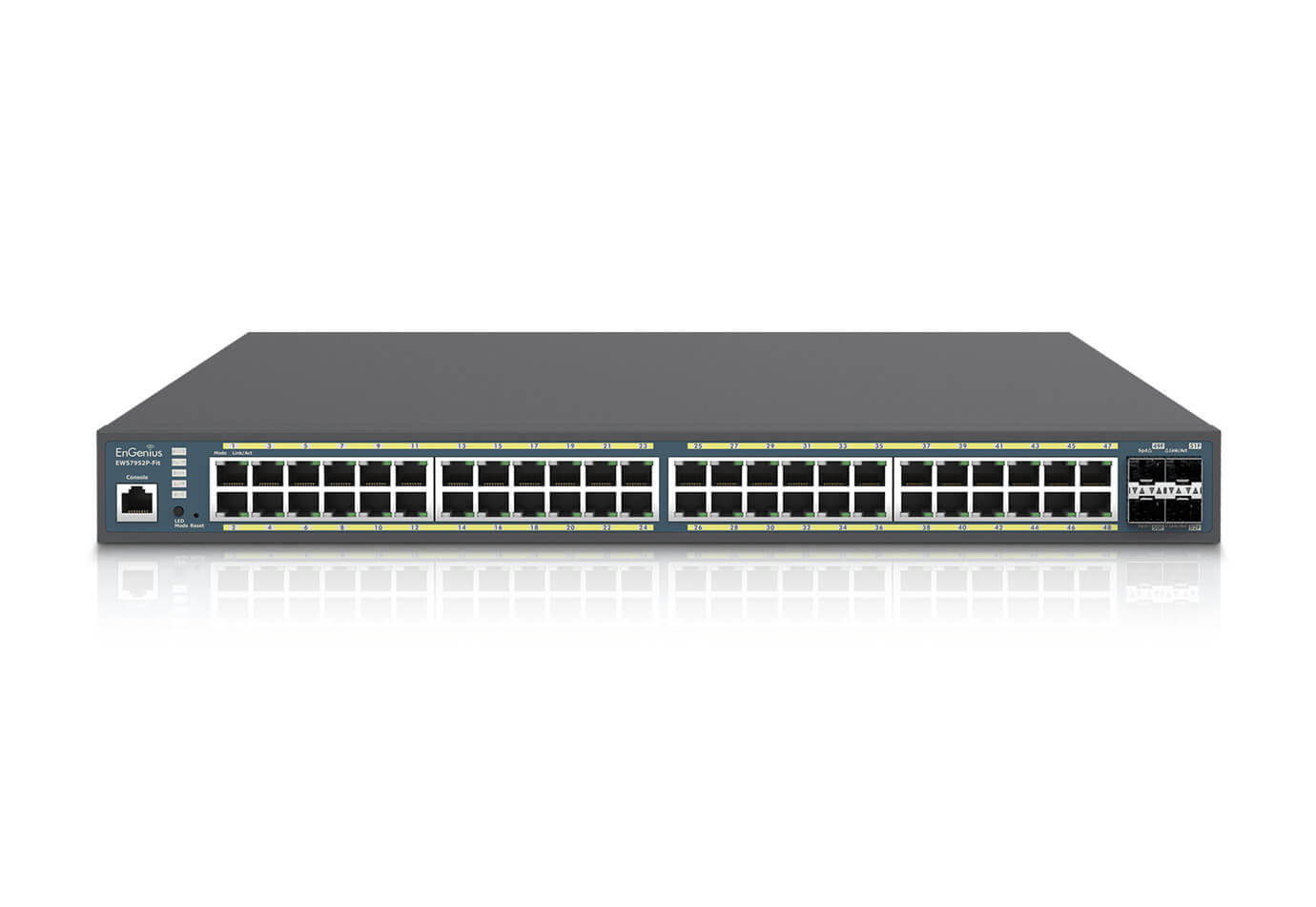

EnGenius Fit EWS7952P-FIT 48-Port Gigabit PoE+ L2+ Switch with 410W Budget

VENDOR: ENGENIUS Mfg Part#: EWS7952P-FIT UPC#: 655216011038
1 5
Photo is for illustration purposes only. Actual product may be different.
$723.00
$723.00
Sale Sold out
MSRP: $823.00
Shipping calculated at checkout.
  • 48 10/100/1000 Mbps PoE+ Ethernet ports with 410W power budget
  • 4 dedicated SFP uplink ports for network backbone integration
  • Layer 2+ smart management with cloud or on-premises options
  • 256 MB RAM and 32 MB flash memory for efficient network processing
  • Compact 1.73-inch height, TAA compliant, and built in Taiwan
  • Includes 1-year manufacturer service and support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density PoE deployments with 410W power across 48 ports, ideal for IP surveillance or VoIP environments
  • Flexible management via cloud or on-premises controller allows refined control for varying IT infrastructure needs
  • Includes four SFP ports and smart Layer 2+ features for scalable, enterprise-level switching performance

Product Overview

The EnGenius EWS7952P-FIT is a Layer 2+ PoE+ switch with 48 Gigabit Ethernet ports and a 410W PoE budget, designed for enterprise network environments. It includes 4 SFP uplink ports for flexible network expansion. Supporting cloud and on-premises management, it adapts to various IT environments. The switch is equipped with 256 MB RAM, 32 MB flash memory, and a fanless, compact design to fit into standard racks. TAA compliance and a 1-year support plan enhance reliability and deployment assurance.

Specifications

Product Overview
Product Type Layer 2+ Managed Gigabit PoE+ Switch
Form Factor Rack-mountable (1U)
Weight 3.86 kg (8.51 lbs)
Power Requirements 100–240V AC, 50/60 Hz
PoE Budget 410 Watts
RAM Capacity 256 MB
Flash Memory 32 MB

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, RoHS
Safety Standards EN 60950-1

Advanced Security Features
Access Control Lists IPv4/IPv6 ACLs
Port Security Yes
DHCP Snooping Yes
802.1X Authentication Yes
Storm Control Broadcast/Multicast/Unknown Unicast
DoS Attack Protection Yes
IP Source Guard Yes
Loop Protection Yes

Interfaces
Total Ports 52
10/100/1000BASE-T Ports 48
SFP Uplink Ports 4
Port Transmission Speed 10/100/1000 Mbps
Switching Capacity 104 Gbps
Forwarding Rate 77.38 Mpps
Status LEDs Power, Link/Activity, PoE
MAC Address Table Size 16K
Jumbo Frame Support Yes (up to 10KB)

Physical & Environmental
Dimensions (W x D x H) 17.32 x 12.20 x 1.73 in
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Operating Humidity 10%–90% (non-condensing)
Storage Humidity 5%–90% (non-condensing)
Cooling Type Fanless
Mounting Type Rack-mount with included brackets
Chassis Type Metal

Cloud Management & Licensing
Management Interface EnGenius FitXpress Cloud, EnGenius FitController (on-premises)
Cloud Licensing Requirements No license fees (cloud-managed option included)
Management Features Web GUI, CLI, SNMP v1/v2c/v3, RMON, DHCP Server, Port Mirroring
Firmware Upgrade Web-based and cloud upgrade supported
QoS Support Yes – 802.1p, DSCP, CoS
