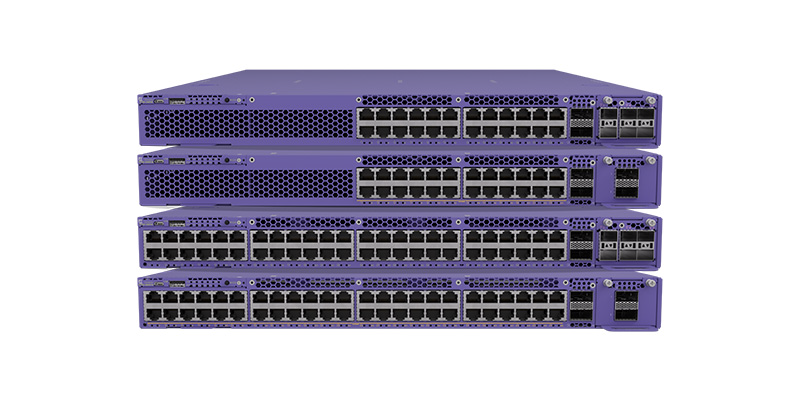

Extreme 7520-48XT 48-Port Switch, Front-Back Airflow, Dual AC, 6 Fans

VENDOR: EXTREME NETWORK INC Mfg Part#: 7520-48XT-6C-AC-F UPC#: 644728054398
1 4
Photo is for illustration purposes only. Actual product may be different.
$35,121.00
$35,121.00
Sale Sold out
MSRP: $50,546.00
Shipping calculated at checkout.
  • 48x 10/1G copper ports and 6x 100/40G fiber ports for scalable connectivity
  • 100 Gbps total data transfer rate for high-throughput applications
  • Includes two AC power supplies and six fans for redundancy and thermal control
  • Front-to-back airflow design for efficient data center cooling
  • Supports Gigabit Ethernet protocol for enterprise networking
  • Ships with 4-post rack mount kit for streamlined deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides high-speed copper and fiber connectivity ideal for enterprise and data center core layers
  • Redundant power supplies and fans enhance system uptime and hardware resilience
  • TAA compliant and manufactured in Taiwan, supporting procurement in regulated environments

Product Overview

Extreme 7520-48XT Switch with front-back airflow Ships with two AC power supplies six fans one 4-post rack mount kit Supports 48x10/1G copper ports and 6x100/40G fiber ports

Specifications

Product Overview
Product Type Layer 3 Managed Ethernet Switch
Model Number 7520-48XT-6C-AC-F
Form Factor 1U Rack-mountable
Power Supply Dual Hot-swappable AC Power Supplies Included
Cooling 6 Field-replaceable Fans (Front-to-Back Airflow)
Rack Mount Kit 4-post Rack Mount Kit Included
Weight 9.52 kg (21 lbs)
Power Consumption Max 350W
Switching Capacity 2.16 Tbps (Full Duplex)
Forwarding Rate 1,428 Mpps

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, cUL, CB, CE, FCC Class A, VCCI, BSMI, CCC
RoHS Compliance Yes
MTBF > 500,000 hours

Advanced Security Features
Access Control 802.1X, MAC-based, Web-based Authentication
Network Security DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, DoS Protection
Port Security Yes, dynamic and static
RADIUS/TACACS+ Support Yes
Secure Management SSHv2, HTTPS, SNMPv3

Interfaces
10G/1GBASE-T Ports 48 × 10G/1G Copper Ports (RJ-45)
40G/100G Uplink Ports 6 × 100G/40G QSFP28 Fiber Ports
Management Ports 1 × RJ-45 Serial Console Port, 1 × USB Port, 1 × 10/100/1000BASE-T Management Port
Aggregate Bandwidth Up to 2.16 Tbps
MAC Address Table Size 128K Entries
Packet Buffer Memory 32 MB
Latency (64-byte packets) < 1 μs
Jumbo Frame Support Yes, up to 9216 bytes

Physical & Environmental
Dimensions (W × D × H) 44.2 × 48.1 × 4.4 cm (17.4 × 18.9 × 1.73 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing
Acoustic Noise <58 dB
Airflow Direction Front-to-Back

Cloud Management & Licensing
Management Interface ExtremeCloud™, ExtremeXOS CLI, SNMP, HTTP/HTTPS, SSH
Licensing Model Base functionality included, additional features via license
Software Features Policy-based Automation, Fabric Attach, Layer 2/3 Switching, Routing (IPv4/IPv6)
Remote Management Supported via ExtremeCloud IQ
