Extreme 7520-48Y Switch, 48x25G & 8x100G with Rack Mount Kit

VENDOR: EXTREME NETWORK INC Mfg Part#: 7520-48Y-8C UPC#: 644728054336
1 3

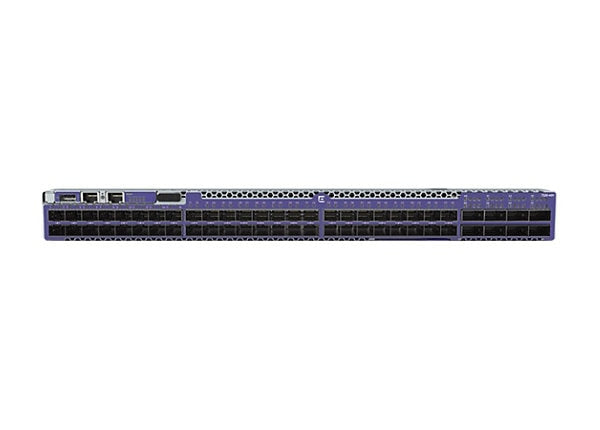

Photo is for illustration purposes only. Actual product may be different.
$30,932.00
$30,932.00
Sale Sold out
MSRP: $44,517.00
Shipping calculated at checkout.
  • Supports 48x25/10/1G and 8x100/40G Ethernet ports
  • Data transfer rate of up to 100 Gbps for high-speed networking
  • Modular design with two empty power supply slots
  • Expandable cooling with six empty fan module slots
  • Gigabit Ethernet protocol support
  • Includes 4-post rack mount kit for standard installation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High-density port configuration accommodates mixed-speed environments and future scalability.
  • Modular power and cooling design provides customization for mission-critical reliability.
  • TAA-compliant manufacturing and Taiwan origin support government and enterprise procurements.

Product Overview

Extreme 7520-48Y Switch with two empty power supply slots six empty fan slots Ships with one 4-post rack mount kit Supports 48x25/10/1G and 8x100/40G ports

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Extreme 7520-48Y
Form Factor 1U Rack-mountable
Included Accessories 1x 4-post rack mount kit
Power Supply Bays 2 (empty)
Fan Bays 6 (empty)
Weight 10.48 lbs (4.76 kg)
Power Consumption (Max) 180 Watts
Redundancy Support for redundant PSU and fans

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin TAIWAN
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, cUL, CB, CE, FCC, VCCI, CCC
EMI Standards EN55032 Class A, EN55024

Advanced Security Features
Access Control 802.1X, RADIUS, TACACS+
Port Security Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Storm Control Yes
Secure Management SSH, HTTPS, SNMPv3

Interfaces
Total Ethernet Ports 56
Port Configuration 48 x 25GbE SFP28 + 8 x 100GbE QSFP28
Port Speed (48 SFP28) 10/25 Gbps
Port Speed (8 QSFP28) 40/100 Gbps
Port Type SFP28 and QSFP28
Switching Capacity 4.0 Tbps
Forwarding Rate 2.97 Bpps (billion packets per second)
MAC Address Table Size 128K entries
Jumbo Frame Support Yes, up to 9216 bytes

Physical & Environmental
Dimensions (W x D x H) 17.32 x 19.69 x 1.72 in (440 x 500 x 43.7 mm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)
Noise Level 63.5 dB max (with fans installed)

Cloud Management & Licensing
Management Interface ExtremeCloud IQ, CLI, SNMP v1/v2/v3, Web UI
License Type Requires separate software license for advanced features
Out-of-Band Management 1 x 10/100/1000 Ethernet (RJ-45)
Console Port 1 x RJ-45 Serial Console
