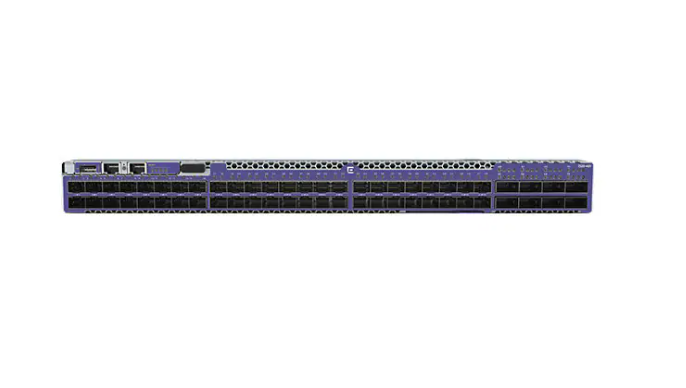

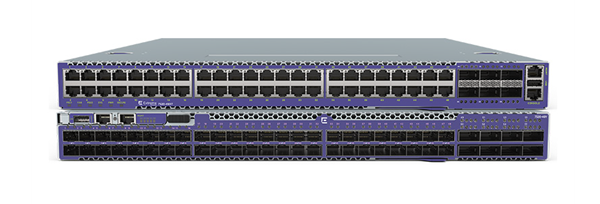

Extreme 7520-48YE 48x25G Switch with MACsec & 8x100G Ports

VENDOR: EXTREME NETWORK INC Mfg Part#: 7520-48YE-8CE-AC-R
1 3
Photo is for illustration purposes only. Actual product may be different.
$38,536.00
$38,536.00
Sale Sold out
MSRP: $55,461.00
Shipping calculated at checkout.
  • 48 x 25/10G SFP28 ports with MACsec support
  • 8 x 100/40G uplink ports with MACsec
  • Dual AC power supplies included for redundancy
  • Six integrated fans for optimized cooling
  • Back-to-front airflow design for data center compliance
  • TAA-compliant, manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables secure, high-bandwidth networking with MACsec on all access and uplink ports.
  • Includes redundant power and cooling components, minimizing downtime risk in critical environments.
  • Optimized for data centers with back-to-front airflow and full rack-mount inclusions for easy integration.

Product Overview

Extreme 7520-48YE Switch with back-front airflow Ships with two AC power supplies six fans one 4-post rack mount kit Supports 48x25/10G with MACsec and 8x100/40G ports with MACsec

Specifications

Product Overview
Product Type Layer 3 Managed Ethernet Switch
Model Extreme 7520-48YE
Form Factor 1U Rack-mountable
Airflow Direction Back-to-front
Power Supplies Included 2x Hot-swappable AC Power Supplies
Cooling Fans 6x Hot-swappable Fans
Rack Mount Kit 4-post rack mount kit included
Weight 10.5 kg (23.1 lbs)
Power Supply Type Internal dual redundant AC
Max Power Consumption 420 Watts
Hot Swappable Components Power supplies and fans

Physical & Environmental
Dimensions (H x W x D) 43.2 x 438 x 535 mm (1.7 x 17.2 x 21.1 inches)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing
Acoustic Noise 64 dB at 25°C ambient
MTBF 450,000 hours
Cooling Type Fan-based

Cloud Management & Licensing
Management Platform ExtremeCloud IQ, CLI, SNMP, Web GUI
Licensing Model Feature based (Advanced licensing enabled separately)
Zero Touch Provisioning Yes
Out-of-Band Management 1x RJ-45 Ethernet management port
USB Ports 1x USB Type A for file transfer

Interfaces
Total Ethernet Ports 56
25G SFP28 Ports 48x 25GbE (SFP28), backward compatible with 10GbE
100G QSFP28 Ports 8x 100GbE (QSFP28), backward compatible with 40GbE
MACsec Support Yes on all 25G and 100G ports
Switching Capacity 4.0 Tbps
Forwarding Rate 3,000 Mpps
Latency <1 µs
Packet Buffer Size 32 MB
Jumbo Frame Support Yes, up to 9216 bytes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
FCC Compliance Class A
Safety Certifications UL, cUL, CB
EMI/EMC Certifications EN55032, CISPR32, VCCI, CCC
WEEE Compliance Yes

Advanced Security Features
MACsec Encryption IEEE 802.1AE supported on all ports
Access Control Lists (ACLs) Yes
802.1X Network Access Control Yes
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes
IP Source Guard Yes
Secure Management Interfaces HTTPS, SSHv2, SNMPv3
