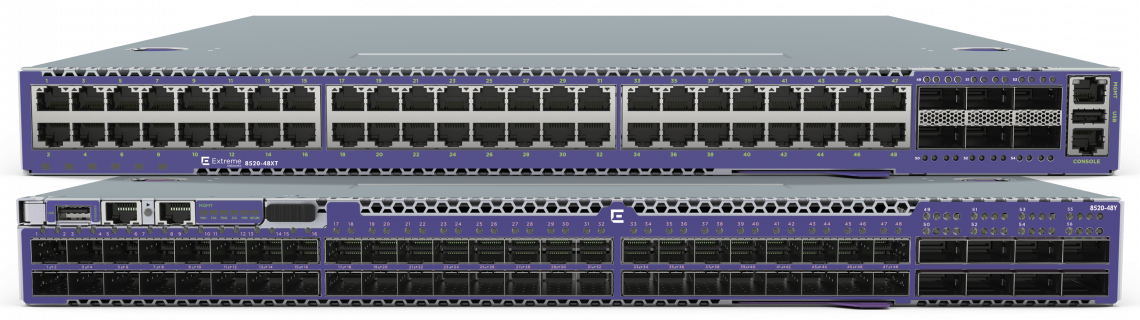

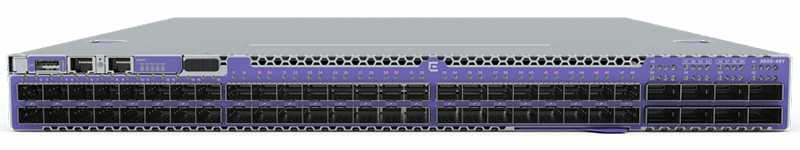

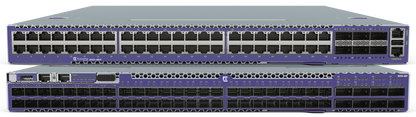

Extreme 8520-48Y 48-Port 25GbE Switch with 8x100GbE Uplinks

VENDOR: EXTREME NETWORK INC Mfg Part#: 8520-48Y-8C UPC#: 644728053834
1 2
Photo is for illustration purposes only. Actual product may be different.
$30,451.00
$30,451.00
Sale Sold out
MSRP: $43,826.00
Shipping calculated at checkout.
  • 48 SFP28 ports supporting 1/10/25GbE connectivity
  • 8 uplink ports for 100/40GbE performance
  • 16 GB RAM for enhanced switching performance
  • Two empty power supply slots for redundancy
  • Six empty fan slots for customizable airflow and thermal management
  • Compact 1U form factor with 4-post rack mount kit included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density 25GbE access and 100GbE uplinks ideal for modern data centers.
  • Modular build with empty power and fan slots offers flexible redundancy and cooling customization.
  • TAA compliance ensures suitability for government and regulated sector deployments.

Product Overview

Extreme 8520-48Y Switch with two empty power supply slots six empty fan slots Ships with one 4-post rack mount kit Supports 48x25/10/1G and 8x100/40G ports

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model 8520-48Y-8C
Form Factor 1U Rack-mountable
Weight 7.58 kg
Power Supply Type Redundant Hot-swappable (Dual slots, empty by default)
Maximum Power Consumption 469 W
Power Supply Capacity 750 W (per PSU, sold separately)
Rack Mount Kit Included (4-post)
Memory (RAM) 16 GB
Flash Storage 16 GB

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, cUL, CB, CE, FCC Class A, VCCI, ICES, BSMI, RoHS

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
MACsec Encryption Yes (on select ports)
RADIUS / TACACS+ Support Yes
Storm Control Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Control Plane Protection Yes

Interfaces
Total Network Ports 56
10/25 GbE SFP28 Ports 48
40/100 GbE QSFP28 Ports 8
Management Ethernet Port 1 x 10/100/1000BASE-T
Console Port 1 x RJ-45 Serial
USB Port 1 x USB 2.0 Type-A
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Switching Capacity 4.0 Tbps
Forwarding Rate 2.97 Bpps

Physical & Environmental
Width 17.3 in (439.42 mm)
Depth 21.24 in (539.5 mm)
Height 1.7 in (43.2 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing
Fan Bays 6 (empty)

Cloud Management & Licensing
Management Interface ExtremeCloud IQ, CLI, SNMP, Web UI
Cloud Supported Yes
License Requirement Optional subscription for ExtremeCloud IQ
