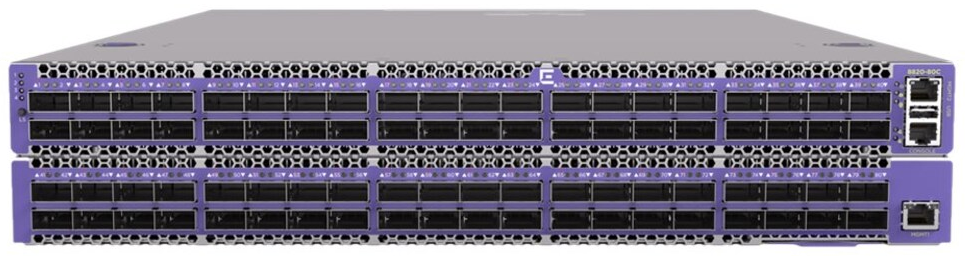

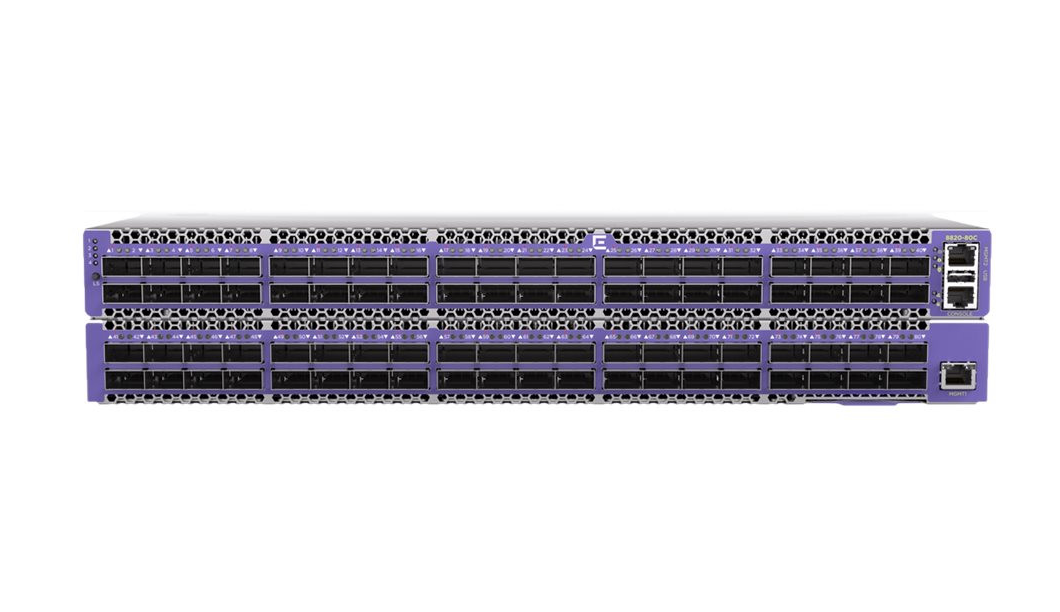

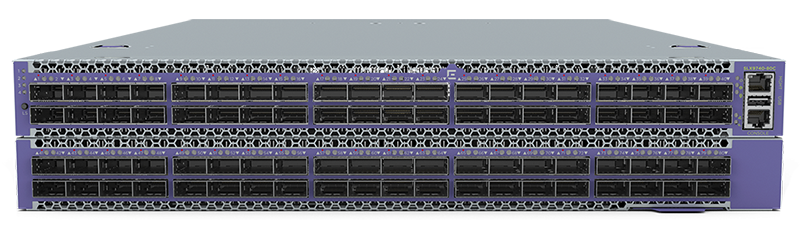

Extreme 8820-80C 80-Port 100GE/40GE QSFP28 Switch Base Unit

VENDOR: EXTREME NETWORK INC Mfg Part#: 8820-80C
1 3
Photo is for illustration purposes only. Actual product may be different.
$226,498.00
$226,498.00
Sale Sold out
MSRP: $325,982.00
Shipping calculated at checkout.
  • 80x QSFP28 interfaces supporting 100GE/40GE connections
  • 1600W maximum power support via modular PSU slots
  • Configurable airflow and power with 4 empty fan and power supply slots
  • 1-year warranty for service and support assurance
  • Compact dimensions: 17.72" (W) x 25.2" (D) x 3.41" (H)
  • RoHS and TAA compliance for enterprise and government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables high-density 100GE/40GE environments with 80 QSFP28 ports, ideal for scalable data centers.
  • Customizable power and cooling configuration allows tailored resilience and efficiency for diverse deployments.
  • Compliance with TAA and RoHS ensures suitability for government and enterprise procurements.

Product Overview

Extreme 8820-80C. Base unit with 80x100GE/40GE QSFP28 ports with 4 unpopulated power supply slots 4 unpopulated fan slots and a 4-post rack mount kit

Specifications

Product Overview
Manufacturer Extreme Networks
Model 8820-80C
Product Type Modular Ethernet Switch
Form Factor 2U Rack-mountable
Mounting Kit 4-post rack mount kit included
Weight 21.8 kg (48 lbs) base chassis
Power Configuration Supports up to 4 field-replaceable power supply units (PSUs)
Power Supply Slots 4 (unpopulated)
Fan Modules 4 (unpopulated)
Power Consumption (Typical) 950 Watts (fully loaded)
AC Power Input 100–240V AC, 50–60 Hz
Redundant Power Supported

Physical & Environmental
Width 17.72 in (450 mm)
Depth 25.2 in (640 mm)
Height 3.41 in (86.6 mm)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity 10% to 85% (non-condensing)
Storage Relative Humidity 10% to 95% (non-condensing)
Cooling Front-to-back or back-to-front airflow (requires fan modules)
Acoustic Noise Level 65 dBA typical (fully equipped)

Cloud Management & Licensing
Management Interface ExtremeXOS CLI, SNMP v1/v2/v3, REST API, and Web UI
Cloud Management Support ExtremeCloud IQ-compatible
License Model Base unit – licenses required for advanced features

Interfaces
Total Ports 80
Port Type QSFP28
Port Speed Options 40GbE or 100GbE
Maximum Throughput 16 Tbps (full duplex)
Switching Capacity 16 Tbps
Forwarding Rate 4800 Mpps
MAC Address Table Size 272,000 entries
Packet Buffer 128 MB
Latency <1 µs (100GbE)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
NEBS Level Level 3 (when configured with compliant components)
Certifications UL, CE, FCC Class A, ICES-003, VCCI, BSMI, CB

Advanced Security Features
Access Control 802.1X, MAC-based authentication
Traffic Filtering Access Control Lists (ACLs)
Secure Management SSH, SNMPv3, HTTPS
RADIUS and TACACS+ Support Yes
Storm Control Yes
Denial of Service (DoS) Protection Yes
