Extreme 8820-80C 80-Port 100GE QSFP28 Switch, Back-Front Airflow

VENDOR: EXTREME NETWORK INC Mfg Part#: 8820-80C-AC-R
1 2

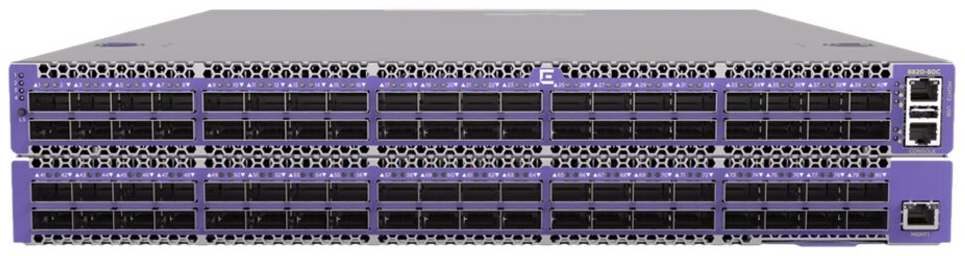

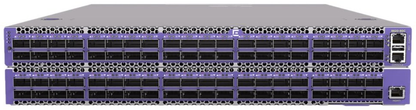

Photo is for illustration purposes only. Actual product may be different.
$226,536.00
$226,536.00
Sale Sold out
MSRP: $326,037.00
Shipping calculated at checkout.
  • 80x100GE/40GE QSFP28 interfaces for high-capacity switching
  • Four 1600W AC power supplies provide redundant power support
  • Back-to-front airflow design promotes optimal cooling
  • Compact 2RU chassis with 4-post rack mount kit included
  • Operating temperature range: 0°C to 25°C; storage from –40°C to 70°C
  • RoHS and TAA compliant with 1-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers up to 8 Tbps aggregate switching capacity with 80 QSFP28 ports
  • Designed for enterprise and data center resiliency with redundant AC power and fan modules
  • Deployment-ready with rack mount kit and efficient back-front airflow for high-density environments

Product Overview

Extreme 8820-80C with Back-Front airflow. Base unit with 80x100GE/40GE QSFP28 ports with 4 AC power supplies 4 fan modules and a 4-post rack mount kit

Specifications

Product Overview
Manufacturer EXTREME NETWORK INC
Model 8820-80C
Manufacturer Part Number 8820-80C-AC-R
Product Type Layer 3 Switch
Form Factor 2U Rack-mountable
Weight 18.5 kg (40.8 lbs)
Power Supplies Included 4 AC Power Supplies
Power Supply Wattage 1600 W
Power Requirements 180 to 264 VAC
Airflow Back-to-Front
Switching Capacity 16 Tbps
Forwarding Rate 4.76 Bpps
Mounting Kit 4-post rack mount kit included
Redundancy Hot-swappable fans and power supplies

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud IQ (optional)
Management Interface CLI, SNMP, Web UI, REST API
Licensing Model Subscription-based for advanced features
Included Licenses Base OS license
Software Upgrade Options ExtremeXOS or Switch Engine

Physical & Environmental
Width 17.72 in (450 mm)
Depth 25.2 in (640 mm)
Height 3.41 in (86.6 mm)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Max Operating Temperature 25°C (fully loaded airflow design)
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 10% to 95% RH non-condensing

Interfaces
Total Ports 80
Port Type QSFP28
Supported Port Speeds 40/100 Gigabit Ethernet
Port Speed 100 Gbps per port
Management Ports 1 x RJ45 (10/100/1000 Mbps), 1 x USB Type-A, 1 x micro-USB console
Out-of-Band Management Yes

Advanced Security Features
Access Control IEEE 802.1X, RADIUS, TACACS+
MAC Locking Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
DoS Protection Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Regulatory Compliance UL, cUL, CE, FCC Class A, VCCI, ICES-003
Certifications CB, EN 60950-1, EN 60825-1
