EXTREME NETWORK SLX 9540-24S 24-Port 10GE/1GE AC Switch (Front to Back Airflow)

VENDOR: EXTREME NETWORK INC Mfg Part#: BR-SLX-9540-24S-AC-F
1 2

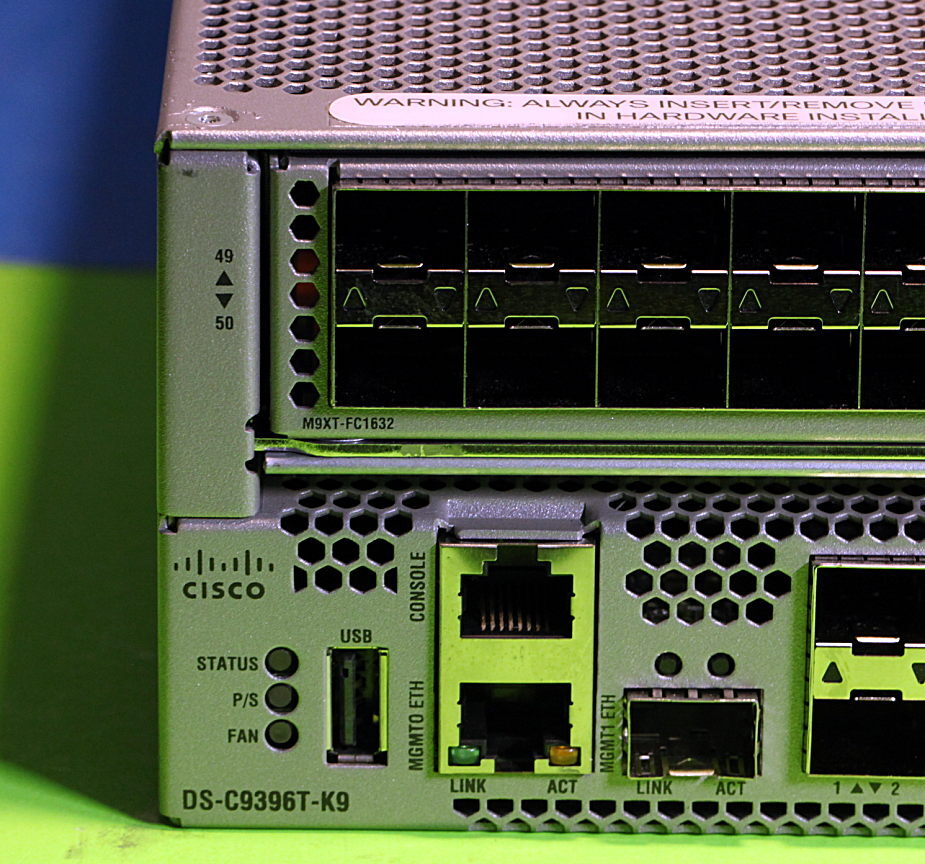

Photo is for illustration purposes only. Actual product may be different.
$49,823.00
$49,823.00
Sale Sold out
MSRP: $71,706.00
Shipping calculated at checkout.
  • Supports 24×10 GbE/1 GbE + 24×1 GbE wired Ethernet ports
  • Front-to-back airflow design (port-side to non-port side)
  • Compliant with IEEE 802.3-2005 CSMA/CD standards
  • 10 Gbps data transfer rate per port
  • Rack-mountable with included 4-post kit
  • TAA-compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high performance with 24x10GE/1GE + 24x1GE ports, optimized for data center throughput
  • Front-to-back airflow improves thermal efficiency in rack-dense environments
  • TAA compliance makes it suitable for government and regulated industry deployments

Product Overview

Switch - SLX 9540-24S - SLX 9540-24S Switch AC with Front to Back airflow (Port-side to non-port side airflow). Supports 24x10GE/1GE + 24x1GE ports. Networking / Ports Qty: 24

Specifications

Product Overview
Product Type Network Switch
Model SLX 9540-24S
Part Number BR-SLX-9540-24S-AC-F
Form Factor 1U Rack-mountable
Weight 19.84 lbs.
Power Requirements 100–240V AC, 50/60Hz
Power Supply Type Internal dual-redundant, hot-swappable AC power supply
Redundant Power Supplies Yes
Airflow Front-to-Back (Port-side to non-port side)
Mounting Type Rack-mount (4-post kit included)

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC Class A, UL/IEC/CSA 60950-1, CE, VCCI, EN55032/24

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Support Yes (802.1AE)
Authentication Protocols IEEE 802.1X, RADIUS, TACACS+
Secure Management HTTPS, SSHv2, SNMPv3
Role-Based Access Control (RBAC) Yes

Interfaces
Total Number of Ports 48
10 Gigabit Ethernet (SFP+) Ports 24
1 Gigabit Ethernet (SFP) Ports 24
Ethernet Technology Gigabit Ethernet / 10 Gigabit Ethernet
Port Speed 1 Gbps / 10 Gbps
Transceiver Slots Type SFP/SFP+
Switching Capacity 960 Gbps
Forwarding Rate 720 Mpps

Physical & Environmental
Width 17.32 in
Depth 16.63 in
Height 1.72 in
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -25°C to 55°C
Relative Humidity (Operating) 5% to 85% non-condensing
Noise Level 68 dB (max)
Cooling Front-to-back airflow with fan modules

Cloud Management & Licensing
Management Interface Extreme SLX CLI and REST API
Remote Management Supported via Extreme Management Center
Licensing Model Base license included; Advanced features via separate license
Telemetry Support Yes; via streaming telemetry
