EXTREME NETWORK SLX 9540-48S DC Switch, 48x10GE + 6x100GE, Redundant Power/Fans

VENDOR: EXTREME NETWORK INC Mfg Part#: BR-SLX-9540-48S-DC-F
1 2

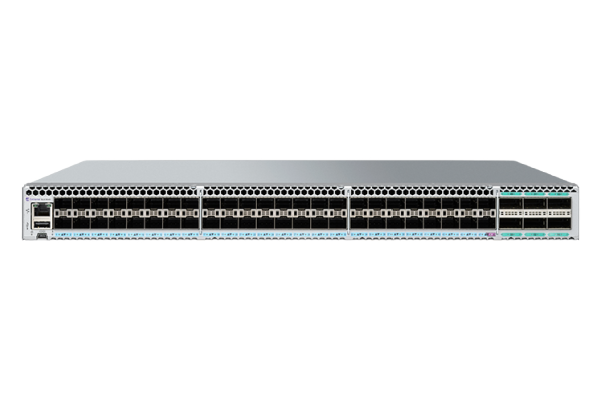

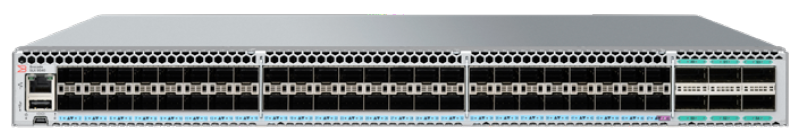

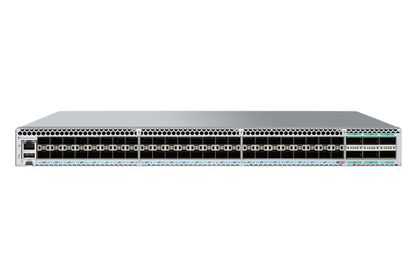

Photo is for illustration purposes only. Actual product may be different.
$75,543.00
$75,543.00
Sale Sold out
MSRP: $108,723.00
Shipping calculated at checkout.
  • Supports 48x10GbE/1GbE and 6x100GbE/40GbE ports for high-density switching
  • Designed with port-side to non-port side front-to-back airflow for efficient cooling
  • Redundant (1+1) power supply and (4+1) fan configuration ensures high availability
  • Complies with IEEE 802.3-2005 Ethernet standards and CSMA/CD access
  • Compact 1.72-inch height and rack-mountable form factor for efficient deployment
  • TAA-compliant product, manufactured in Mexico, suitable for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for dense enterprise and data center environments with up to 54 Ethernet ports including high-speed 100GbE
  • Redundant power and fan architecture enhances system availability and minimizes operational risk
  • Front-to-back airflow design optimizes thermal management in confined rack configurations

Product Overview

SLX 9540-48S Switch DC with Front to Back airflow (Port-side to non-port side airflow). Supports 48x10GE/1GE + 6x100GE/40GE. (1+1) redundant power supplies and (4+1) redundant fans included.

Specifications

Product Overview
Product Type Data Center Ethernet Switch
Model SLX 9540-48S DC
Form Factor 1U Rack-mountable
Weight 19.84 lbs
Power Configuration 1+1 Redundant Power Supplies
Fan Configuration 4+1 Redundant Fans
Airflow Direction Front-to-Back (Port-side to non-port side)
Power Supply Type DC
Product Family SLX 9540 Series

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
EMC Compliance FCC Part 15 Class A, VCCI Class A, ICES-003
Safety Certifications UL 60950-1, IEC/EN 60950-1

Advanced Security Features
Access Control 802.1X, RADIUS, TACACS+
Control Plane Protection Yes
Authorization Role-based access control (RBAC)
Security Standards Secure Shell (SSH), Secure Copy (SCP), HTTPS, SNMPv3
MACsec Support Yes

Interfaces
Port Configuration 48 x 1/10 Gigabit Ethernet + 6 x 40/100 Gigabit Ethernet
Total Ports 54
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Supported Ethernet Standards IEEE 802.3ba, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x
Port Speed 1G/10G/40G/100G
QSFP+ / QSFP28 Ports 6
SFP+ Ports 48
Switching Capacity 3.6 Tbps
Forwarding Rate 2.6 Bpps (billion packets per second)

Physical & Environmental
Width 17.32 in (440 mm)
Depth 16.63 in (422.5 mm)
Height 1.72 in (43.7 mm)
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -25°C to 55°C
Operating Humidity 5% to 95% non-condensing
Altitude Up to 10,000 feet (3,000 meters)
Acoustic Noise 65 dB typical
Thermal Output 1024.7 BTU/hr (at max)
Cooling Hot-swappable redundant fans

Cloud Management & Licensing
Management Interface REST API, CLI, SNMP v1/v2c/v3, NETCONF, gNMI
Supported Management Tools Extreme Management Center, SLX Insight Architecture
Telemetry Support Streaming telemetry with gRPC
Licensing Model Base plus optional software feature licenses
