| Product Type | Managed Stackable Switch |
| Series | Extreme Switch 4220 Series |
| Model | 4220-24T-4X |
| Form Factor | Rack-mountable |
| Rack Units | 1U |
| Weight | 6.97 lbs |
| Power Provided | 65 Watt |
| Power Redundancy | Yes |
| Included Power Supply | 1x Fixed Internal AC PSU (hot-plug) |
| Max Units in a Stack | 8 |

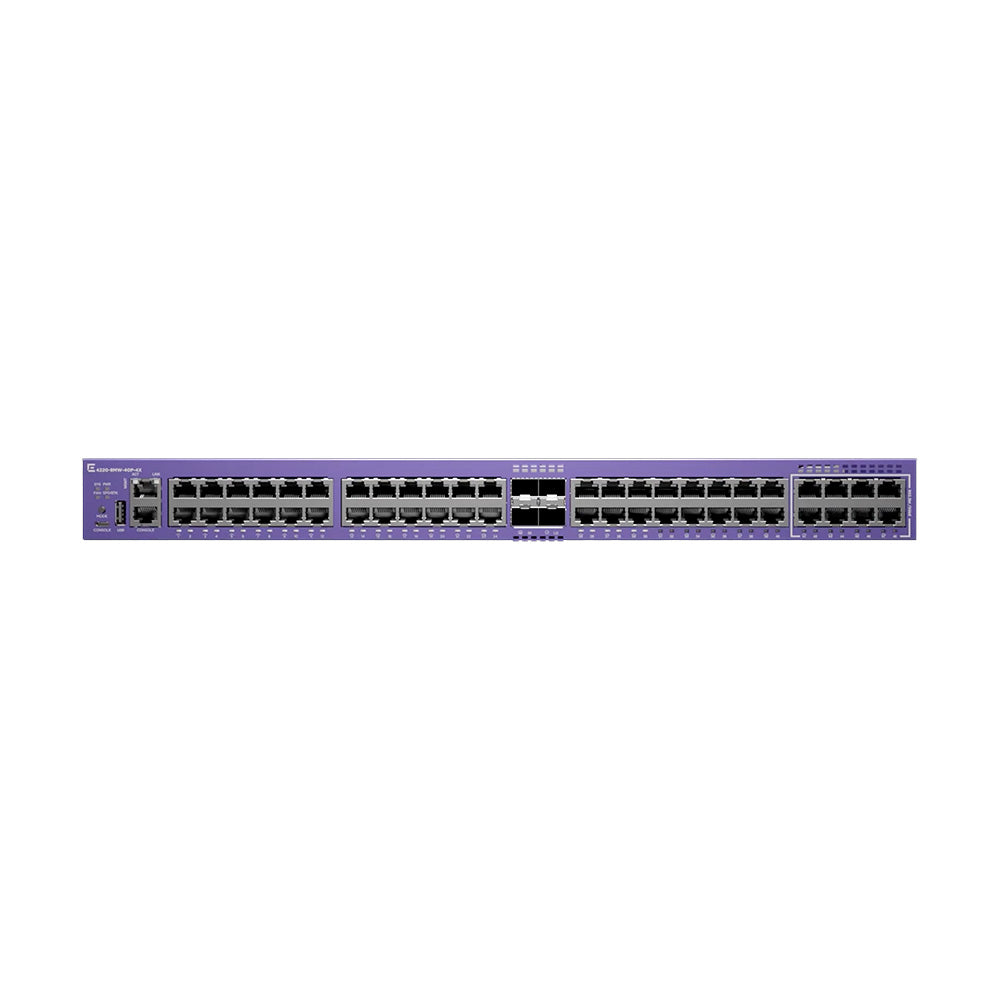

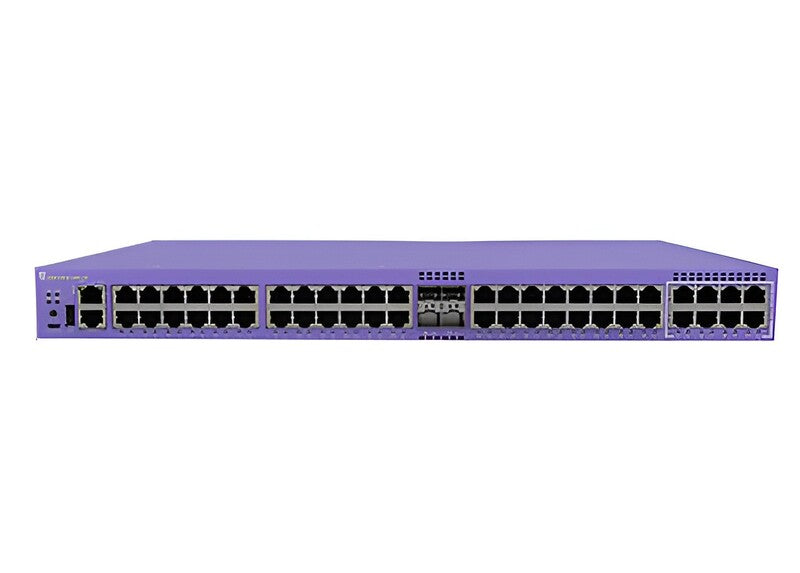

Extreme Networks 4220-24T-4X 24-Port Stackable Gigabit Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,008.00
Regular price
Sale price
$3,008.00
Unit price
per
MSRP: $4,329.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000Base-T + 4 x 1/10Gb SFP+ ports with 128 Gbps switching capacity
- 40 Gbps stacking bandwidth supporting up to 8 stacked units
- Advanced Layer 3 features including IGMPv3, MLD, and policy-based routing
- Security capabilities with 802.1x, RADIUS, ACLs, and port security
- Cloud-managed with features like LLDP, ZTP, and VLAN support
- Redundant, hot-pluggable internal power supply and quiet mode
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers enterprise-grade reliability with power redundancy and stackable architecture for scalable growth.
- Designed for high-throughput networks with 128 Gbps switching and 95.2 Mpps forwarding to minimize bottlenecks.
- Compliant with TAA and backed by a limited lifetime warranty—ideal for long-term infrastructure investment.
Product Overview
4220 24 port stackable switch with 24 x 10/100/1000Base-T ports; 4 x 1/10Gb SFP+ uplink/stacking ports; 1 x 10/100/1000BASE-T out-of-band management port; 1 x Serial console port (RJ-45); 1 x USB A ports; 1 x USB Micro-B console port. Includes Fans 1 Fixed AC PSUSpecifications
Product Overview
Cloud Management & Licensing
| Management Interface | Cloud managed, Web GUI, CLI |
| Remote Management Protocols | DHCP, SNMP, HTTP, HTTPS |
| Zero Touch Provisioning (ZTP) | Supported |
| Software License | Base Software License Included |
Physical & Environmental
| Dimensions (W x D x H) | 17.4 in x 10 in x 1.7 in |
| Minimum Operating Temperature | 32 °F (0 °C) |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Operating Humidity Range | 10 - 95% (non-condensing) |
| Minimum Storage Temperature | -40 °F (-40 °C) |
| Maximum Storage Temperature | 158 °F (70 °C) |
| Storage Humidity Range | 10 - 95% (non-condensing) |
| Rack Mounting Kit | Included |
Interfaces
| Total Ethernet Ports | 24 x 10/100/1000Base-T |
| SFP+ Ports | 4 x 1/10GbE SFP+ (uplink/stacking) |
| Management Port | 1 x 10/100/1000BASE-T RJ-45 |
| Console Port (RJ-45) | 1 x Serial Console |
| USB Ports | 1 x USB Type-A, 1 x USB Micro-B Console |
| Data Transfer Rate | 10/100/1000 Mbps per Ethernet port |
| Switching Bandwidth | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Stacking Bandwidth | 40 Gbps |
| Jumbo Frame Support | Yes |
Advanced Security Features
| Authentication Method | RADIUS, 802.1X |
| Access Control List (ACL) Support | Yes |
| Port Security | Yes |
| IGMP Snooping | Yes |
| Policy-Based Routing (PBR) | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications & Compliance Standards | IEEE 802.1D, 802.1w, 802.1s, 802.1ab (LLDP), 802.3ad (LACP), 802.3ae, 802.3az, 802.3bj, 802.3bm, 802.3by, 802.3bz, UL 60950-1, IEC 60950-1, EN 62368-1, IEC 62368-1, FCC Class A, VCCI Class A, RoHS, WEEE, REACH, China RoHS II, BSMI, ANATEL, KCC, CE, CDRH, NOM, NRCS, EAC, ICES-003 Class A, EN 55032, EN 55035 |
