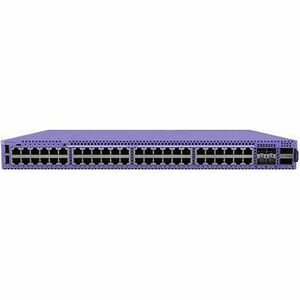

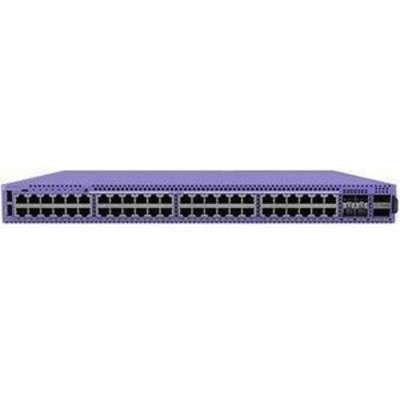

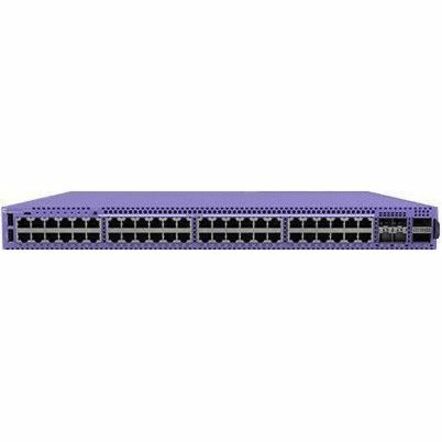

Extreme Networks 4220-48P-4X 48-Port Stackable PoE Switch, 370W, 4x SFP+

VENDOR: EXTREME NETWORK INC Mfg Part#: 4220-48P-4X UPC#: 644728058051
1 5
Photo is for illustration purposes only. Actual product may be different.
$5,826.00
$5,826.00
Sale Sold out
MSRP: $8,385.00
Shipping calculated at checkout.
  • 48 x 10/100/1000Base-T PoE ports (802.3at, 30W each), total PoE budget of 370W
  • 4 x 1G/10G SFP+ uplink ports for high-speed fiber connectivity
  • Cloud-managed Layer 2 switching with static IPv4/IPv6 routing support
  • 1U rackmount form factor with fixed AC power supply and integrated fans
  • Supports up to 32,000 MAC address entries for high device density
  • Operating temperature range from 0°C to 50°C with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density PoE switching with 48 Gigabit ports and 370W power budget, ideal for powering edge devices
  • Offers superior uplink capacity with four 1G/10G SFP+ ports, ensuring fast backbone integration and scalability
  • Simplifies network management with cloud-based Layer 2 configuration and support for IPv4/IPv6 static routing protocols

Product Overview

4220 48 port stackable switch (370W POE) with 48 10/100/1000BaseT 30W POE ports 4 1G/10G SFP+ ports. Includes Fans 1 Fixed AC PSU

Specifications

Product Overview
Product Type Stackable Power over Ethernet (PoE) Switch
Model 4220-48P-4X
Form Factor 1U Rack-mountable
Weight 5.09 kg
Power Supply Type Fixed AC Power Supply
Included Power Supply 1
Maximum Power Consumption 470 W
PoE Budget 370 W
Total Power Provided 550 W
Layer Support Layer 2

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes

Advanced Security Features
Access Control IEEE 802.1X network access control
Policy Enforcement Role-based policies and ACLs (Access Control Lists)
DoS Protection Yes
Storm Control Supported
Loop Protection Yes

Interfaces
10/100/1000BASE-T Ports 48 PoE+ (802.3at) ports
SFP+ Ports 4 (1G/10G)
Total Port Count 52
Data Transfer Rate 10 Gbps (max per SFP+ port)
Data Link Protocol Gigabit Ethernet
MAC Address Table Size 32,000 entries

Physical & Environmental
Width 17.4 in
Depth 13 in
Height 1.7 in
Operating Temperature (Min) 0°C
Operating Temperature (Max) 50°C
Storage Temperature (Min) -40°C
Storage Temperature (Max) 70°C

Cloud Management & Licensing
Management Interface Cloud-managed via ExtremeCloud™ IQ
Remote Management Protocols IPv4, IPv6, DHCP
Routing Protocols IPv4/IPv6 Static Routing
Cloud Features Zero-touch provisioning, centralized management, analytics
