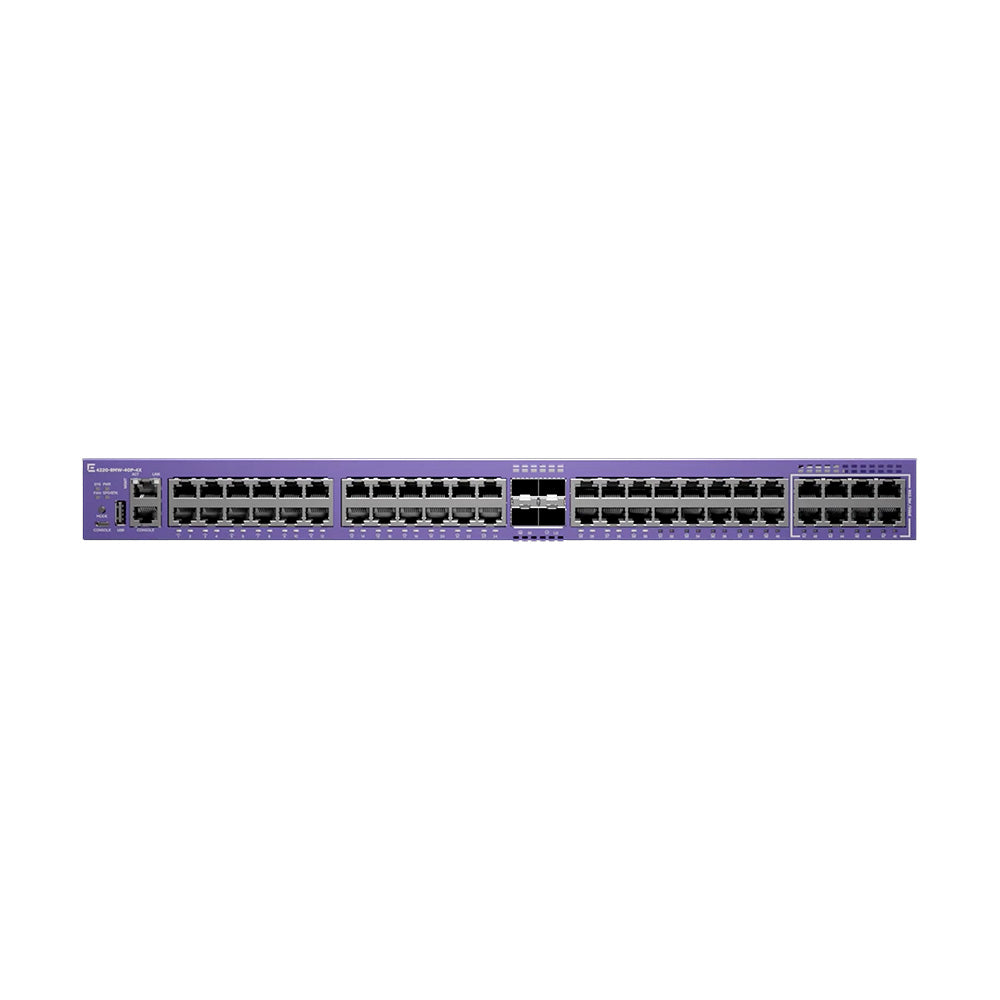

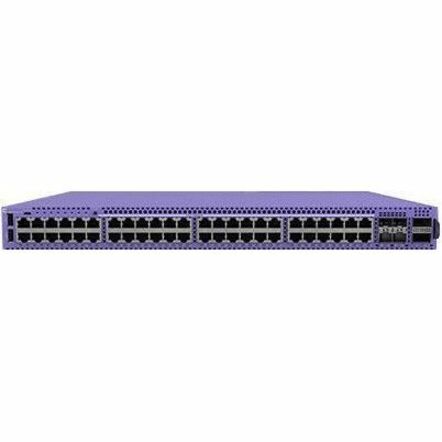

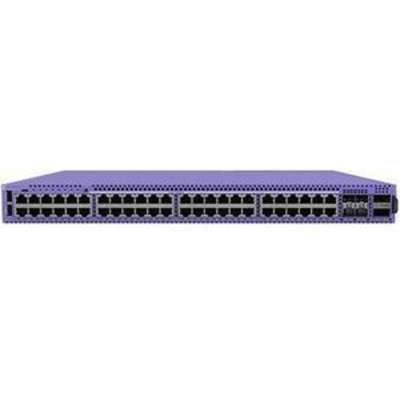

Extreme Networks 4220-48T-4X 48-Port Stackable Gigabit Switch

VENDOR: EXTREME NETWORK INC Mfg Part#: 4220-48T-4X UPC#: 644728058020
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,369.00
$4,369.00
Sale Sold out
MSRP: $6,287.00
Shipping calculated at checkout.
  • 48 x 10/100/1000Base-T ports and 4 x 1G/10G SFP+ uplink/stacking ports
  • Switching bandwidth of 176 Gbps and forwarding rate of 130.9 Mpps
  • Supports stacking of up to 8 units with 40 Gbps stacking bandwidth
  • Advanced routing protocols including IGMPv2/3, PBR, and static IP routing
  • VLAN support, jumbo frames, 802.1x authentication, and LLDP/LLDP-MED
  • Cloud-managed with Zero Touch Provisioning (ZTP) and quiet mode operation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high performance with non-blocking architecture and advanced Layer 2/3 routing capabilities for demanding enterprise networks
  • Flexible scalability with support for up to 8 switch stacking and dual internal power supplies
  • Integrated cloud management and ZTP features allow rapid deployment and simplified administration in complex IT environments

Product Overview

4220 48 port stackable switch with 48 10/100/1000BaseT ports 4 1G/10G SFP+ ports. Includes Fans 1 Fixed AC PSU

Specifications

Product Overview
Product Type Stackable Managed Gigabit Ethernet Switch
Form Factor Rack-mountable
Number of Ports 48 x 10/100/1000Base-T + 4 x 1G/10G SFP+
Stacking Capability Yes
Max Stack Units 8
Power Supply Type Internal fixed AC power supply
Cooling Integrated Fans
Power Provided 150 Watt
Power Redundancy Yes
Included Power Units 1
Maximum Supported Power Units 2
Weight 9.99 lbs

Physical & Environmental
Width 17.4 in
Depth 13 in
Height 1.7 in
Operating Temperature Minimum 32 °F
Operating Temperature Maximum 122 °F
Storage Temperature Minimum -40 °F
Storage Temperature Maximum 158 °F
Operating Humidity 10 - 95% RH (non-condensing)
Storage Humidity 10 - 95% RH (non-condensing)

Advanced Security Features
Authentication Method RADIUS, 802.1x authentication
Access Control ACL support, Port Security
Layer 3 Routing Protocols Static Routing, IGMPv2/v3, PBR, MLD
Layer 2 Protocols STP, RSTP, MSTP, PVST+

Additional Features
Supported Features sFlow, VLAN, LLDP, DHCP Client/Server/Relay, MVRP, LAG, Quiet mode (fan off), Non-blocking architecture, UZTNA
Rack Mounting Kit Included
Warranty Limited Lifetime Warranty

Interfaces
10/100/1000Base-T Ports 48 x RJ-45
SFP+ Uplink/Stacking Ports 4 x 1/10GBase-X SFP+
Management Port 1 x Gigabit RJ-45
Console Port 1 x serial RJ-45
USB Ports 1 x USB Type-A, 1 x micro-USB Type-B for console
Stacking Bandwidth 40 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.9 Mpps
Jumbo Frame Support Yes

Cloud Management & Licensing
Management Interface Cloud-managed, ZTP (Zero Touch Provisioning)
Management Protocols DHCP, LLDP, LLDP-MED
Licensing Model Base Software License included

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications and Standards IEEE 802.1D, 802.3ab, 802.3ad, 802.1w, 802.3ae, 802.1s, 802.1ab, 802.3az, 802.3bj, 802.3bm, 802.3by, 802.3bz, UL 60950-1, UL/EN/IEC 62368-1, FCC Class A, EN 55032 Class A, VCCI Class A, RoHS, WEEE, REACH, KCC, NOM, CQC, BSMI, ICES-003, NRCS, ANATEL, EAC, ACMA RCM, China RoHS II, TEC, ASTM D3580, Taiwan RoHS CNS 15663
