Extreme Networks 8720-32C 32-Port 100G DC Switch, Front-to-Back Airflow

VENDOR: EXTREME NETWORK INC Mfg Part#: 8720-32C-DC-F
1 1

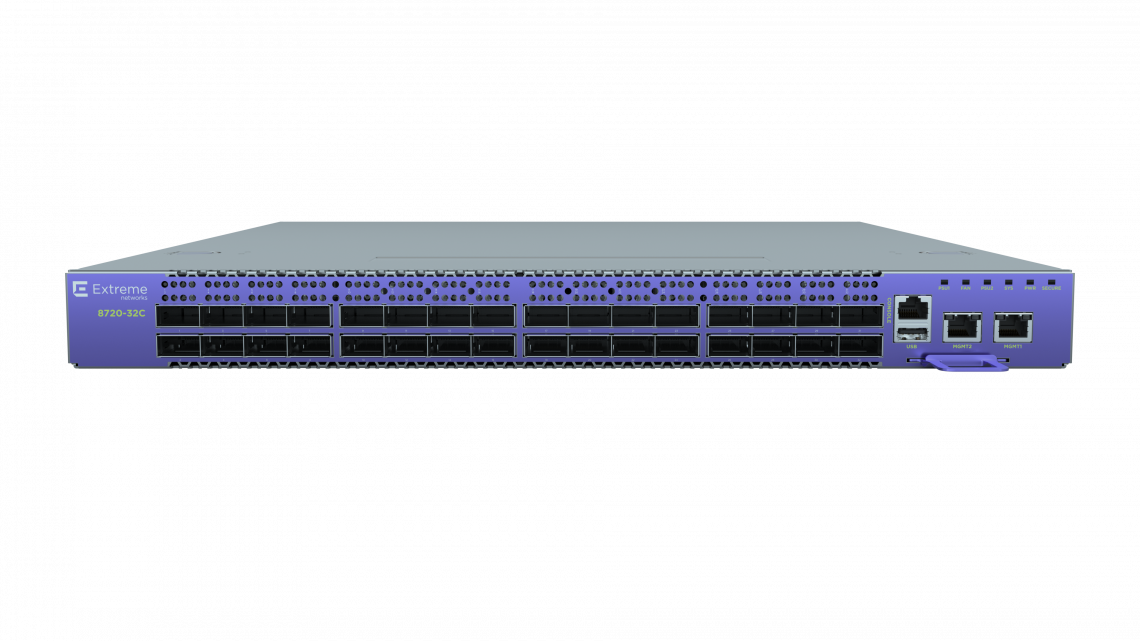

Photo is for illustration purposes only. Actual product may be different.
$42,964.00
$42,964.00
Sale Sold out
MSRP: $61,834.00
Shipping calculated at checkout.
  • 32x QSFP28/QSFP+ ports supporting 40G/100G Ethernet
  • 6.4 Tbps switching capacity and 2000 Mpps forwarding rate
  • Dual DC power supplies (-48 to -60 V) with six cooling fans
  • Integrated 128 GB SSD and 16 GB DDR4 SDRAM
  • Full Layer 2/3 protocol support including BGP, OSPF, VRRP
  • Remote management via SNMPv3, SSH, NETCONF, REST API

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-throughput environments with 6.4 Tbps switching capacity and ultra-low 800 ns latency.
  • Comprehensive Layer 2/3 features and advanced protocol support deliver versatile deployment capabilities.
  • Redundant DC power and six-fan design ensure enterprise-grade reliability and continuous operation in mission-critical settings.

Product Overview

Extreme 8720-32C with Front to Back air flow. Supports 32x40/100G with dual DC power supplies six fans and a 4-post rack mount kit

Specifications

Product Overview
Product Type Switch
Form Factor Rack-mountable
Model 8720-32C-DC-F
Manufacturer Extreme Networks
Series Extreme 8720 Series
Weight 19.84 lbs
Power Requirements DC -48 to -60 V
Power Supplies Installed 2 (DC)
Max Supported Power Supplies 2
Airflow Direction Front-to-Back
Included Accessories 4-post rack mount kit, dual DC power supplies, six fans
Built-in Storage 128 GB SSD
Memory 16 GB DDR4 SDRAM
Processor 1

Cloud Management & Licensing
Management Interfaces CLI, SNMP v1/v2c/v3, RMON 1/2, Telnet, HTTP/HTTPS, SSH/SSH-2, NETCONF, SFTP, REST API, NTP, DHCP, TACACS+, LDAP, RADIUS
Zero-Touch Provisioning (ZTP) Supported
Cloud Management ExtremeCloud-enabled

Physical & Environmental
Width 17.3 in
Depth 22.4 in
Height 1.7 in
Operating Temperature Range 32 °F to 113 °F
Cooling System 6 fans

Routing & Layer 3 Features
Supported Routing Protocols OSPF, OSPFv2, OSPFv3, BGP, BGP-4+, IGMP, IGMPv2, MLD, VRRP, VRRPv2, VRRPv3, ECMP, BFD, Static Routing

Interfaces
Total Ports 32
Port Type 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Data Link Protocols Supported 100 Gigabit Ethernet, 40 Gigabit Ethernet
Management Interfaces 1 x serial (console) RJ-45, 2 x 1000Base-T RJ-45, 1 x micro-USB Type A
Data Transfer Rate 100 Gbps per port
Switching Capacity 6.4 Tbps
Forwarding Rate 2000 Mpps
Latency 800 ns
Packet Buffer Size 32 MB

Advanced Security Features
Encryption Algorithms TLS 1.1, TLS 1.2
Authentication Methods SSH, SSHv2, RADIUS
Access Control RBAC, AAA, MAC address filtering, Layer 2 MAC ACLs
Security Features BGP GTSM, DHCP Helper, BPDU Filter, BPDU Guard, STP Root Guard, MAC address aging, Loop prevention

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Standards RoHS 2011/65/EU, WEEE 2012/19/EU, ASTM D3580, EN/ETSI 300 019-2-1 v2.1.2 Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 Class 2.3, EN/ETSI 300 753, Taiwan BSMI RoHS, CNS 15663, China RoHS II (GB/T 26572-2011), IEEE 802.3, 802.1D/Q/p/x/ad/w/ae/s/v/ab/AX

Layer 2 & QoS Features
L2 Switching Features LACP, LLDP, MSTP, Rapid PVST+, PVST+, VLAN encapsulation, VLAN tagging, MVRP, Protocol-based VLANs
QoS Features DWRR, CoS, SP, DSCP Trust, DSCP to CoS Mutation, DSCP to Traffic Class Mutation, Rate Limiting
Monitoring & Visibility sFlow, SPAN, ICMP, NTP Support, Time Stamping
