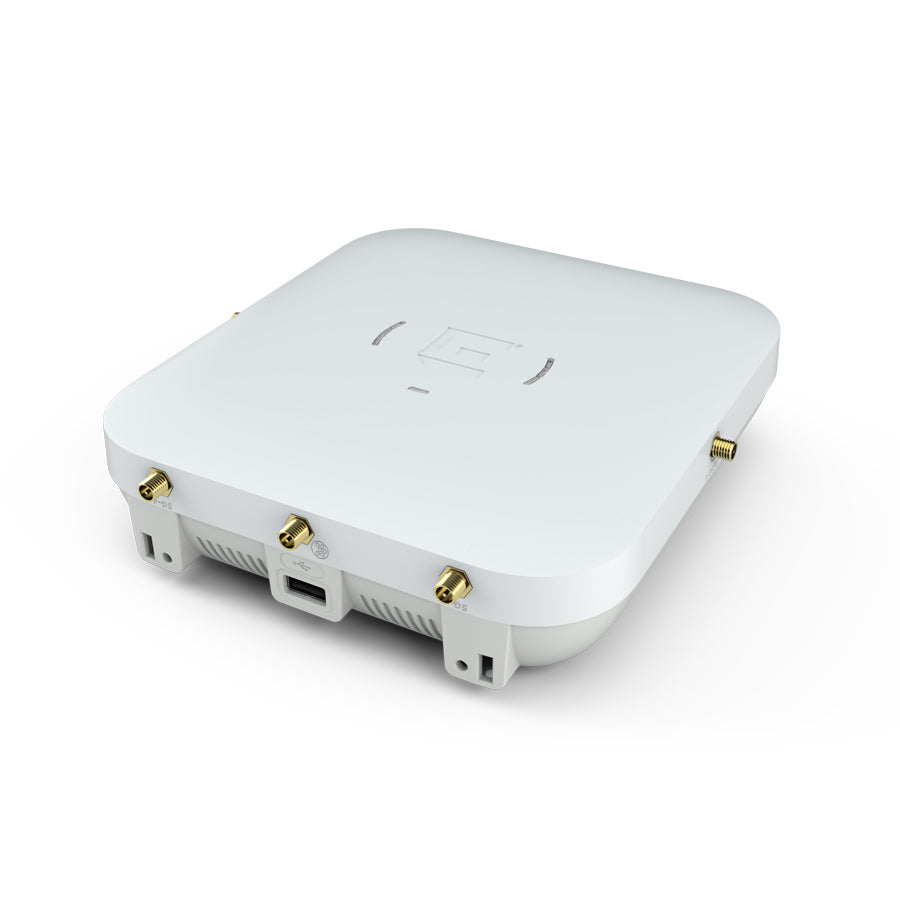

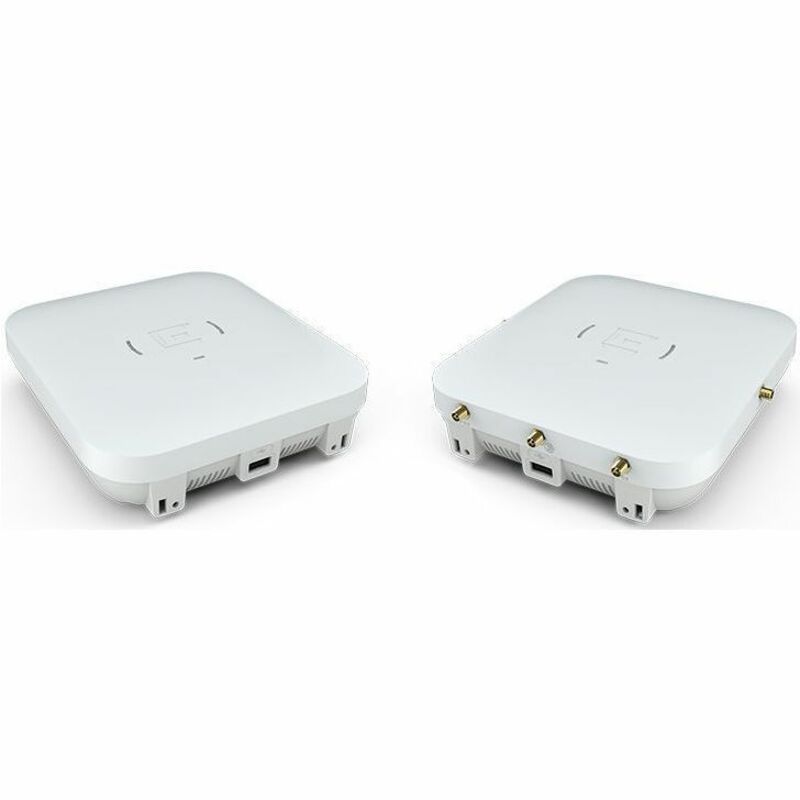

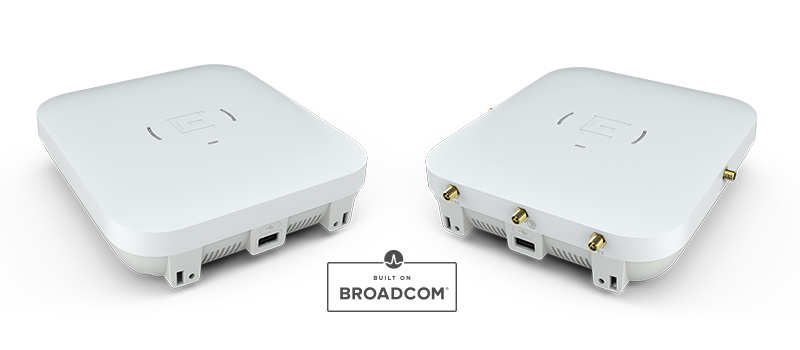

Extreme Networks AP410E-FCC Tri-Radio 802.11ax Indoor Access Point

VENDOR: EXTREME NETWORK INC Mfg Part#: AP410E-FCC UPC#: 644728350124
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,513.00
$1,513.00
Sale Sold out
MSRP: $2,177.00
Shipping calculated at checkout.
  • Tri-radio configuration with 4x4:4 and 2x2:2 MIMO plus dedicated 2x2:2 sensor
  • Supports multigigabit 100/1000/2500 Mbps RJ45 PoE (802.3at) and secondary 10/100/1000 Mbps Ethernet
  • External antenna configuration with RP-SMA connectors for flexible deployment
  • Compatible with 802.11a/b/g/n/ac wireless standards over 2.4 GHz and 5 GHz bands
  • Compact indoor design (6.5" x 7" x 1.8") for discreet commercial integration
  • USB 3.0 Type-A port allows for accessory or diagnostic support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for dense wireless environments requiring uninterrupted monitoring thanks to the dedicated sensor radio
  • High-speed multigigabit Ethernet and PoE support enable flexible, efficient deployment without sacrifice to performance
  • Backed by a limited lifetime warranty, ensuring long-term value and investment protection

Product Overview

Tri Radio 802.11ax - 4x44 + 2x22 Full time 2x22 Sensor Indoor External Antenna Access Point. Domain US and Puerto Rico, (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port; (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45; USB3.0, Type A , 0.5A

Specifications

Product Overview
Product Type Access Point
Model AP410E-FCC
Form Factor Ceiling or wall mountable
Device Environment Indoor
Radio Count Tri
Power Source PoE (802.3at)
Max Power Consumption 25.5 W (PoE)
Mounting Options Flat Surface, Ceiling Grid, Wall Mount
Processor Type Qualcomm Quad-Core ARM
Processor Clock Speed 1 GHz
Flash Memory 512 MB
RAM 1 GB

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Operating Bands 2.4 GHz, 5 GHz
MIMO Configuration 4x4:4 on 5 GHz + 2x2:2 on 2.4 GHz + 2x2:2 dedicated sensor radio
Spatial Streams 8
Antenna Type External, RP-SMA connectors
Antenna Gain Up to 5 dBi (antenna dependent)
Max Data Rate 4.8 Gbps (aggregated)
MU-MIMO Yes
OFDMA Yes
BSS Coloring Yes
Target Wake Time (TWT) Yes
DFS Channels Supported Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, UL, CE, RoHS, WEEE
Safety Standards UL 60950-1, IEC 60950-1

Advanced Security Features
WPA Versions Supported WPA2, WPA3
Wireless IDS/IPS Yes
User Role-Based Policies Yes
Encrypted Management Traffic Yes
Rogue AP Detection Yes
Layer 7 Application Visibility Yes
MAC Filtering Yes

Interfaces
Primary Ethernet Port 1 x 100/1000/2500 Mbps RJ45, PoE
Secondary Ethernet Port 1 x 10/100/1000 Mbps RJ45
USB Port 1 x USB 3.0 Type A
Antenna Ports 6 x RP-SMA (external antennas required)
Ethernet Auto-Negotiation Supported

Physical & Environmental
Width 6.5 inches (165 mm)
Depth 7 inches (178 mm)
Height 1.8 inches (45 mm)
Weight 1.5 lbs (0.68 kg)
Operating Temperature 0° to 40°C (32°F to 104°F)
Storage Temperature -40° to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing

Cloud Management & Licensing
Cloud Management Supported via ExtremeCloud IQ
On-Premises Management Supported via Extreme Wireless Controller
Licensing Requirements Subscription for ExtremeCloud IQ recommended
Zero-Touch Provisioning Yes
Firmware Upgrade Cloud-managed OTA
