Extreme Networks AP5020-WW Indoor Tri-Radio Wi-Fi 7 Access Point

VENDOR: EXTREME NETWORK INC Mfg Part#: AP5020-WW UPC#: 644728059447
1 3

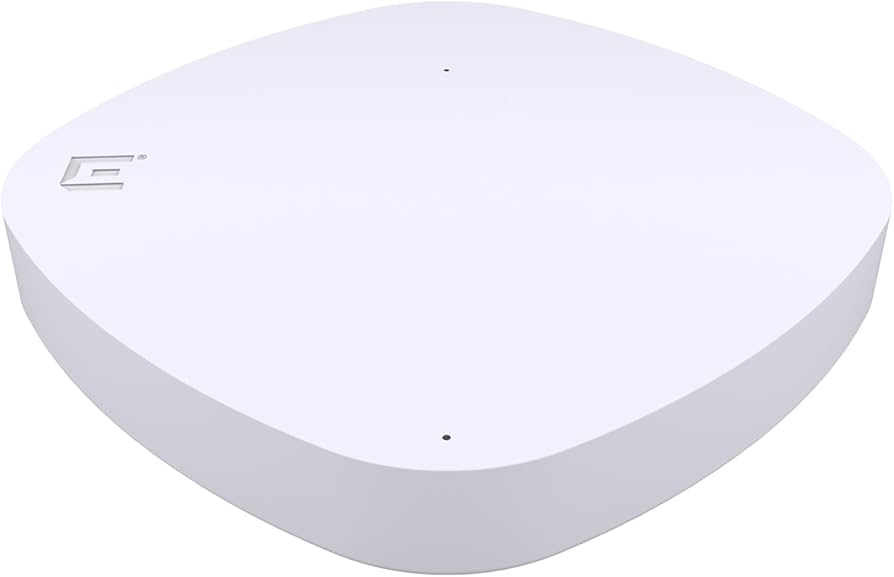

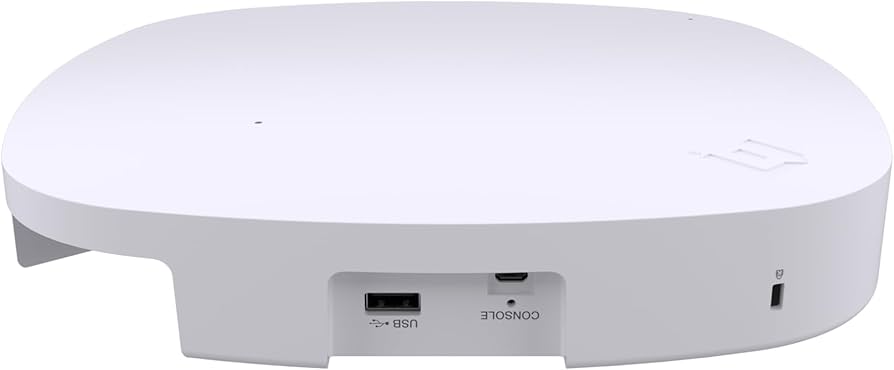

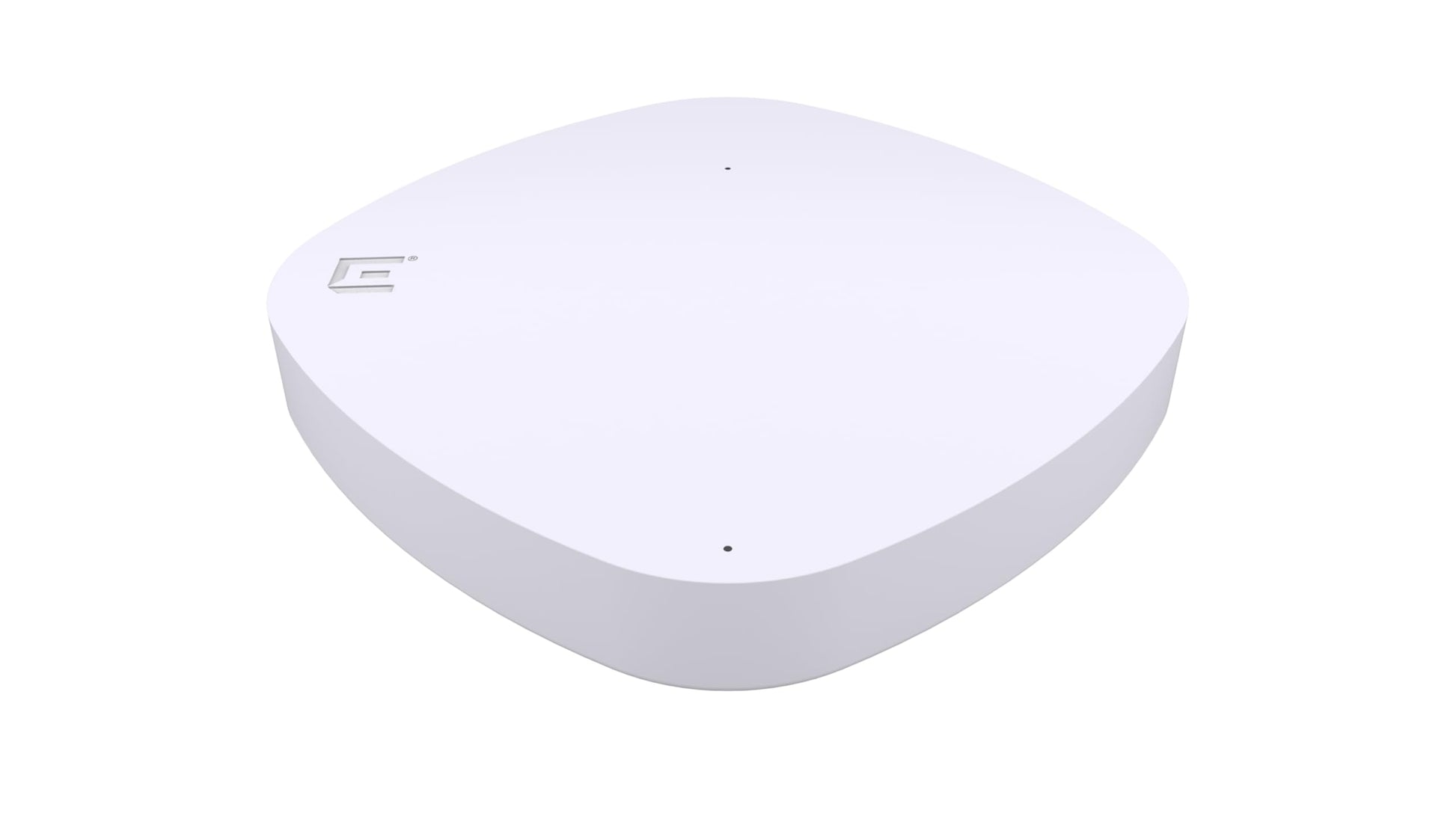

Photo is for illustration purposes only. Actual product may be different.
$2,367.00
$2,367.00
Sale Sold out
MSRP: $3,407.00
Shipping calculated at checkout.
  • Wi-Fi 7 (802.11be) tri-radio access point supporting 2.4 GHz, 5 GHz, and 6 GHz bands
  • 4x4:4 MIMO configuration with internal antennas for enhanced signal efficiency
  • Data transfer rate up to 5 Gbps with multirate Ethernet port support
  • Compliant with 802.3at Power over Ethernet (PoE) standard
  • Includes T-Bar mount for simplified installation in suspended ceiling infrastructures
  • TAA compliant and backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports the latest Wi-Fi 7 standard for superior performance in high-density wireless environments
  • Tri-radio design and multigigabit throughput allow for seamless enterprise-level networking
  • Comes with TAA compliance and lifetime warranty, making it a secure and future-proof investment

Product Overview

Indoor Tri Radio WiFi 7 AP 2.4 GHz 5GHz 6GHz Mulitrate Port Internal antennas.T-Bar Incl Mt (AH-ACC-BKT-AX-TB). Domain World Sku

Specifications

Product Overview
Product Type Access Point
Model AP5020-WW
Form Factor Ceiling/Wall Mountable
Mounting Options T-Bar mount (AH-ACC-BKT-AX-TB) included
Radio Count Tri-Radio
Processor Type
Environment Indoor
Weight 1.72 lbs (0.78 kg)
Power Requirements 802.3at PoE+
Power Consumption Up to 25.5W
Throughput 5 Gbps aggregate

Wireless Features
Wi-Fi Standard Wi-Fi 7 (802.11be)
Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Antenna Type Internal Antennas
MIMO Configuration 4x4:4 MU-MIMO per radio
Spatial Streams Up to 12 spatial streams total
Max Data Rate – 2.4 GHz Up to 1.1 Gbps
Max Data Rate – 5 GHz Up to 4.8 Gbps
Max Data Rate – 6 GHz Up to 5.8 Gbps
OFDMA Support Yes
Target Wake Time (TWT) Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, IC, UL, Wi-Fi Alliance
Regulatory Compliance Standards 802.11a/b/g/n/ac/ax/be, 802.3at

Advanced Security Features
Wireless Security WPA3, WPA2, WPA-Personal/Enterprise
Intrusion Detection / Prevention WIPS/WIDS support
Guest Access Control Captive Portal, Policy-based Access
Content Filtering Supported via cloud subscription
Role-Based Access Control Yes

Interfaces
Network Interface 1x 2.5G Ethernet (RJ-45)
Data Transfer Rate 5 Gbps
Uplink Port Speed 2.5 Gbps
Port Type Multirate Ethernet
Bluetooth Interface Bluetooth Low Energy (BLE) 5.0
Data Link Protocol 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 10.16 in (258 mm)
Depth 10.16 in (258 mm)
Height 1.62 in (41.1 mm)
Operating Temperature 0°C to +40°C (32°F to +104°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 10% – 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud™ IQ
Management Interface Web UI, CLI, SNMP, ExtremeCloud™ IQ
Licensing Requirement Subscription-based licensing via ExtremeCloud IQ
Included Cloud Features Zero-touch provisioning, client monitoring, configuration management
