Extreme Networks VSP7400-48Y-8C-AC-R 48xSFP28 + 8xQSFP28 Switch, 16GB RAM

VENDOR: EXTREME NETWORK INC Mfg Part#: VSP7400-48Y-8C-AC-R UPC#: 644728042173
1 3

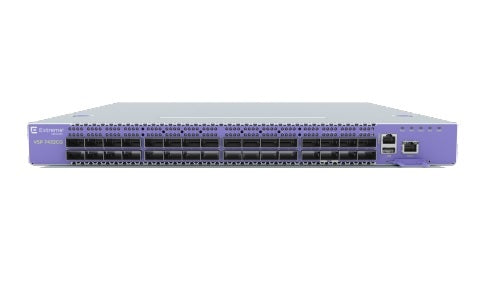

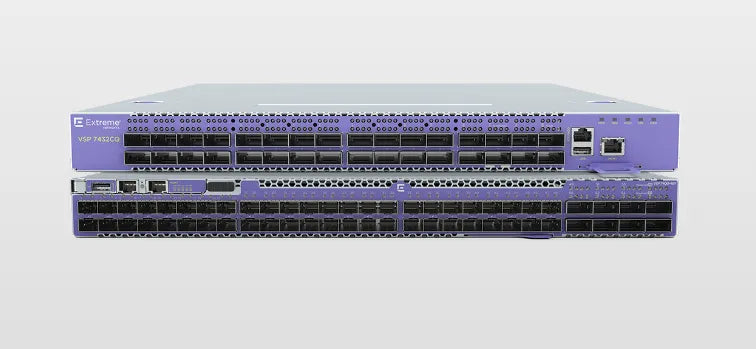

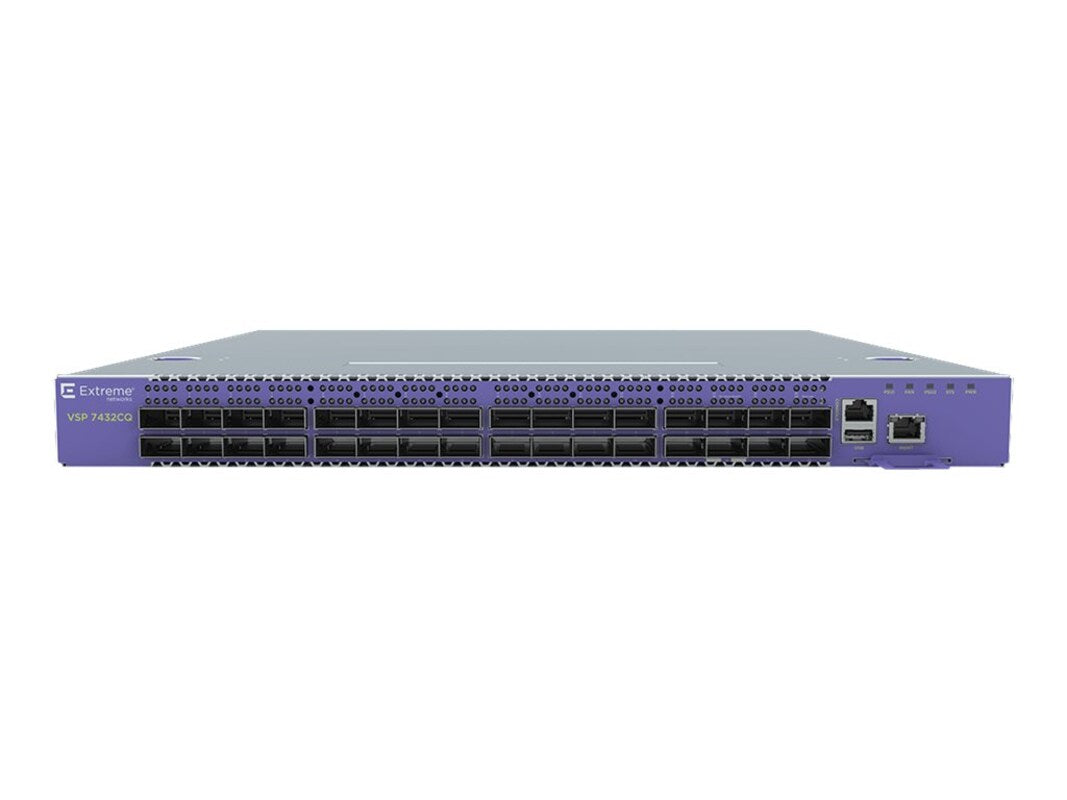

Photo is for illustration purposes only. Actual product may be different.
$31,785.00
$31,785.00
Sale Sold out
MSRP: $45,745.00
Shipping calculated at checkout.
  • 48 x SFP28 ports supporting 1/10/25Gbps for flexible connectivity
  • 8 x 100Gbps QSFP28 uplinks enabling high-bandwidth interconnects
  • Octa-core processor with 16GB RAM and 128GB SSD storage for robust performance
  • Full Layer 2 and Layer 3 support with BGP, OSPF, and RIP routing protocols
  • Compact 1RU design with back-to-front airflow and built-in six-fan cooling system
  • Standards-compliant (IEEE 802.1/802.3) with up to 160,000 MAC addresses and RADIUS authentication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high port density and fabric scalability with 48 x 10/25Gbps and 8 x 100Gbps ports
  • Ideal for enterprise and data center deployments requiring Layer 3 routing and advanced management
  • Reliable performance and cooling in a compact 1RU form factor with 750W PSU and six integrated fans

Product Overview

VSP 7400, 48 X 1/10/25Gbps SFP28 ports, 8 x l00Gbps QSFP28 ports. 8-core CPU, 16GB RAM, 128GB SSD, Single 750W AC PSU. six fans. 4-post rack mount kit, Back to Front Airflow - Layer 2, Layer 3

Specifications

Product Overview
Type Managed Layer 2/Layer 3 Network Switch
Model VSP7400-48Y-8C-AC-R
Form Factor 1RU
Processor Type Octa-Core
RAM 16 GB
Storage Capacity 128 GB SSD
Power Supply Type Internal Hot-Swappable PSU
Power Supply Included Single 750W AC PSU
Power Requirements 100–127 VAC / 200–240 VAC
Maximum Power Consumption 469 Watts
Weight 20 lbs.
Mounting Kit 4-post rack mount kit
Number of Fans 6

Cloud Management & Licensing
Remote Management Protocols SNMP, SSH, HTTP, DHCP
Cloud Configuration Cloud-based or local management via Extreme Management Center (XMC)
Management Interface CLI, Web UI, SNMP v1/v2c/v3

Physical & Environmental
Width 17.3 in
Depth 20.9 in
Height 1.7 in
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Cooling Back-to-Front Airflow
Humidity (Operating) 10% to 95% non-condensing

Interfaces
Total Number of Ports 56
SFP28 Ports 48 x 1Gb/10Gb/25Gb SFP28
QSFP28 Ports 8 x 100Gb QSFP28
Data Transfer Rate 100 Gbps
MAC Address Table Size Up to 160000 entries
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet, 25-Gigabit Ethernet, 100-Gigabit Ethernet
Routing Protocols BGP, RIP, OSPF

Advanced Security Features
Authentication Methods RADIUS, TACACS+, LDAP
Encryption Protocol MD5
Secure Management HTTPS, SSH, SNMPv3
Access Control Role-Based Access Control (RBAC)
Port Security Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications and Standards IEEE 802.1D, 802.1p, 802.1t, 802.1w, 802.1Q, 802.1s, IEEE 802.3
Environment Certification RoHS, WEEE
