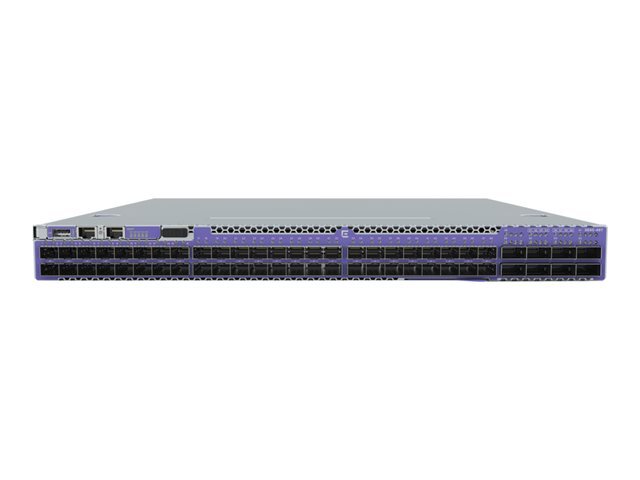

Extreme Networks X695-48Y-8C 48x25GE + 8x100GE Switch, 1U

VENDOR: EXTREME NETWORK INC Mfg Part#: X695-48Y-8C UPC#: 644728046218
1 5
Photo is for illustration purposes only. Actual product may be different.
$31,277.00
$31,277.00
Sale Sold out
MSRP: $45,015.00
Shipping calculated at checkout.
  • 48 x SFP28 ports supporting 1Gb/10Gb/25Gb Ethernet
  • 8 x QSFP28 uplink ports for 40Gb/100Gb connectivity
  • 1U rackmount form factor with two power supply slots and six fan trays
  • Support for Layer 2 and Layer 3 switching protocols
  • MAC address table size up to 290K; jumbo frame support up to 9216 Bytes
  • 16 GB installed RAM and IPv4/IPv6 remote management compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Scalable high-performance switch offering 25Gb/100Gb density for modern data center fabrics
  • Redundant power and fan options ensure availability and lower downtime in critical environments
  • TAA-compliant and built in Taiwan, making it suitable for secure and regulated deployments

Product Overview

X695-48Y Switch with two empty power supply slots six empty fan slots Supports 48x25GE/10GE/1GE + 8x100GE/40GE

Specifications

Product Overview
Type Switch
Model X695-48Y-8C
Form Factor 1U
Weight 7.4 Kg
Power Requirements Hot-swappable redundant power supplies (not included)
RAM (Installed) 16 GB
Switching Capacity 2.48 Tbps
Forwarding Rate 1.1 Bpps
Layer Support Layer 2, Layer 3
MAC Address Table Size 290K entries

Physical & Environmental
Width 17.3 in
Depth 20.9 in
Height 1.7 in
Min Operating Temperature 0°C
Max Operating Temperature 45°C
Min Storage Temperature -40°C
Max Storage Temperature 70°C
Fan Slots 6 (empty, field installable)
Power Supply Bays 2 (empty, field installable)
Power Consumption (Max) 469 W

Cloud Management & Licensing
Remote Management Protocols IPv4, IPv6
Management Interface Web-based, CLI, SNMP, REST APIs
Cloud Management ExtremeCloud
Licensing Model Subscription-based, optional feature licenses
Supported Management Features Role-based access control, telemetry, automated provisioning

Interfaces
10/100/1000BASE-T Ports 1 management port
SFP28 Ports 48 x 1G/10G/25G SFP28
QSFP28 Ports 8 x 40G/100G QSFP28
Console Port 1 x RJ-45 Serial Console
USB Port 1 x USB Type A
Management Port 1 x 10/100/1000BASE-T
Jumbo Frame Support Up to 9216 bytes
Data Transfer Rate Up to 100 Gbps per port
Total Ports Count 59
Connectivity Technology Wired

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Standards Compliance IEEE 802.3by, 802.3ba/bm, 802.3ae

Advanced Security Features
Control Plane Protection Yes
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
SSH/HTTPS Support Yes
Port Security Yes
Network Access Control Yes
