ExtremeSwitching 5320-48P-8XE 48-Port PoE+ L3 1RU Switch with 8x10Gb SFP+

VENDOR: EXTREME NETWORK INC Mfg Part#: 5320-48P-8XE UPC#: 644728053247
1 3

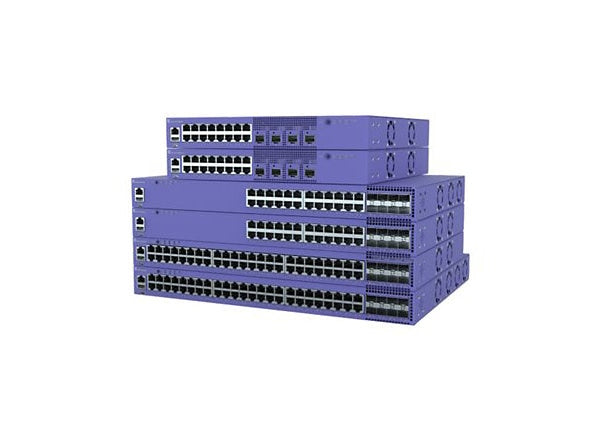

Photo is for illustration purposes only. Actual product may be different.
$8,522.00
$8,522.00
Sale Sold out
MSRP: $12,265.00
Shipping calculated at checkout.
  • 48 x 10/100/1000BASE-T PoE+ (30W) ports for high-density powered device support
  • 8 x 1/10Gb SFP+ uplinks for flexible, high-speed uplink and stacking configurations
  • Supports Layer 3 switching with advanced networking standards including IEEE 802.3ab/at/ae/az
  • MACsec capable for secure encrypted communications over network links
  • PoE power budget of 740W with max power consumption of 924 Watts
  • Stacking support with up to 40Gb per unit and up to eight switches in a stack

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density PoE+ with 48 ports and 740W capacity—ideal for IP phones, cameras, and wireless APs
  • Built-in 10Gb SFP+ uplinks and stacking support enable scalable deployments and future network expansion
  • MACsec security and TAA compliance make it suitable for secure enterprise and government environments

Product Overview

ExtremeSwitching 5320 48x10/100/1000BASET FDX/HDX PoE+ 8x10G unpopulated SFP+ MACSec capable 1x internal fixed PSU fans

Specifications

Product Overview
Type Layer 3 Managed Switch
Form Factor 1RU
Weight 5 Kg
Power Requirements Internal Fixed PSU
PoE Support PoE+
PoE Budget 740W
Stacking Capability Yes, up to 8 units with 40Gb Stacking
MAC Address Table Size 32000
Switching Capacity Up to 176 Gbps
Forwarding Rate 130.95 Mpps

Physical & Environmental
Width 17.3 Inch
Depth 13 Inch
Height 1.7 Inch
Min Operating Temperature 0 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
Power Consumption (Max) 924 Watt
Cooling Internal Fans

Cloud Management & Licensing
Remote Management Protocols IPv4, IPv6
Management Interface ExtremeCloud IQ, CLI, SNMP, Web UI
Cloud Managed Yes, with ExtremeCloud IQ (subscription required)
Licensing Model Cloud subscription (sold separately)

Interfaces
10/100/1000BASE-T PoE+ Ports 48
SFP+ Ports (1/10GbE) 8
Stacking Ports 2 (shared with SFP+)
Serial Console Port 1 x RJ-45
USB Type-A Port 1 x USB-A (management or flash)
USB Micro-B Console Port 1 x USB Micro-B
Data Link Protocol Gigabit Ethernet
Supported Standards IEEE 802.3ab, IEEE 802.3at, IEEE 802.3ae, IEEE 802.3az
Media Type Supported Twisted Pair & Fiber
Networking Ports Total 59 (including uplinks and management)

Compliance & Origin
Country of Origin TAIWAN
TAA Compliance Yes
RoHS Compliant Yes
Certifications EN/IEC/UL 60950-1, FCC Part 15

Advanced Security Features
MACSec Encryption Supported
Port Security Yes
Access Control Lists (ACLs) Yes
RADIUS / TACACS+ Yes
802.1X Authentication Yes
