ExtremeSwitching X465-24W Bundle with 1100W AC PSU and 24x 90W PoE Ports

VENDOR: EXTREME NETWORK INC Mfg Part#: X465-24W-B1
1 5

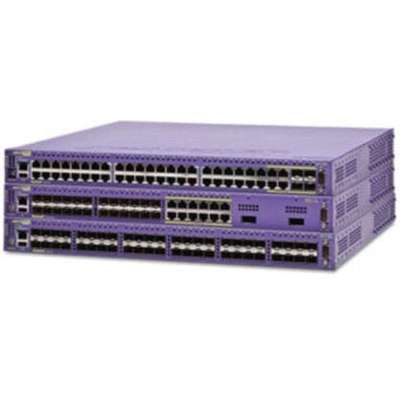

Photo is for illustration purposes only. Actual product may be different.
$12,018.00
$12,018.00
Sale Sold out
MSRP: $17,296.00
Shipping calculated at checkout.
  • - 24 x 10/100/1000BASE-T ports with IEEE 802.3bt Type 4 PoE delivering up to 90W per port
  • - 40 Gbps data transfer rate with Layer 2 traffic management
  • - 1100W AC power supply and dual fan modules included for reliability
  • - Supports MACsec encryption and 272K MAC address table entries
  • - Cloud-managed networking via ExtremeCloud IQ and Site Engine
  • - 2 GB RAM and 8 GB flash memory for high-performance edge processing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Delivers high PoE power (up to 90W/port) to support modern network devices like Wi-Fi 6 APs and CCTV
  • - Integrated ExtremeCloud IQ management enables scalable and intuitive infrastructure deployment
  • - Bundled with essential hardware (PSU, fans, rack kit, license) to reduce total cost and deployment effort

Product Overview

X465-24W with 24 10/100/1000Base-T Full/Half-Duplex 802.3bt Type 4 90W PoE MACsec-capable ports, includes 2 fan modules, 1 VIM5 slot, 1 x 1100W AC PSU FB (10941), rack-mount kit, EXOS Advanced Edge license

Specifications

Product Overview
Product Type Managed Gigabit Ethernet Switch
Model X465-24W-B1
Form Factor 1U Rack-mountable
Weight 7.87 Kg
Power Requirements 100-127/200-240 VAC, 50 Hz to 60 Hz
Power Supply Type Internal AC PSU (1100W)
Redundant Power Support Yes, with optional second PSU
Max Power Consumption 2485 Watt
Processor Type Dual-Core
Installed RAM 2 GB
Flash Memory 8 GB
Operating System ExtremeXOS

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications UL, CB, CE, FCC Class A, VCCI, RoHS
Compliant Standards IEEE 802.3ab, 802.3at, 802.3bt, 802.3bz, 802.3ae

Advanced Security Features
MACsec Support Yes
Port Security Yes
802.1X Authentication Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Access Control Lists (ACLs) Yes

Interfaces
Total Ports 30
10/100/1000Base-T Ports 24 x 802.3bt Type 4 (90W) PoE ports
SFP+ Ports 2 x 1/10Gb SFP+
100G Uplink Ports 2 x 100G QSFP28 (via optional VIM5 module)
Data Transfer Rate 40 Gbps
MAC Address Table Size 272K entries
Jumbo Frame Support Up to 9216 Bytes
Media Layer Supported Layer 2, Layer 3

Physical & Environmental
Width 17.34 Inch
Depth 19.23 Inch
Height 1.70 Inch
Minimum Operating Temperature 0°C
Maximum Operating Temperature 45°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Operating Humidity Range 10% to 95% (non-condensing)
Cooling Field-replaceable fan modules (2 included)
Rack Mount Kit Included

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud IQ
Local Management ExtremeCloud IQ – Site Engine
License Included EXOS Advanced Edge License
Management Protocols IPv4, IPv6, SNMP, SSH, CLI, HTTP/HTTPS
Management Interface Web GUI, CLI, SNMP
