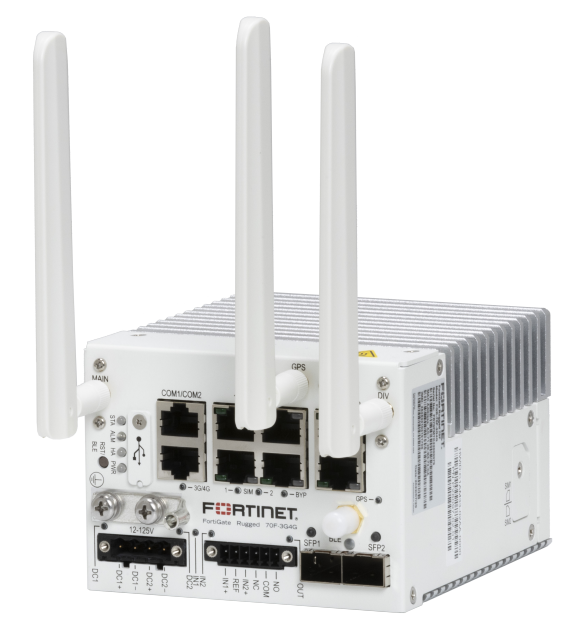

FortiGateRugged-70F with 5-Year FortiCare Premium & FortiGuard Protection

VENDOR: FORTINET Mfg Part#: FGR-70F-BDL-809-60
1 3
Photo is for illustration purposes only. Actual product may be different.
$11,882.00
$11,882.00
Sale Sold out
MSRP: $16,229.00
Shipping calculated at checkout.
  • DIN-rail mountable form factor suitable for industrial environments
  • 12-port wired Ethernet connectivity with Gigabit Ethernet support
  • Firewall throughput of 12 Mbps and IPS throughput of 975 Mbps
  • IPsec VPN throughput of 6.5 Gbps for secure remote access
  • Supports 1 million concurrent sessions and 35,000 new/sec
  • Includes 5-year FortiCare Premium and FortiGuard Enterprise protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Industrial-grade design with DIN-rail mount and wide power input range ensures reliable deployment in OT networks.
  • High throughput metrics and large session capacity support demanding security needs in industrial and critical infrastructure.
  • Comprehensive 5-year support and threat protection package maximize ROI with reduced operational burden.

Product Overview

The Fortinet FortiGateRugged-70F (FGR-70F) is a DIN-rail mountable industrial security appliance engineered for rugged indoor environments. Its advanced performance includes 12 Mbps firewall throughput, 6.5 Gbps VPN throughput, and 975 Mbps IPS throughput, supporting up to 1 million concurrent sessions and 35,000 new sessions per second. Featuring Gigabit Ethernet connectivity across 12 wired ports, it offers seamless, high-speed operation in critical network infrastructure. The unit is compact and efficient, consuming a maximum of 18 watts and accepting a versatile +/-12V to 125V voltage input. Included is a 5-year subscription to FortiCare Premium and FortiGuard Enterprise Protection, enhancing long-term operational support and cyberthreat defense.

Specifications

Product Overview
Product Type Network Firewalls
Model FGR-70F
Form Factor DIN-rail
Type Industrial Security Appliance
Weight 1.37 lbs (0.62 kg)
Power Requirements +/-12V to 125V DC
Max Power Consumption 18 Watt
Environment Indoor

Wireless Features
Wi-Fi Support

Compliance & Origin
RoHS Y
TAA Compliance Inquire
Country of Origin Inquire
Certifications FCC Class A, UL/CB, CE, RCM, IC
Safety Compliance IEC 62368-1, EN 62368-1
EMI/EMC Standards EN 55032 Class A, EN 55024
Hazardous Locations IEC/EN 60079-0, IEC/EN 60079-15

Advanced Security Features
Firewall Throughput 12 Mbps
VPN IPSec Throughput 6.5 Gbps
IPS Throughput 975 Mbps
Concurrent Sessions 1M
New Sessions Per Second 35000
Application Control Yes
Intrusion Prevention System (IPS) Yes
Antivirus & Antimalware Yes
Web Filtering Yes
SSL Inspection Yes
Threat Intelligence FortiGuard Labs

Interfaces
Networking / Ports Qty 12
Interface Types 10/100/1000 Base-T Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Management Port 1 x RJ-45
Console Port 1 x RJ-45
USB Ports 1 x USB Type A 2.0

Physical & Environmental
Width 3.2 Inch
Depth 4.4 Inch
Height 4.8 Inch
Operating Temperature -40°C to 75°C
Storage Temperature -45°C to 85°C
Operating Humidity 5% to 95% non-condensing
Mounting Type DIN-Rail Mountable
Cooling Type Fanless
Enclosure Rating IP30
Mean Time Between Failures (MTBF) 419,147 hours

Cloud Management & Licensing
Management Interface FortiOS Web GUI, CLI, FortiManager
Included Subscriptions 5-Year FortiCare Premium and FortiGuard Enterprise Protection
Cloud Features FortiCloud Centralized Management & Logging
License Term 5 Years
