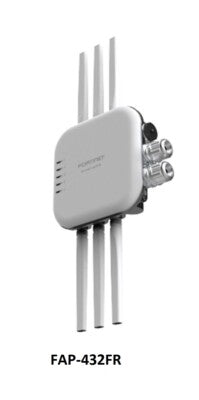

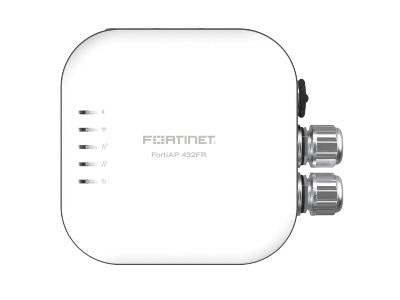

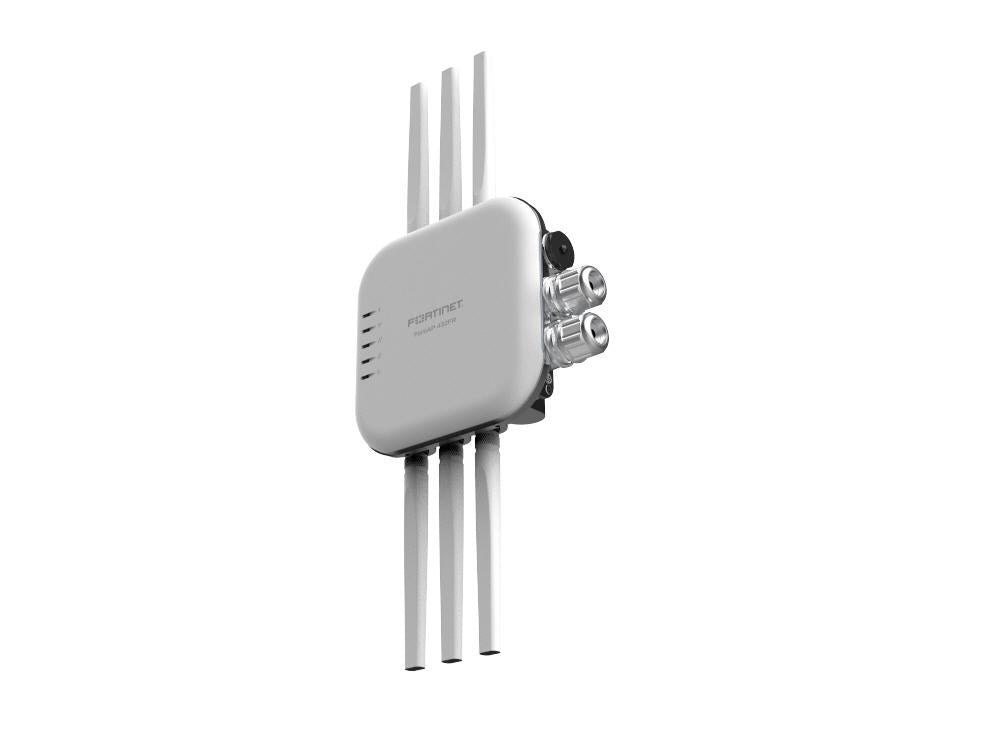

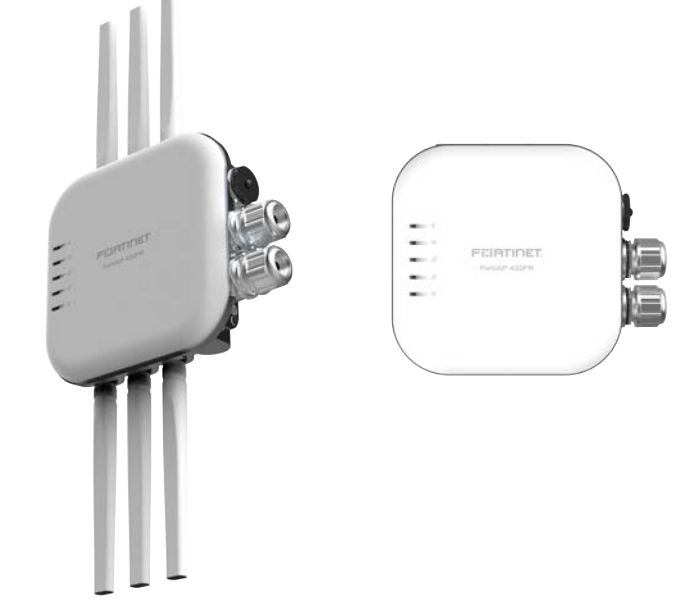

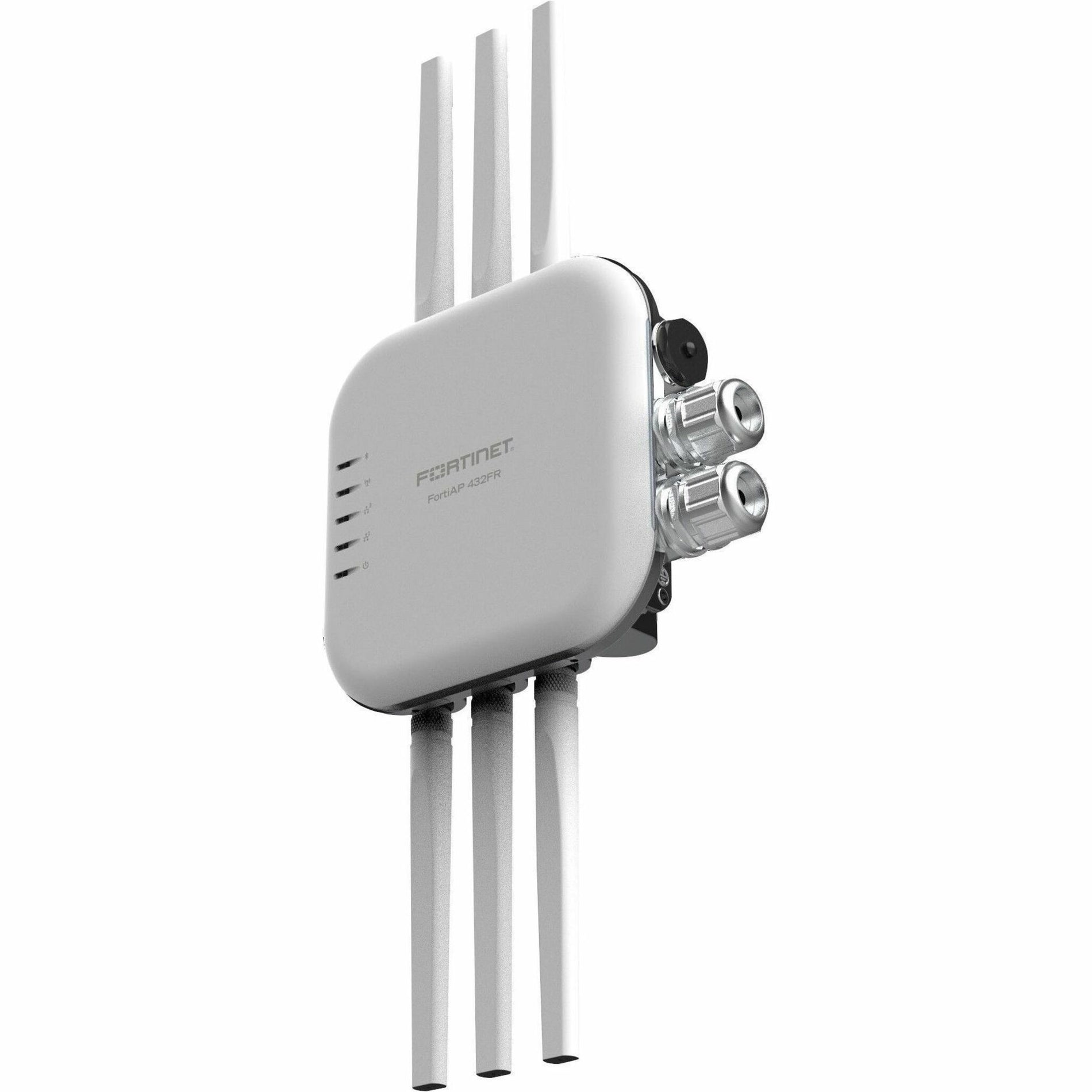

FORTINET FAP-432FR Outdoor Wireless Tri-Radio Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-B
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,070.00
$2,070.00
Sale Sold out
MSRP: $2,824.00
Shipping calculated at checkout.
  • - Outdoor-rated tri-radio wireless access point with 4x4 and 2x2 support
  • - Compatible with 802.11a/b/g/n/ac/ax wireless standards including Wave 2
  • - UL Class 1 Division 2 certified for hazardous industrial environments
  • - 1x 2.5GbE and 1x 1GbE RJ45 port for enhanced wired connectivity
  • - Integrated Bluetooth/BLE and Zigbee support for IoT readiness
  • - External dual-band N-type antennas with wall/pole mount kit included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for hazardous locations with UL Class 1 Division 2 compliance, making it ideal for industrial deployments.
  • Tri-radio design provides exceptional wireless performance and flexibility across multiple frequency bands.
  • Includes integrated BLE, Zigbee, USB, and serial interfaces to support industrial IoT applications and diverse use cases.

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE B

Specifications

Product Overview
Product Type Wireless Tri-Radio Access Point
Model FAP-432FR-B
Form Factor Outdoor, Wall or Pole-Mountable
Enclosure UL Class I, Division 2 Rated Ruggedized Design
Power Requirements 802.3at PoE or External AC Adapter (SP-FAP400-PA)
Power Consumption 26.5W (maximum)
Mounting Options Integrated bracket + wall/pole mount kit included
Weight 2.5 kg (approximate)

Wireless Features
Wireless Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Radio Configuration Tri-Radio (1x 4x4 2.4 GHz, 1x 4x4 5 GHz, 1x 2x2 dual-band)
MIMO Support 4x4 MU-MIMO and 2x2 MU-MIMO
Maximum Data Rate Up to 2.4 Gbps (theoretical maximum)
Antenna Type External dual-band N-type omni-directional antennas
Antenna Gain 5 dBi (typical, per band)
Frequency Bands 2.4 GHz and 5 GHz
Wi-Fi Security WPA3, WPA2, WPA
Band Steering Supported
Fast Roaming 802.11r/k/v support

Compliance & Origin
Country of Origin Taiwan
Safety Certifications UL 62368-1, CAN/CSA C22.2 No. 62368-1
EMC Certifications FCC Part 15B/C/E, EN 301 489-1/17, EN 55032/55024
Environmental Compliance RoHS, REACH

Advanced Security Features
Integrated Firewall Controlled by FortiGate
WIDS/WIPS Supported
Application Control Available via FortiGate integration
Malware Protection Available via FortiGate UTM

Interfaces
Primary Ethernet Port 1x 10/100/1000/2500 Mbps RJ45
Secondary Ethernet Port 1x 10/100/1000 Mbps RJ45
USB Port 1x USB Type-A
Console Port 1x RS-232 RJ45
Bluetooth Low Energy Integrated BLE support
Zigbee Interface Integrated Zigbee radio

Physical & Environmental
Dimensions (H x W x D) 245 x 205 x 65 mm
Operating Temperature -40°C to +65°C
Storage Temperature -40°C to +70°C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Flame Rating UL 2043 plenum-rated

Cloud Management & Licensing
Management Interface FortiGate Controller, FortiCloud
Zero-Touch Deployment Supported via FortiCloud
Cloud Services Included Requires FortiCloud subscription for advanced services
Controller-Based Management FortiOS Wireless Controller supported
