Fortinet FGR-60F Firewall with 1YR FortiCare & FortiGuard Bundle

VENDOR: FORTINET Mfg Part#: FGR-60F-BDL-809-12
1 3

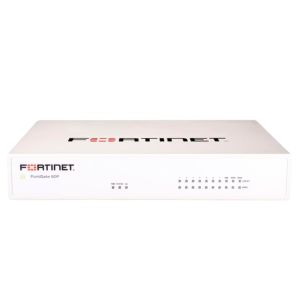

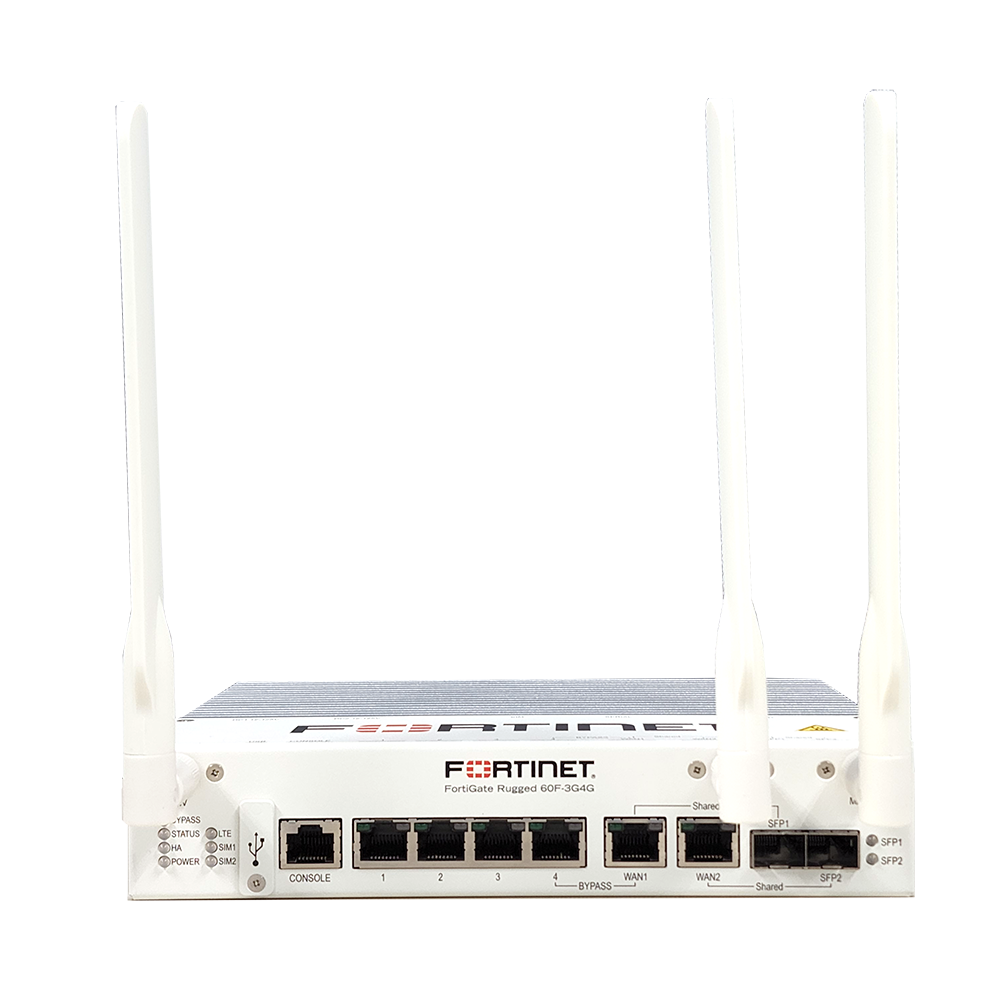

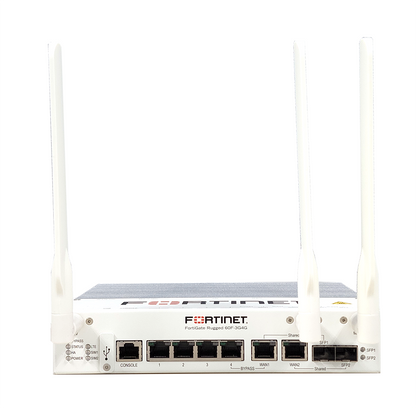

Photo is for illustration purposes only. Actual product may be different.
$4,365.00
$4,365.00
Sale Sold out
MSRP: $5,958.00
Shipping calculated at checkout.
  • VPN IPSec throughput of 3.5 Gbps for high-speed secure communication
  • Intrusion Prevention System (IPS) throughput of 950 Mbps for threat mitigation
  • Support for 600,000 concurrent sessions and 19,000 new sessions/sec
  • 10 Gigabit Ethernet ports for flexible, high-bandwidth connectivity
  • Compact and power-efficient design with max 21W consumption
  • Operating voltage range of +/-12V to 125V for industrial use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes 1 year of FortiCare Premium and FortiGuard Enterprise Protection for comprehensive security and support
  • Supports enterprise-level session handling with up to 600,000 concurrent sessions—ideal for high-demand networks
  • Gigabit Ethernet connectivity with 10 ports ensures high-capacity routing and flexible deployment

Product Overview

The Fortinet FortiGateRugged-60F (FGR-60F) is a versatile network security platform engineered for industrial and rugged applications. Bundled with a one-year subscription to FortiCare Premium and FortiGuard Enterprise Protection services, it provides advanced security features including comprehensive threat intelligence, real-time updates, and 24/7 technical support. With a VPN IPSec throughput of 3.5 Gbps and IPS throughput of 950 Mbps, the FGR-60F ensures fast and secure data transmissions across Ethernet network infrastructures.

Equipped with 10 Gigabit Ethernet ports, the unit supports high connectivity and performance in a compact form factor (8.5 x 6.7 x 1.68 inches). It handles up to 600,000 concurrent sessions and 19,000 new sessions per second, allowing robust traffic handling in demanding network conditions. The power-efficient design consumes just 21 watts and operates across a wide voltage range (+/-12V to 125V), making it suitable for diverse installations. RoHS compliant and designed for indoor environments, this model offers durability with enterprise-grade security capabilities.

This product is ideal for industries seeking secure, continuous data flow in environments with limited space or power constraints. Its all-inclusive bundle provides not only the hardware but also vital security services, offering a high return on investment while minimizing risk and downtime.

Specifications

Product Overview
Product Type Network Firewalls
Model FGR-60F
Form Factor Desktop, Ruggedized
Weight 2.0 lbs (approximate)
Max Power Consumption 21 Watt
Power / Voltage Required +/-12V to 125V DC
Environment Indoor
Service & Support Type 1 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION

Wireless Features
Integrated Wireless No

Compliance & Origin
RoHS Y
TAA compliance Inquire
Country of Origin Inquire
Certifications FCC, CE, UL, CB, IEC 62368-1, IEC 61000-6-2 and 61000-6-4

Advanced Security Features
VPN IPSec Throughput 3.5 Gbps
IPS Throughput 950 Mbps
Firewall Throughput 1 Gbps
Threat Protection Throughput 700 Mbps
Concurrent Sessions 600000
New Sessions Per Second 19000
Firewall Features Policy-based, Application Control, Web Filtering, SSL Inspection
Intrusion Prevention System (IPS) Yes
Antivirus / Anti-Malware Yes
Application Control Yes
Content Filtering Yes
Malware Protection Real-time via FortiGuard
Sandboxing Support Supported via FortiSandbox (Cloud or On-prem)

Interfaces
Networking Type Ethernet
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 10
Console Port(s) 1 x RJ-45 Console Port
USB Ports 1 x USB Type-A
WAN Ports 2 x GE RJ45
LAN Ports 7 x GE RJ45
DMZ Port(s) 1 x GE RJ45

Physical & Environmental
Width 8.5 Inch
Depth 6.7 Inch
Height 1.68 Inch
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -45°C to 85°C (-49°F to 185°F)
Humidity (Operating) 5% to 95% non-condensing
Enclosure Type Solid-state, fanless, rugged enclosure
Mounting Type Desktop or DIN-rail

Cloud Management & Licensing
Management Interface FortiOS via Web UI, CLI, FortiManager
Cloud Management Supported via FortiCloud
Licensing Model Subscription-based, 1-year FortiCare Premium & FortiGuard Enterprise
