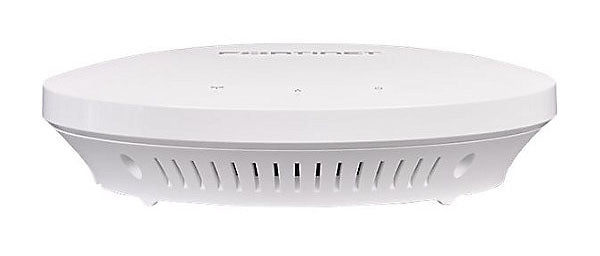

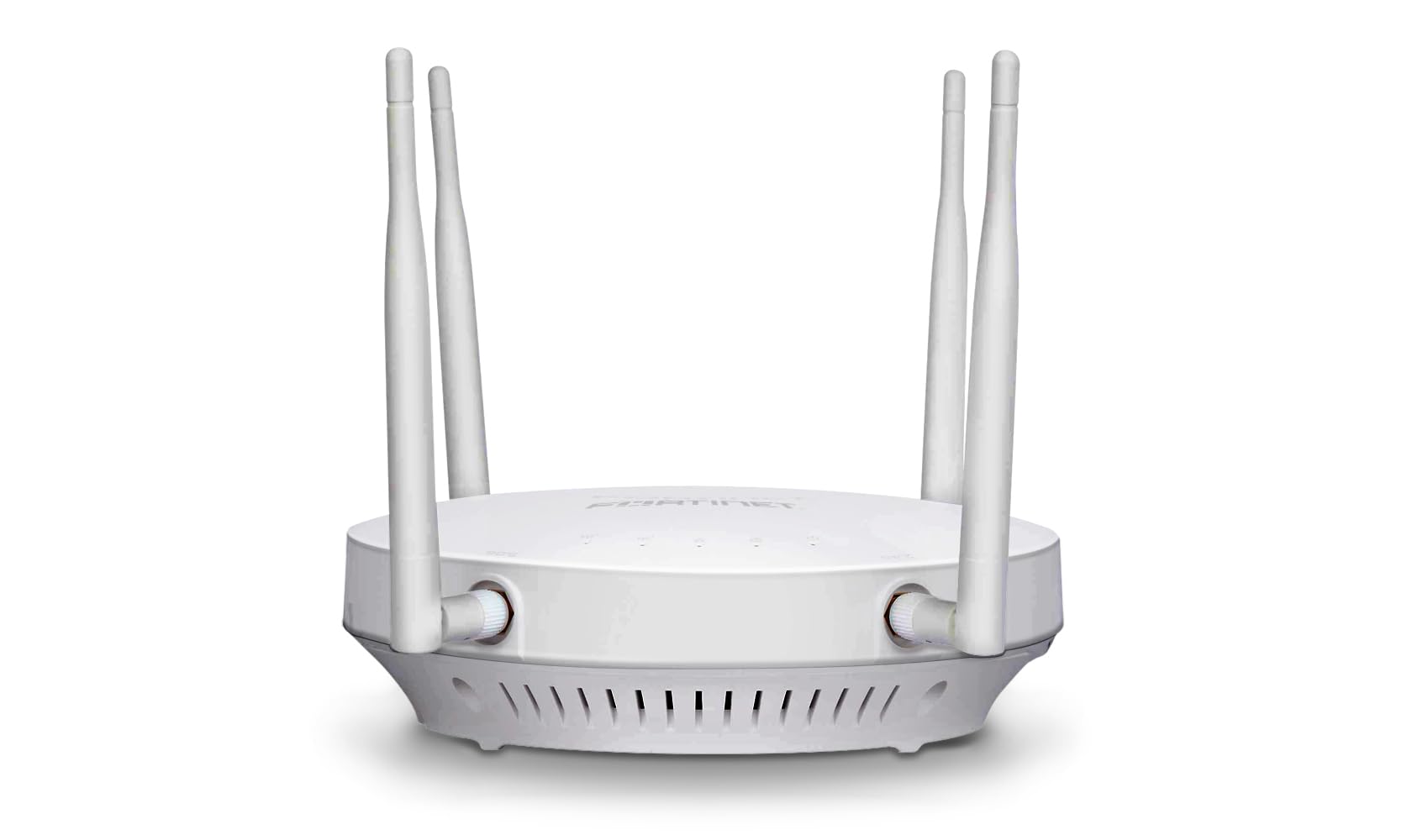

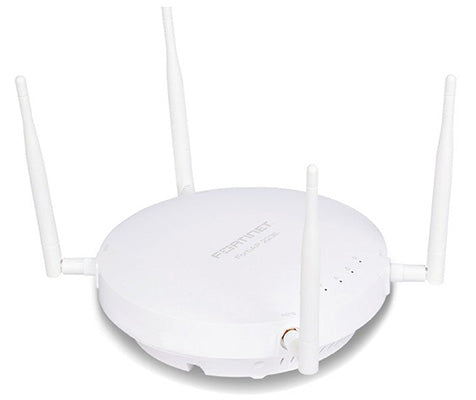

FORTINET FortiAP 223E Indoor Wireless Access Point, Dual-Radio

VENDOR: FORTINET Mfg Part#: FAP-223E-C
1 3
Photo is for illustration purposes only. Actual product may be different.
$250.00
$250.00
Sale Sold out
MSRP: $338.00
Shipping calculated at checkout.
  • Dual-radio operation across 2.4 GHz and 5 GHz supporting 802.11ac Wave 2
  • 2x2 MU-MIMO for concurrent multi-user throughput
  • 1 Gbps RJ-45 port for high-speed wired connectivity
  • Bluetooth/BLE support for IoT and proximity applications
  • RoHS compliant and limited lifetime warranty
  • External antennas and wall/ceiling mount kit included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports modern 802.11ac Wave 2 standard with 2x2 MU-MIMO for efficient wireless traffic management
  • Includes external antennas and BLE capabilities for versatile wireless and IoT applications
  • Covered by a limited lifetime warranty, assuring long-term deployment value

Product Overview

The FORTINET FortiAP 223E is a high-efficiency indoor wireless access point engineered to deliver fast, reliable performance in enterprise and business networking environments. Featuring dual-radio support across 2.4 GHz and 5 GHz frequency bands, it supports the latest 802.11ac Wave 2 standard with 2x2 MU-MIMO, enabling simultaneous multi-user data streaming. This optimizes bandwidth usage and improves performance in high-density user scenarios, such as offices, retail environments, and classrooms.

Equipped with a 1 Gbps Gigabit Ethernet port, the FortiAP 223E ensures stable wired backhaul while offering flexible deployment options using Power over Ethernet (802.3af). Optional power accessories include the GPI-115 PoE injector or SP-FAP200-PA AC adapter. External antennas provide enhanced signal coverage, and Bluetooth/BLE functionality supports IoT integrations and asset tracking use cases. With its compact form factor (6.3 x 6.3 x 1.85 inches) and included wall/ceiling mounting kit, the AP is easy to install, fitting seamlessly into any indoor space.

The device is RoHS compliant and backed by a limited lifetime warranty, ensuring long-term reliability and regulatory adherence. Designed and manufactured in Taiwan, the FortiAP 223E is optimal for organizations investing in secure, scalable WLAN infrastructure.

Specifications

Product Overview
Product Type Access Point
Environment Indoor
Form Factor Wall/Ceiling Mountable
Radio Count Dual
MIMO Type 2x2 MU-MIMO
Model FortiAP 223E
Power Requirements 802.3af PoE or external adapter
Power Supply Option (PoE Injector) GPI-115 (optional)
Power Supply Option (AC Adapter) SP-FAP200-PA (optional)
Max Power Consumption 12.36 Watt
Weight 0.881 lb (0.4 kg)

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac Wave 2
Frequency Band 2.4 GHz; 5 GHz
MU-MIMO Support Yes – 2x2 MU-MIMO
Spatial Streams 2
Antenna Type External antennas
Antenna Gain 2.4 GHz: 4 dBi, 5 GHz: 5 dBi
Bluetooth Functionality Yes – Bluetooth Low Energy (BLE)

Compliance & Origin
RoHS Y
Compliance Standards FCC Part 15B/C/E, ICES-003, CE
Certifications Wi-Fi Alliance Certified, FCC, CE, UL
Country of Origin TAIWAN

Advanced Security Features
Integrated Firewall Yes, when managed via FortiGate
WIDS/WIPS Yes
Application Visibility Yes
802.1X Authentication Supported
Encryption Protocols WEP, WPA, WPA2, WPA3
Access Control Role-based and SSID-level control

Interfaces
Networking Type Ethernet
Connectivity Technology Wireless
Networking / Ports Qty 1
Interface Type 1x 10/100/1000Base-T (RJ-45), PoE
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 6.3 Inch
Depth 6.3 Inch
Height 1.85 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface FortiGate Controller and FortiCloud
Cloud Management Supported via FortiCloud
License Required No (Managed by FortiGate or FortiCloud)
