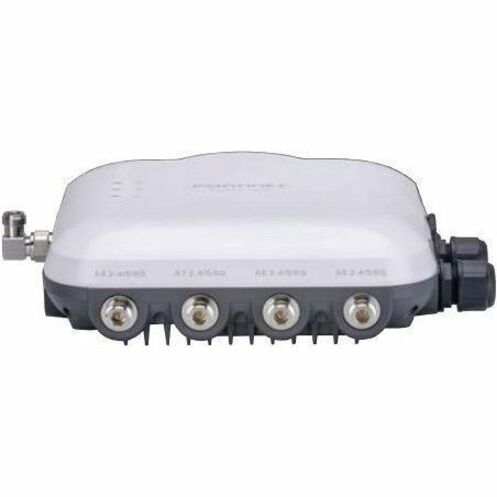

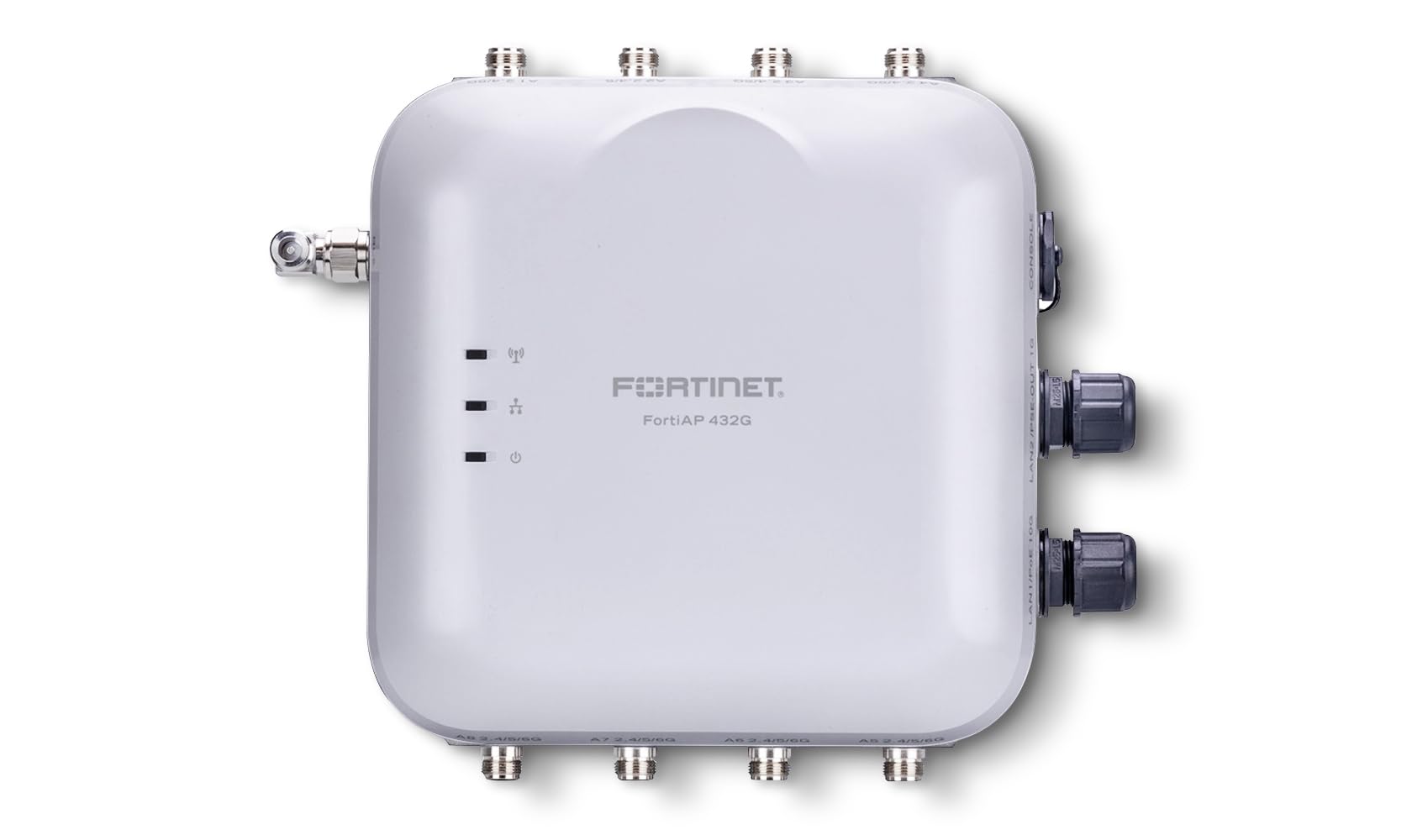

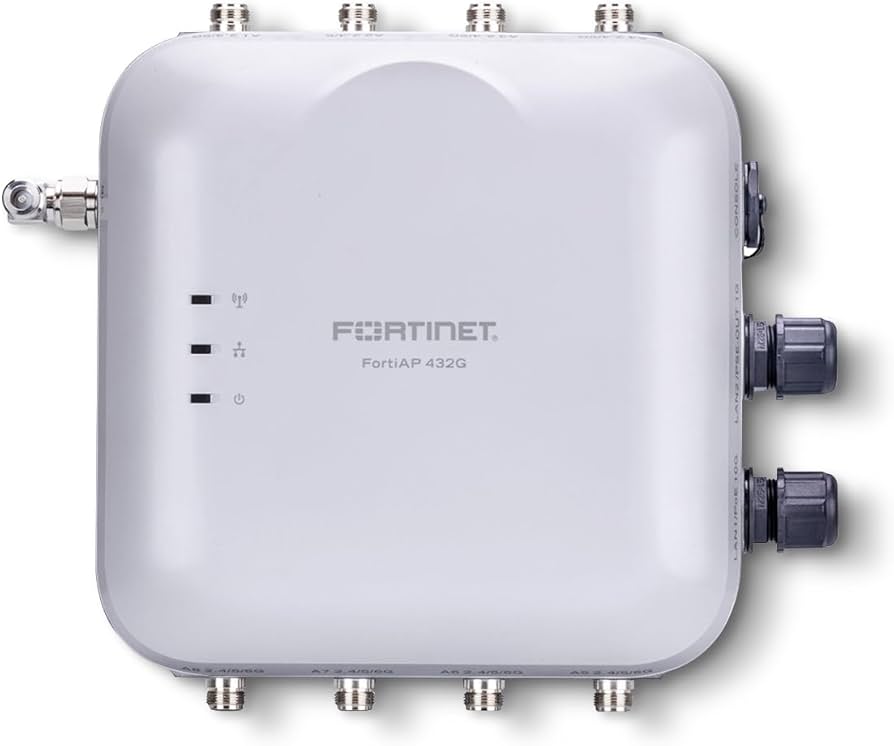

FORTINET FortiAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-S
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,685.00
$2,685.00
Sale Sold out
MSRP: $3,655.00
Shipping calculated at checkout.
  • Tri-radio design: 1x 4x4 802.11b/g/n/ax, 1x 4x4 802.11a/n/ac/ax, and 1x 2x2 802.11a/b/g/n/ac/ax (6GHz)
  • Supports Wi-Fi 6E performance (6GHz availability subject to regulation)
  • Outdoor-grade construction for rugged deployment environments
  • Multi-band functionality allows simultaneous operation on 2.4GHz, 5GHz, and 6GHz
  • Manufactured in TAIWAN

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Tri-radio configuration enhances spectral efficiency and supports high-density deployments.
  • Outdoor-ready design adds network flexibility for industrial and large-scale enterprise environments.
  • Supports multiple Wi-Fi standards including Wi-Fi 6E, ensuring future-ready wireless infrastructure.

Product Overview

The FORTINET FortiAP-432G is an enterprise-grade outdoor wireless access point designed for high-performance connectivity in rugged environments. It features tri-radio architecture with 4x4 and 2x2 support across the 2.4GHz, 5GHz, and 6GHz bands, aligning with 802.11ax and Wi-Fi 6E standards. Integrated with Fortinet's ecosystem, this device supports scalable deployments with centralized security management. Note that the 6GHz band may not be available in all regions due to regulatory limits. Ideal for deployments in smart cities, industrial networks, and enterprise-grade outdoor setups.

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model Name FortiAP-432G
Product Series FortiAP
Manufacturer Fortinet
Form Factor Outdoor, Tamper-resistant Rugged Enclosure
Wireless Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6/6E)
Radio Configuration Tri-Radio (2x2 + 2x2 + 4x4)
Supported Bands 2.4GHz, 5GHz, 6GHz
Maximum Data Rate 10.2 Gbps aggregate throughput
Power Requirements 802.3at PoE+ or 802.3bt PoE++
Power Consumption 25.2W (maximum)
Mounting Options Wall, ceiling, pole mount kit included

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Number of Spatial Streams Up to 10
MIMO Configuration 4x4 MU-MIMO (5GHz), 2x2 MU-MIMO (2.4GHz/6GHz)
External Antennas 4 integrated antennas per radio
Frequency Bands 2.4 GHz / 5 GHz / 6 GHz
Maximum Clients Supported 512 per radio
Band Steering Yes
Beamforming Support Yes

Compliance & Origin
Country of Origin Taiwan
Regulatory Compliance FCC Part 15, CE, IC
Certifications Wi-Fi Alliance Certified, RoHS, WEEE

Advanced Security Features
Integrated Security Yes, with FortiGate integration
Application Control Yes (with FortiGate)
WIDS/WIPS Capabilities Supported
Rogue AP Detection Yes
Encrypted Traffic Inspection Yes, via FortiGate integration
Client Isolation Yes
802.1X Authentication Supported with RADIUS integration

Interfaces
Ethernet Ports 2 x 2.5G Ethernet RJ45 ports
PoE Input 1x 802.3at/bt PoE In
Console Port 1x RJ45 Console Port
Pass-through Port 1x PoE pass-through port (with 802.3bt input)
Data Transfer Rates Up to 2.5 Gbps per Ethernet port

Physical & Environmental
Dimensions (W x D x H) 287 x 160 x 84 mm (11.3 x 6.3 x 3.3 in)
Weight 2.1 kg (4.6 lbs)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
IP Rating IP67 (Dust tight and Water-resistant)

Cloud Management & Licensing
Centralized Management Platform FortiCloud, FortiGate Controller, FortiLAN Cloud
Licensing Model Subscription-based
Included Management Features Zero-touch provisioning, role-based access control, device health monitoring
