Products Network Stuff Fortinet FortiAP-432G Outdo...

Fortinet FortiAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-V
1 3

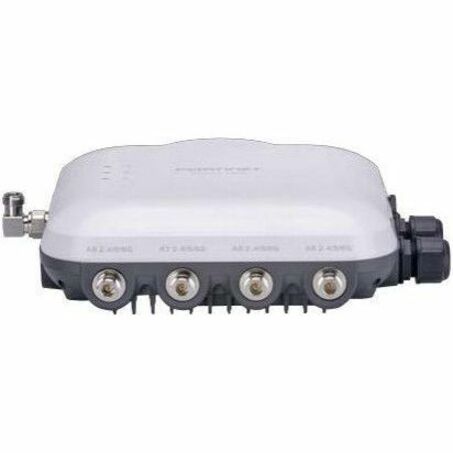

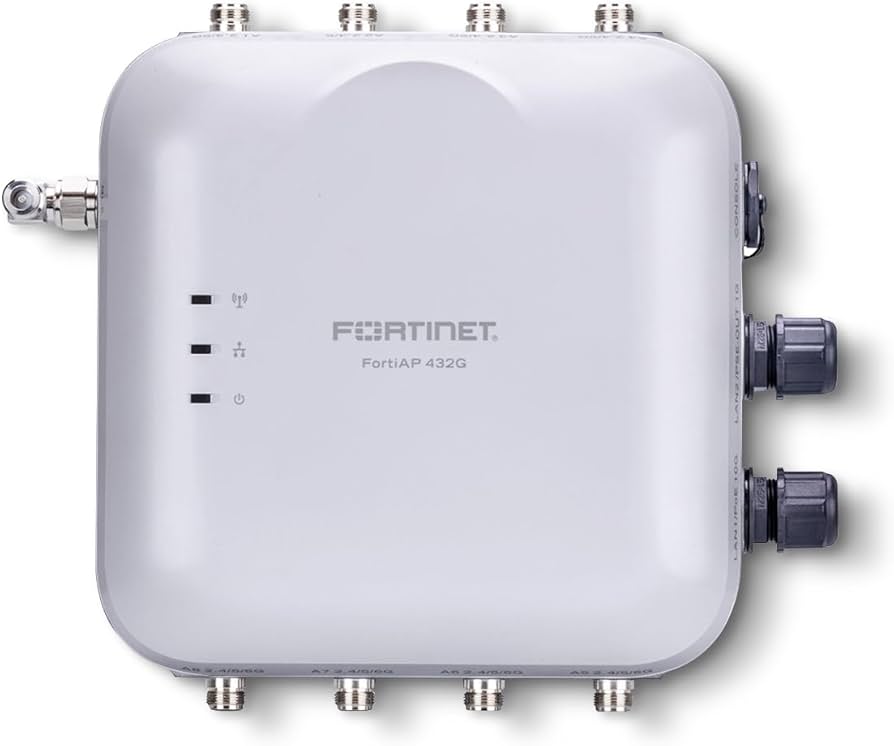

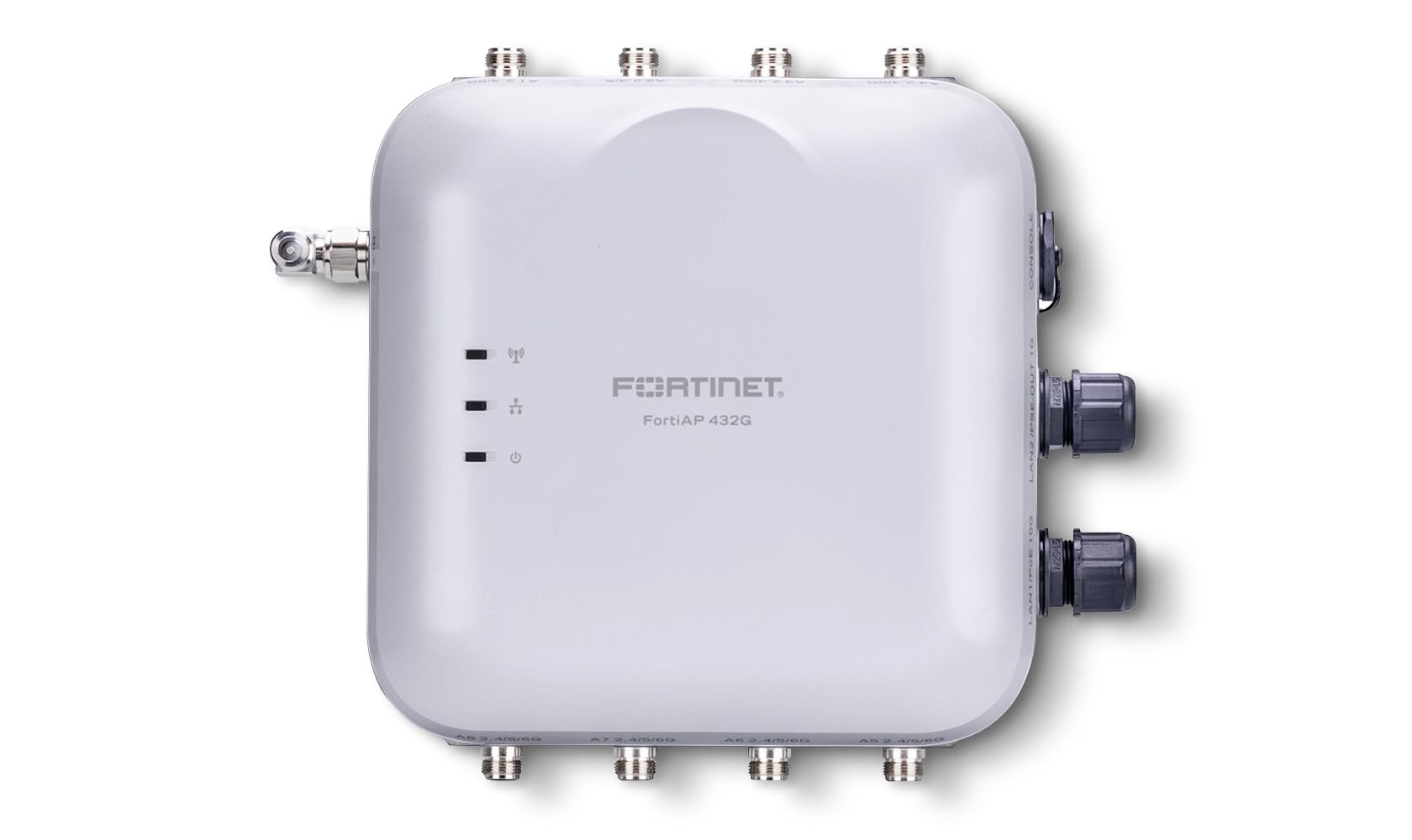

Photo is for illustration purposes only. Actual product may be different.
$2,675.00
$2,675.00
Sale Sold out
MSRP: $3,654.00
Shipping calculated at checkout.
  • Tri-radio design: 1x 2.4GHz 4x4, 1x 5GHz 4x4, 1x 6GHz 2x2 (Wi-Fi 6 compatible)
  • Outdoor-rated construction for deployment flexibility
  • Supports 802.11a/b/g/n/ac/ax wireless standards
  • 6GHz band support (availability depends on regional regulations)
  • Manufactured in Taiwan
  • Part of Fortinet's FortiAP series with centralized management

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Tri-radio architecture enhances performance across 2.4GHz, 5GHz, and 6GHz spectrums, reducing interference and congestion.
  • Outdoor durability and Wi-Fi 6 support make it ideal for industrial or high-density environments.
  • Seamless integration with Fortinet Security Fabric offers centralized control and enhanced network security.

Product Overview

The Fortinet FortiAP-432G is a tri-radio outdoor wireless access point equipped with one 802.11b/g/n/ax 4x4 radio, one 802.11a/n/ac/ax 4x4 radio, and a 6GHz-capable 2x2 radio supporting 802.11a/b/g/n/ac/ax standards. Built for Wi-Fi 6 connectivity, this device delivers high performance and reliability in campus, industrial, and municipal deployments. It integrates into the Fortinet Security Fabric for simplified management and policy enforcement. Made in Taiwan, the FortiAP-432G supports advanced spectrum distribution with regulatory region awareness for 6GHz operation, optimizing outdoor wireless infrastructures.

Specifications

Product Overview
Product Type Wireless Access Point
Model FortiAP-432G
Manufacturer Fortinet
Form Factor Outdoor
Product Family FortiAP
Wi-Fi Generation Wi-Fi 6 (802.11ax)
Power Method Power over Ethernet (PoE)
Power Consumption (Max) 22.6 W
PoE Standard 802.3at (PoE+)
Mounting Options Wall, Pole

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Operating Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Number of Radios 3 (Tri-Radio)
Radio 1 4x4 MIMO 802.11b/g/n/ax (2.4 GHz)
Radio 2 4x4 MIMO 802.11a/n/ac/ax (5 GHz)
Radio 3 2x2 MIMO 802.11ax (6 GHz)
MIMO Configuration 4x4 + 4x4 + 2x2
Maximum Data Rate (2.4GHz) 1147 Mbps
Maximum Data Rate (5GHz) 2402 Mbps
Maximum Data Rate (6GHz) 2402 Mbps
Band Steering Yes
Antenna Type Internal omnidirectional antennas

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, CE, IC, UL, CB, Wi-Fi 6 Certified
Regulatory Region Awareness Supported for 6 GHz operation

Advanced Security Features
Security Fabric Integration Yes
WIDS/WIPS Supported
Rogue AP Detection Yes
Client Monitoring & Reporting Yes
Application Visibility Yes
802.1X Authentication Supported
Advanced Threat Protection Integrated via FortiGate (subscription required)

Interfaces
Ethernet Ports 2 x 1G/2.5G BASE-T (RJ45), 1 x 1000 BASE-X (SFP)
Console Port 1 x RJ45
LAN Speed Support 10/100/1000/2500 Mbps
PoE Input Port 1 x RJ45 (supports 802.3at)
Data Transfer Rate Up to 6.3 Gbps aggregate throughput

Physical & Environmental
Dimensions (W x D x H) 270 x 270 x 58 mm
Weight 2.66 kg
Enclosure Type IP67-rated weatherproof casing
Operating Temperature -40°C to 65°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 95% non-condensing
Protection Rating IP67

Cloud Management & Licensing
Management Options FortiGate Controller (FGCP), FortiLAN Cloud
Controller-less Operation Yes
Cloud-Based Management Supported via FortiCloud
Zero Touch Deployment Supported
Licensing Model Subscription-based for advanced features
Included Licenses License-free when managed by FortiGate
