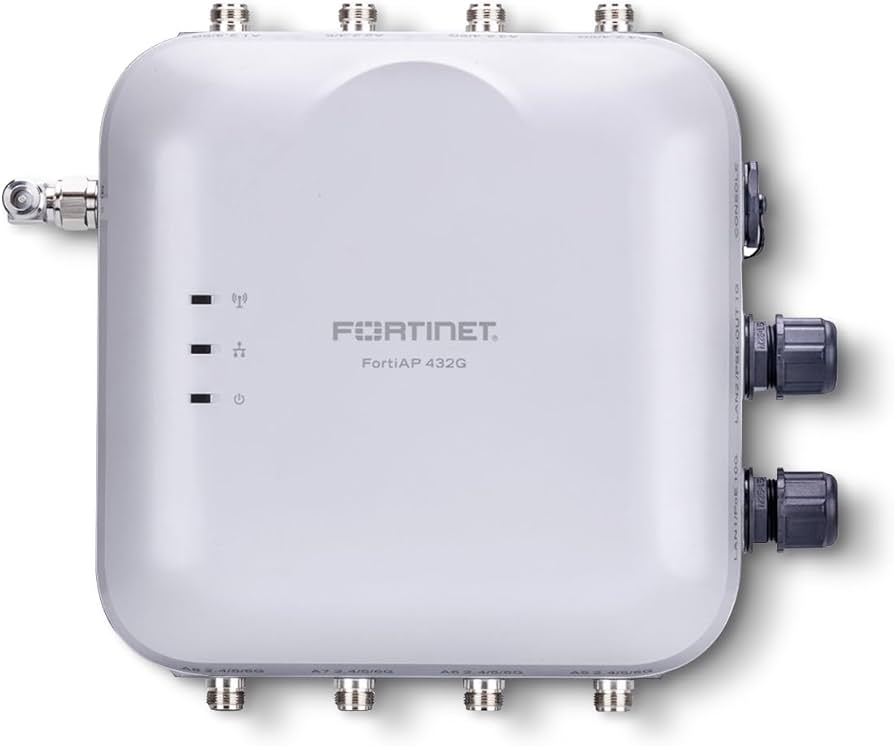

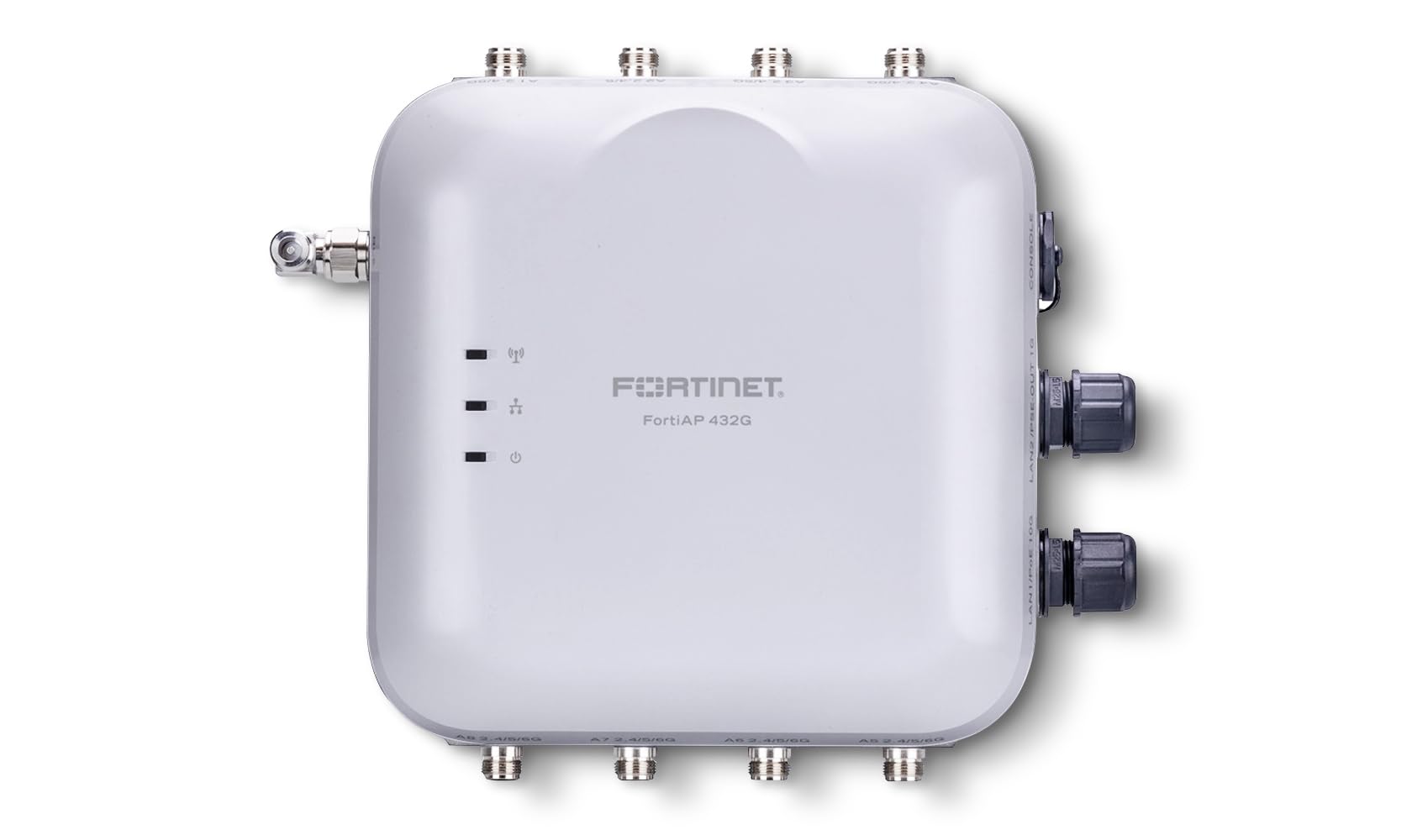

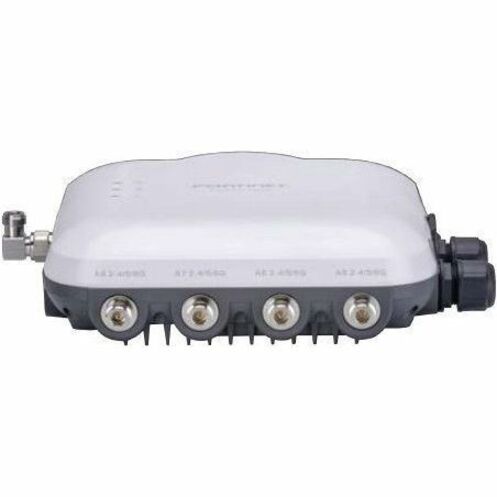

Fortinet FortiAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-I
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,675.00
$2,675.00
Sale Sold out
MSRP: $3,654.00
Shipping calculated at checkout.
  • - Tri-radio configuration: 4x4 802.11b/g/n/ax, 4x4 802.11a/n/ac/ax, and 2x2 802.11a/b/g/n/ac/ax (6GHz)
  • - Supports Wi-Fi 6 across 2.4GHz, 5GHz, and limited 6GHz bands
  • - Designed for outdoor deployment with weather-resistant construction
  • - Integrates with Fortinet FortiGate ecosystem for centralized management
  • - Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Advanced 3-radio setup delivers optimal performance and coverage for high-density outdoor environments.
  • - Wi-Fi 6 and 6GHz readiness future-proofs wireless infrastructure investments.
  • - Seamless Fortinet ecosystem integration ensures robust security and simplified management.

Product Overview

The Fortinet FortiAP-432G is a high-performance, tri-radio outdoor wireless access point designed to meet modern enterprise Wi-Fi needs. Featuring Wi-Fi 6 (802.11ax) support, it includes three radios: a 4x4 802.11b/g/n/ax radio, a 4x4 802.11a/n/ac/ax radio, and a 2x2 6GHz-capable 802.11 a/b/g/n/ac/ax radio (regional availability dependent). This setup enhances coverage and client concurrency in high-density areas. Built for outdoor deployment, it integrates with FortiGate controllers for centralized management and advanced security. Manufactured in Taiwan, it supports scalable, secure, and high-throughput wireless networks in diverse environments.

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model FortiAP-432G
Form Factor Outdoor, Wall/Pole Mountable
Radios Tri-Radio (2x 4x4 + 1x 2x2)
Wi-Fi Generation Wi-Fi 6 (802.11ax)
Dedicated Security Radio Yes (Tri-Radio includes dedicated scan radio)
Power Consumption Up to 25.5W
Power Input 802.3at PoE+ or 802.3bt PoE++
Mounting Options Wall and pole mounting kit included
Weight 1.9 kg (4.2 lbs)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Frequency Bands 2.4 GHz, 5 GHz, and 6 GHz (tri-band)
MIMO 4x4 for 2.4 GHz and 5 GHz; 2x2 for 6 GHz
Max Clients per Radio 512 clients (total across radios)
Spatial Streams 4 per radio (except 6 GHz radio with 2)
Antenna Type Integrated Omni-directional Antennas
Max TX Power 26 dBm per radio (dependent on regulatory domain)
MU-MIMO Support Yes, DL and UL MU-MIMO supported
OFDMA Support Yes (802.11ax feature)
Beamforming Supported

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, CE, IC, RCM, CB, UL, WEEE, RoHS
Safety Compliance EN 62368-1, UL 62368-1

Advanced Security Features
WIDS/WIPS Supported
Role-Based Access Control Yes
Application Visibility Yes, via FortiGate integration
Rogue AP Detection Yes
Content Filtering Via FortiGate Service
Malware Protection Supported via integration with Fortinet Security Fabric

Interfaces
Wired Ethernet Ports 2 x 1/2.5/5 Gbps Ethernet (RJ-45)
Secondary Ethernet Port 1 x 1 Gbps Ethernet (RJ-45); PoE-Passthrough capable
Console Port 1 x RJ-45 Serial Console Port
Data Transfer Rate Up to 8.35 Gbps aggregate
PoE Passthrough Supported on secondary port (when powered by 802.3bt)

Physical & Environmental
Dimensions (H x W x D) 70 x 210 x 210 mm (2.76 x 8.27 x 8.27 in)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Enclosure Material UV-resistant Plastic

Cloud Management & Licensing
Controller Compatibility FortiGate, FortiLAN Cloud, FortiWLC
Management Interface FortiOS via FortiGate; FortiCloud
Licensing Model Requires FortiGate license or FortiCloud subscription
Included Cloud Features Zero-touch deployment, remote monitoring, analytics
