Products Network Stuff Fortinet FortiGate-100F wit...

Fortinet FortiGate-100F with 3YR FortiCare & FortiGuard, 10Gbps Firewall

VENDOR: FORTINET Mfg Part#: FG-100F-BDL-809-36 UPC#: 195875222494
1 3

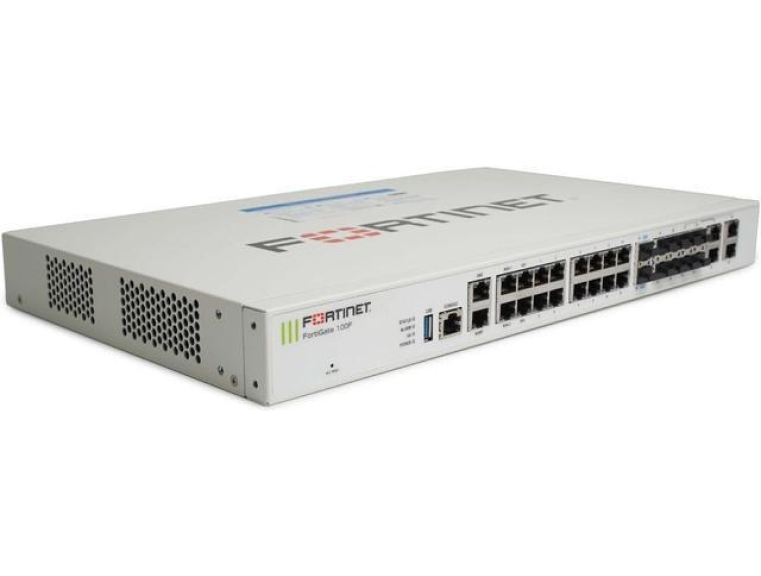

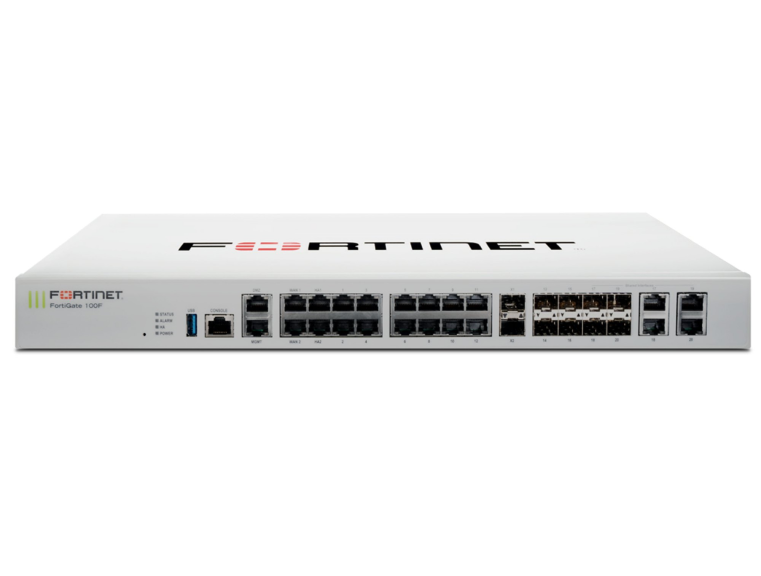

Photo is for illustration purposes only. Actual product may be different.
$9,114.00
$9,114.00
Sale Sold out
MSRP: $12,441.00
Shipping calculated at checkout.
  • Up to 10 Gbps Ethernet data transfer rate
  • 11.5 Gbps VPN IPSec throughput
  • Supports 1.5 million concurrent sessions and 56,000 new sessions per second
  • Rackmount 1U device with 34 networking ports
  • Gigabit Ethernet transport and connectivity
  • Includes 3-year FortiCare Premium and FortiGuard Enterprise Protection service

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Combines enterprise-grade firewall performance with high session handling—ideal for growing networks
  • Bundled 3-year Premium support and security service ensures proactive protection and lower TCO
  • Compact 1U design with 34 ports supports flexible, space-efficient deployment in rackmount environments

Product Overview

The Fortinet FortiGate-100F with 3-Year FortiCare Premium and FortiGuard Enterprise Protection is a high-performance network security appliance designed for mid-size to large enterprise environments. Delivering up to 10 Gbps throughput and 11.5 Gbps VPN IPSec throughput, it supports as many as 1.5 million concurrent sessions and 56,000 new sessions per second. With 34 ports and a 1U rackmount form factor, it integrates efficiently into existing network infrastructures. The included FortiCare Premium and FortiGuard Enterprise Protection plans offer extensive support and real-time, threat intelligence-driven security—maximizing coverage, uptime, and ROI while maintaining low power consumption at just 29.5W.

Specifications

Product Overview
Product Type Network Device
Model FG-100F
Form Factor 1RU
Rack Height 1U
Power / Voltage Required 100-240V AC, 50/60 Hz
Max Power Consumption 29.5 Watt
Weight 9.7 lbs (4.4 kg)
Connectivity Technology Wired

Wireless Features
Wireless Capability No

Compliance & Origin
Country of Origin Taiwan
Certifications FCC Part 15 Class A, ICES-003 Class A, CE, RCM, VCCI, UL/cUL, CB
Safety UL/cUL, CB
EMC FCC Part 15, CE, VCCI, RCM
TAA Compliance Yes
RoHS Compliance Yes

Advanced Security Features
Firewall Type Stateful Inspection Firewall
Threat Protection Throughput 1.4 Gbps
NGFW Throughput 1.6 Gbps
IDS/IPS Support Yes
Application Control Yes
Web Filtering Yes
Antivirus/Antimalware Yes
Sandboxing FortiSandbox Integration
SSL Inspection SSL/TLS Deep Inspection

Interfaces
Networking Type Ethernet
Data Transfer Rate 10 Gbps
VPN IPSec Throughput 11.5 Gbps
IPS Throughput 2.6 Gbps
Concurrent Sessions 1.5 Million
New Sessions Per Second 56000
Networking / Ports Qty 34
Port Types 12x GE RJ45, 12x GE SFP, 4x GE RJ45/SFP shared, 2x 10GE SFP+, 2x GE HA ports, 2x USB ports
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 17 Inch
Depth 10 Inch
Height 1.73 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity Range (Operating) 10% to 90% non-condensing
Humidity Range (Storage) 5% to 95% non-condensing
Cooling Type Active (Fan)
Noise Level 46.2 dBA
Mean Time Between Failures (MTBF) 360,000 hours

Cloud Management & Licensing
Management Interface FortiOS Web UI, CLI, FortiManager, REST API
Included Services 3-Year FortiCare Premium and FortiGuard Enterprise Protection
Subscription Features AV, IPS, Web Filtering, Antispam, App Control, Cloud Sandbox, Security Rating, IoT Detection
Logging and Reporting FortiAnalyzer (optional), Local Logs, Syslog Remote Logging
