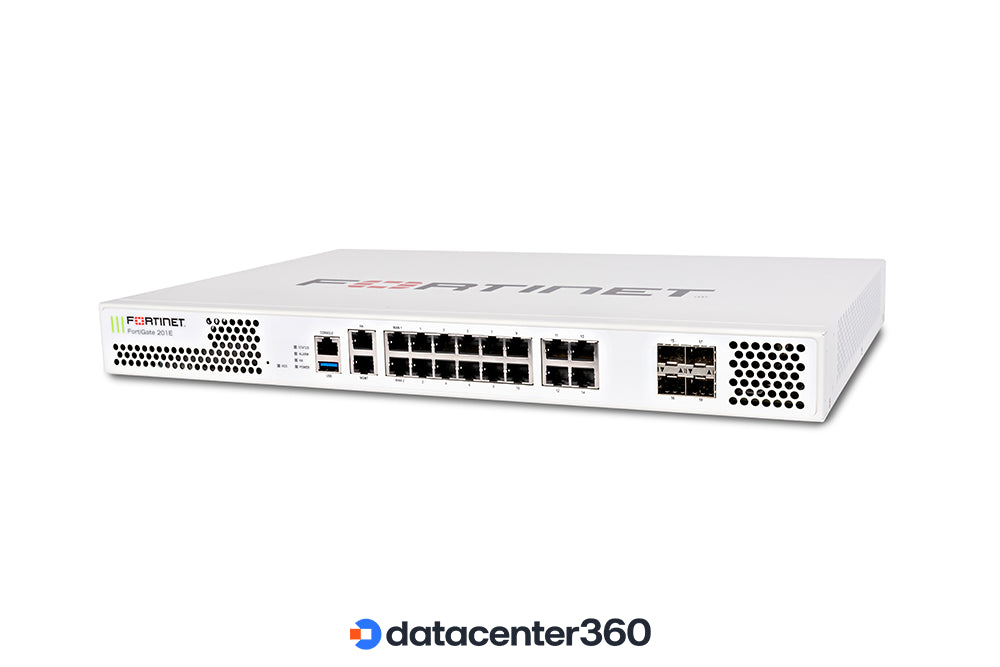

Fortinet FortiGate-201E w/1YR FortiCare & FortiGuard Enterprise Protection

VENDOR: FORTINET Mfg Part#: FG-201E-BDL-809-12
1 3
Photo is for illustration purposes only. Actual product may be different.
$7,002.00
$7,002.00
Sale Sold out
MSRP: $9,549.00
Shipping calculated at checkout.
  • - 7.2 Gbps IPSec VPN throughput for high-speed encrypted connections
  • - 2.2 Gbps Intrusion Prevention System (IPS) throughput
  • - Supports up to 2 million concurrent sessions and 135,000 new sessions/sec
  • - 24 Gigabit Ethernet ports enabling scalable network interfaces
  • - 480 GB onboard storage for logs and local updates
  • - 1U rackmount form factor with maximum power draw of 109.9W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Bundled with 1-year FortiCare Premium and FortiGuard Enterprise Protection for out-of-the-box comprehensive security
  • - High-performance throughput and session handling capacity support demanding enterprise traffic loads
  • - Compact 1RU form factor with 24 ports simplifies deployment while maintaining scalability

Product Overview

The Fortinet FortiGate-201E delivers enterprise-grade, high-throughput security in a compact 1U rack-mount form factor. This device includes 1-year FortiCare Premium and FortiGuard Enterprise Protection for comprehensive real-time threat intelligence. Designed to support 2 million concurrent sessions and 135,000 new sessions per second, it is suitable for mid- to large-size networks that rely on stable, secure, and scalable performance. Key performance metrics include 7.2 Gbps IPSec VPN throughput and 2.2 Gbps IPS capacity, served over 24 wired Gigabit Ethernet ports. Integrated with a 480 GB hard drive and powered by an efficient 109.9W maximum consumption, it delivers optimal resource utilization while maintaining robust security operations.

Specifications

Product Overview
Product Type Network Device
Model FG-201E
Form Factor 1RU
Rack Height 1U
Hard Drive Capacity 480 GB
Max Power Consumption 109.9 Watt
Power / Voltage Required 100-240V AC, 50-60 Hz
Concurrent Sessions 2 Million
New Sessions Per Second 135000
Networking Type Ethernet

Advanced Security Features
IPS Throughput 2.2 Gbps
VPN IPSec Throughput 7.2 Gbps
Firewall Performance (NGFW) approximately 1.8 Gbps
Threat Protection Throughput 1.5 Gbps
Firewall Latency 4 μs
Firewall Concurrent Sessions 2 Million
Firewall Policies 10000
Maximum Site-to-Site IPsec VPN Tunnels 2000
SSL VPN Throughput 900 Mbps

Physical & Environmental
Width 17.0 Inch
Depth 11.9 Inch
Height 1.75 Inch
Weight 12.6 lbs (5.7 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity (Operating) 10% to 90% non-condensing
Humidity (Storage) 5% to 95% non-condensing
Heat Dissipation 375 BTU/h
Cooling Active cooling (fan-based)

Wireless Features

Interfaces
Port Count 24
Interface Type Gigabit Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Connectivity Technology Wired

Cloud Management & Licensing
Management Interface FortiOS Web UI, CLI, FortiManager, FortiCloud
Licensing Model 1 Year FortiCare Premium and FortiGuard Enterprise Protection
Included Security Subscriptions IPS, Application Control, Web Filtering, AntiVirus, AntiSpam, Botnet IP/Domain Security, Mobile Malware

Compliance & Origin
Country of Origin
TAA Compliance
Certifications FCC, CE, UL/cUL, CB
RoHS Compliance Yes
