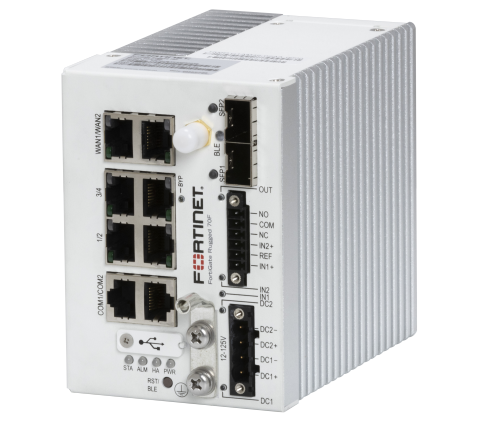

Fortinet FortiGate Rugged 70F-3G4G Firewall with 1YR UTP Support

VENDOR: FORTINET Mfg Part#: FGR-70F-3G4G-BDL-950-12
1 3
Photo is for illustration purposes only. Actual product may be different.
$6,040.00
$6,040.00
Sale Sold out
MSRP: $8,251.00
Shipping calculated at checkout.
  • Firewall throughput up to 8 Gbps for high-speed data processing
  • 6.5 Gbps IPSec VPN throughput for secure encrypted communication
  • Compact DIN-rail form factor suited for industrial environments
  • LTE-enabled wireless connectivity with 3G/4G support and SMA antenna connectors
  • Handles up to 1 million concurrent sessions and 35,000 new sessions per second
  • Supports 13 network ports including RJ45, SFP, Serial, USB 2.0, and Console

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 1 year of FortiCare Premium and FortiGuard UTP for comprehensive threat protection
  • Built for rugged industrial use with DIN-rail mounting and wide DC voltage compatibility (12V–125V)
  • Wireless LTE capability ensures connectivity in remote or infrastructure-limited deployments

Product Overview

The FortiGate Rugged 70F-3G4G from Fortinet is a high-performance, industrial-strength firewall purpose-built for secure networking in harsh or remote environments. Built with DIN-rail mounting support and a compact form factor (3.2 x 4.4 x 4.8 inches), it is ideal for deployment in manufacturing, utilities, or transportation infrastructures where dust, vibrations, and temperature extremes are common. This device comes pre-bundled with a 1-year subscription to FortiCare Premium and FortiGuard Unified Threat Protection (UTP), delivering comprehensive security services such as IPS, antivirus, web filtering, and advanced threat intelligence updates.

With performance metrics including 8 Gbps firewall throughput, 6.5 Gbps IPSec VPN throughput, and 975 Mbps IPS throughput, the FortiGate Rugged 70F-3G4G easily handles demanding traffic loads. It supports wireless LTE connectivity via SMA antenna connectors and accommodates both 3G and 4G networks, ensuring reliable routing without dependence on wired infrastructure. Designed for high session capacity with support for up to 1 million concurrent connections and 35,000 new sessions per second, it's well-suited for large-scale deployments.

Support for HTTP/HTTPS and IPv4 remote management protocols ensures secure administration, while 13 onboard ports (RJ45, SFP, Serial, USB 2.0, Console) provide flexible integration with existing systems. With a max power consumption of just 19.9W and DC voltage tolerance from 12V to 125V, the unit is efficient and adaptable. RoHS compliance affirms environmentally responsible construction. This solution offers a compelling balance of rugged reliability and advanced security features suitable for today’s industrial IoT and edge-computing networks.

Specifications

Product Overview
Product Type Firewall
Model FortiGate Rugged 70F-3G4G
Form Factor DIN-rail
Weight 900 g
Max Power Consumption 19.9 Watt
Power / Voltage Required 12V to 125V DC
Firewall Throughput 8 Gbps
VPN IPSec Throughput 6.5 Gbps
IPS Throughput 975 Mbps
Concurrent Sessions 1 M
New Sessions Per Second 35000

Wireless Features
Connectivity Technology Wireless
Cellular Generation 3G/4G
Cellular Technology LTE
Antenna Connectors SMA
Antenna Type External Detachable Antennas
SIM Slots 1x mini-SIM (2FF)
Wireless Bands Supported LTE, UMTS/HSPA+
Frequency Bands LTE FDD Bands 1, 3, 5, 7, 8, 20; 3G WCDMA Bands 1, 5, 8

Compliance & Origin
RoHS Compliance Yes
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC Part 15 Class A, CE, RCM, ICES-003, UL/cUL

Advanced Security Features
Threat Protection Bundle Included (IPS, Antivirus, Web filtering)
Intrusion Prevention System (IPS) Yes
Antivirus Yes
Application Control Yes
Web Filtering Yes
Malware Protection Yes
SSL Inspection Yes
Advanced Threat Protection Included with UTP

Interfaces
Networking / Ports Qty 13
Network Interfaces 8x GE RJ45 ports, 2x GE SFP slots, 1x DB9 Console port, 1x USB 2.0 port, 2x Antenna SMA connectors
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Remote Management Protocol HTTP, HTTPS, IPv4

Physical & Environmental
Width 3.2 Inch
Depth 4.4 Inch
Height 4.8 Inch
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -45°C to 85°C
Operating Humidity 5% to 95% non-condensing
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Ingress Protection IP30

Cloud Management & Licensing
Service & Support Type 1 YEAR FORTICARE PREMIUM AND FORTIGUARD UNIFIED THREAT PROTECTION (UTP)
FortiCare Subscription Included Yes, 1 Year Premium
FortiGuard UTP Subscription Included Yes, 1 Year
Cloud Management Support Yes, via FortiManager/FortiCloud
Management Interface Web GUI, CLI, FortiManager
