| Product Type | Network Firewalls |
| Model | FGR-60F |
| Form Factor | Desktop, Ruggedized |
| Weight | 1.45 lbs (0.66 kg) |
| Power Requirements | +/-12V to 125V DC |
| Max Power Consumption | 21 Watt |
| Environment | Indoor / Industrial Hardened |
Fortinet FortiGateRugged-60F + 3YR Support & Enterprise Security

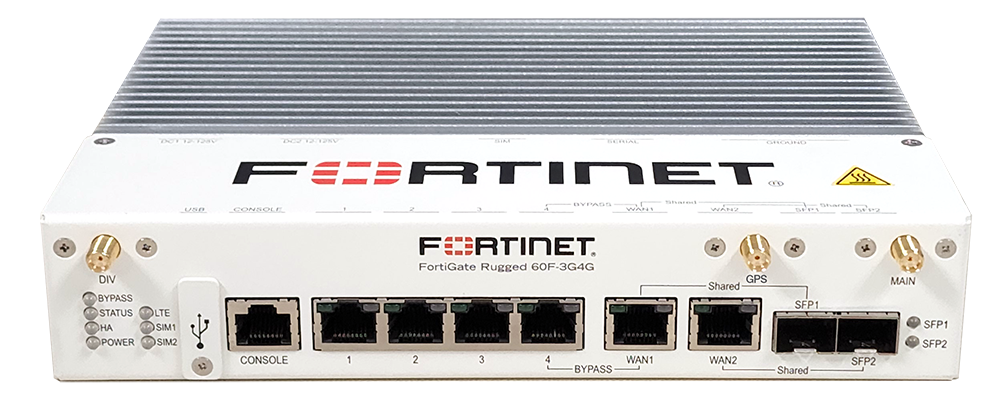

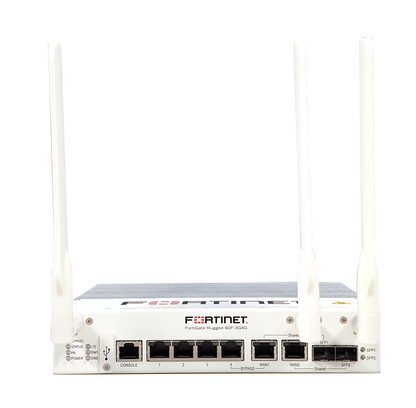

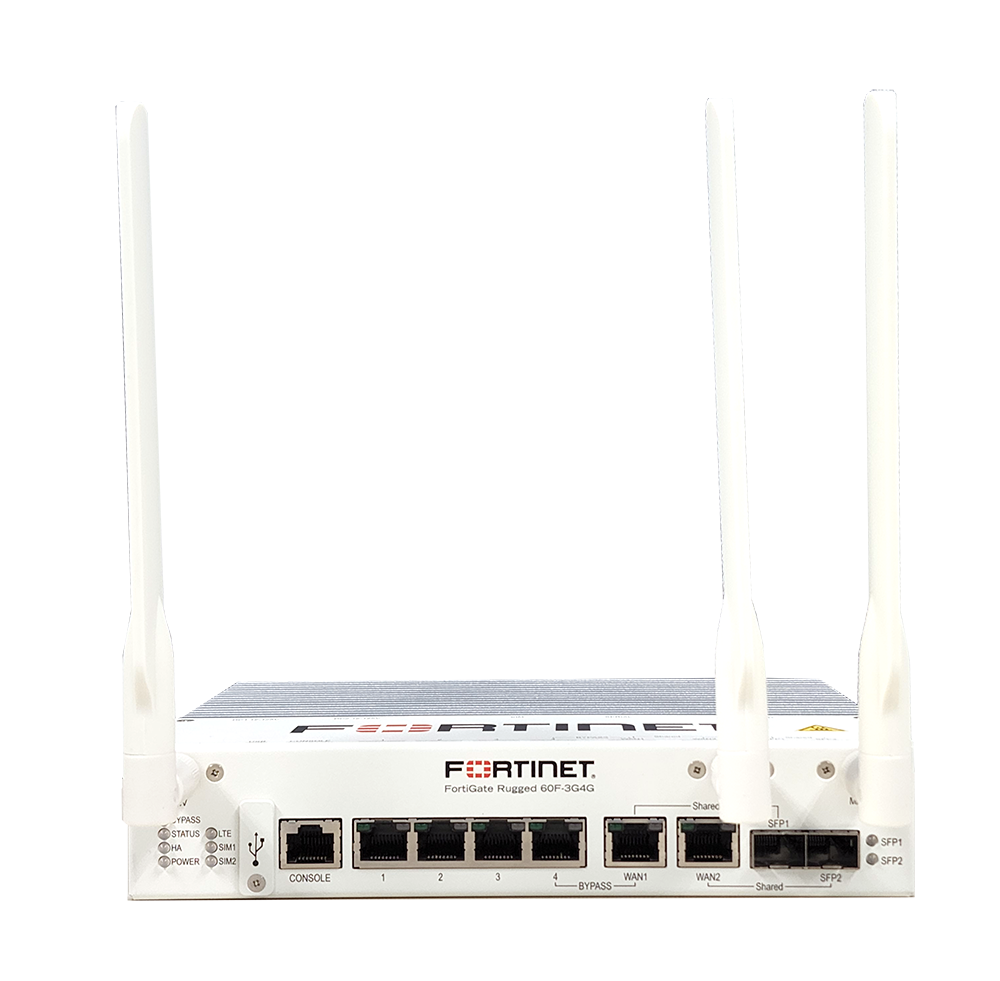

Photo is for illustration purposes only. Actual product may be different.
Regular price
$7,770.00
Regular price
Sale price
$7,770.00
Unit price
per
MSRP: $10,611.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Gigabit Ethernet support with 10 wired ports
- Up to 600,000 concurrent sessions and 19,000 new sessions per second
- VPN IPSec throughput of 3.5 Gbps and IPS throughput of 950 Mbps
- Flexible power input range from +/-12V to 125V
- RoHS-compliant industrial-grade design
- Includes 3-year FortiCare Premium and FortiGuard Enterprise Protection
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers scalable security performance for industrial edge networks with high session and throughput capacity
- Includes enterprise-grade 3-year support and threat protection services for reduced operational risk
- Compact, ruggedized design with wide power tolerance supports diverse deployment scenarios
Product Overview
The Fortinet FortiGateRugged-60F (FGR-60F-BDL-809-36) is a hardened security appliance built for demanding industrial environments. This includes 3 years of FortiCare Premium and FortiGuard Enterprise Protection, delivering high-performance security and support. With Gigabit Ethernet connectivity, it supports up to 600,000 concurrent sessions and 19,000 new sessions per second. It provides 3.5 Gbps VPN IPSec throughput and 950 Mbps IPS throughput, ideal for distributed networks. Compact and power-flexible (+/-12V to 125V), it supports efficient deployment in diverse setups. Compliance with RoHS ensures environmental standards are met, while the bundled services improve threat prevention and operational efficiency.
Specifications
Product Overview
Advanced Security Features
| VPN IPSec Throughput | 3.5 Gbps |
| IPS Throughput | 950 Mbps |
| Concurrent Sessions | 600000 |
| New Sessions Per Second | 19000 |
| Firewall Throughput | 1.5 Gbps |
| SSL VPN Throughput | 900 Mbps |
| Threat Protection Throughput | 700 Mbps |
| Firewall Policies | 5000 |
Physical & Environmental
| Width | 8.5 Inch |
| Depth | 6.7 Inch |
| Height | 1.68 Inch |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity (non-condensing) | 5% to 95% |
| Cooling Method | Passive (Fanless) |
Interfaces
| Networking Type | Ethernet |
| Data Link Protocol | Gigabit Ethernet |
| Transport Protocol | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Networking / Ports Qty | 10 |
| 10/100/1000 Interfaces | 8x GE RJ45 |
| GE SFP Interfaces | 2x GE SFP |
| Console Interface | 1x RJ45 Console Port |
Cloud Management & Licensing
| Management Interface | Web UI, CLI, FortiManager Centralized Management |
| Service & Support Type | 3 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION |
| Included Security Services | FortiGuard Antivirus, IPS, URL Filtering, Application Control |
| Centralized Logging Option | Supported via FortiAnalyzer |
Compliance & Origin
| RoHS | Y |
| TAA compliance | Inquire |
| COO | Inquire |
| Certifications | FCC Part 15 Class B, CE, UL/cUL, CB |
| Ingress Protection | IP30 rated enclosure |
