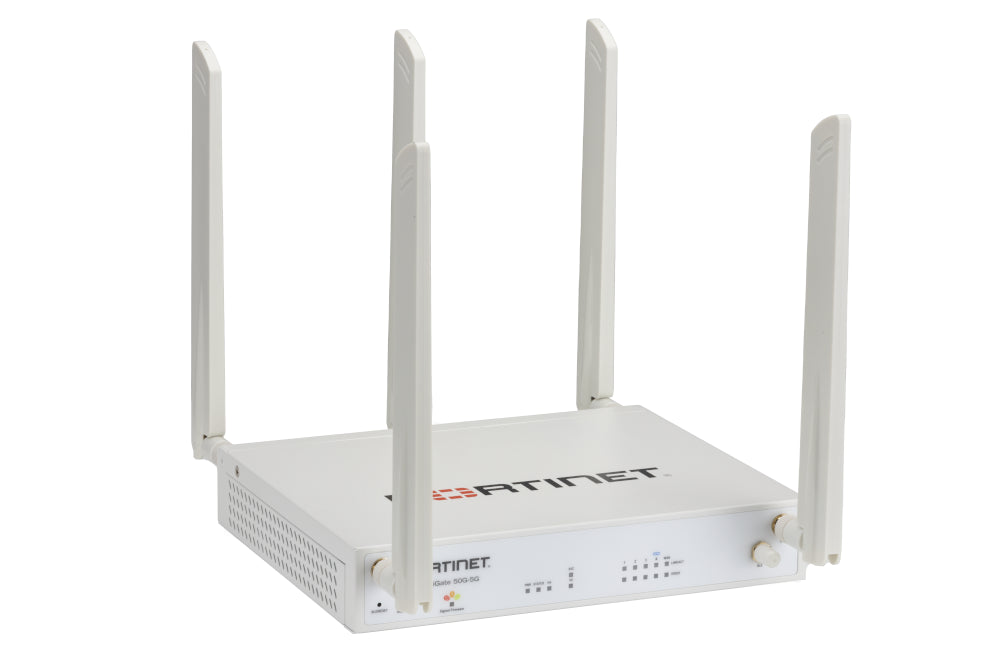

Fortinet FortiWiFi-40F-3G4G with 5YR FortiCare & FortiGuard

VENDOR: FORTINET Mfg Part#: FWF-40F-3G4G-A-BDL-809-60
1 3
Photo is for illustration purposes only. Actual product may be different.
$5,007.00
$5,007.00
Sale Sold out
MSRP: $6,837.00
Shipping calculated at checkout.
  • Compact desktop form factor with integrated wireless and LTE connectivity
  • Supports 3x3 MIMO with dual-band 2.4 GHz and 5 GHz wireless frequencies
  • Delivers 1 Gbps IPS throughput and 4.4 Gbps IPsec VPN performance
  • Handles up to 700,000 concurrent sessions and 35,000 new sessions/sec
  • Includes seven networking ports and SMA connectors for external antennas
  • Powered by 100-240V with max power consumption of 19.8W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 5-year FortiCare Premium and FortiGuard Enterprise Protection for comprehensive security coverage
  • High session handling capacity makes it suitable for demanding branch and remote locations
  • Integrated LTE and wireless features allow flexible deployment without dependency on wired infrastructure

Product Overview

The Fortinet FortiWiFi-40F-3G4G is a compact security appliance offering integrated LTE and wireless connectivity, designed for branch offices and distributed sites. It supports 3G/4G LTE cellular technology, 3x3 MIMO, and both 2.4 GHz/5 GHz frequency bands, ensuring reliable wireless performance. This device delivers 1 Gbps IPS throughput, 4.4 Gbps VPN performance, and manages up to 700,000 concurrent sessions, making it highly capable in high-demand environments. The appliance includes five years of FortiCare Premium and FortiGuard Enterprise Protection, ensuring continuous security updates and expert support for consistent ROI and protection at the network edge.

Specifications

Product Overview
Product Type Network Device
Form Factor Desktop
Model FORTIWIFI-40F-3G4G
Family Networking
Sub-Category Security Appliance
Manufacturer Part Number FWF-40F-3G4G-A-BDL-809-60
Max Power Consumption 19.8 Watt
Power / Voltage Required 100-240V
Weight 1.2 lbs

Wireless Features
Connectivity Technology Wireless
Radio Count Single
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
MIMO Type 3x3 MIMO
Internal Antennas 3
Antenna Connectors SMA
Cellular Technology LTE
Cellular Generation 3G; 4G
SIM Slot 1 x Nano SIM

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, CE, RCM, VCCI, BSMI, UL/cUL, CB
EMC Certifications EN 55032, EN 55024

Advanced Security Features
Firewall Throughput 5 Gbps
IPS Throughput 1 Gbps
VPN IPSec Throughput 4.4 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000
Threat Protection Throughput 600 Mbps
SSL Inspection Throughput 250 Mbps
Antivirus, Web Filtering, Application Control Yes, via FortiGuard
Intrusion Prevention System (IPS) Yes
NGFW Features Yes, with Application Control and Threat Protection
Malware Protection Yes via FortiGuard

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 7
RJ-45 Ports 5 x GE RJ45
WAN Ports 1 x GE RJ45 WAN, 1 x GE RJ45 DMZ
USB Ports 1 x USB
Console Port 1 x RJ45 Serial Console Port

Physical & Environmental
Width 8.5 Inch
Depth 6.3 Inch
Height 1.6 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Humidity 10% to 90% non-condensing

Cloud Management & Licensing
Management Interface FortiOS with Web UI & CLI
Cloud Management Supported via FortiCloud
Subscription Services FortiCare Premium and FortiGuard Enterprise Protection
License Term 5 Years
