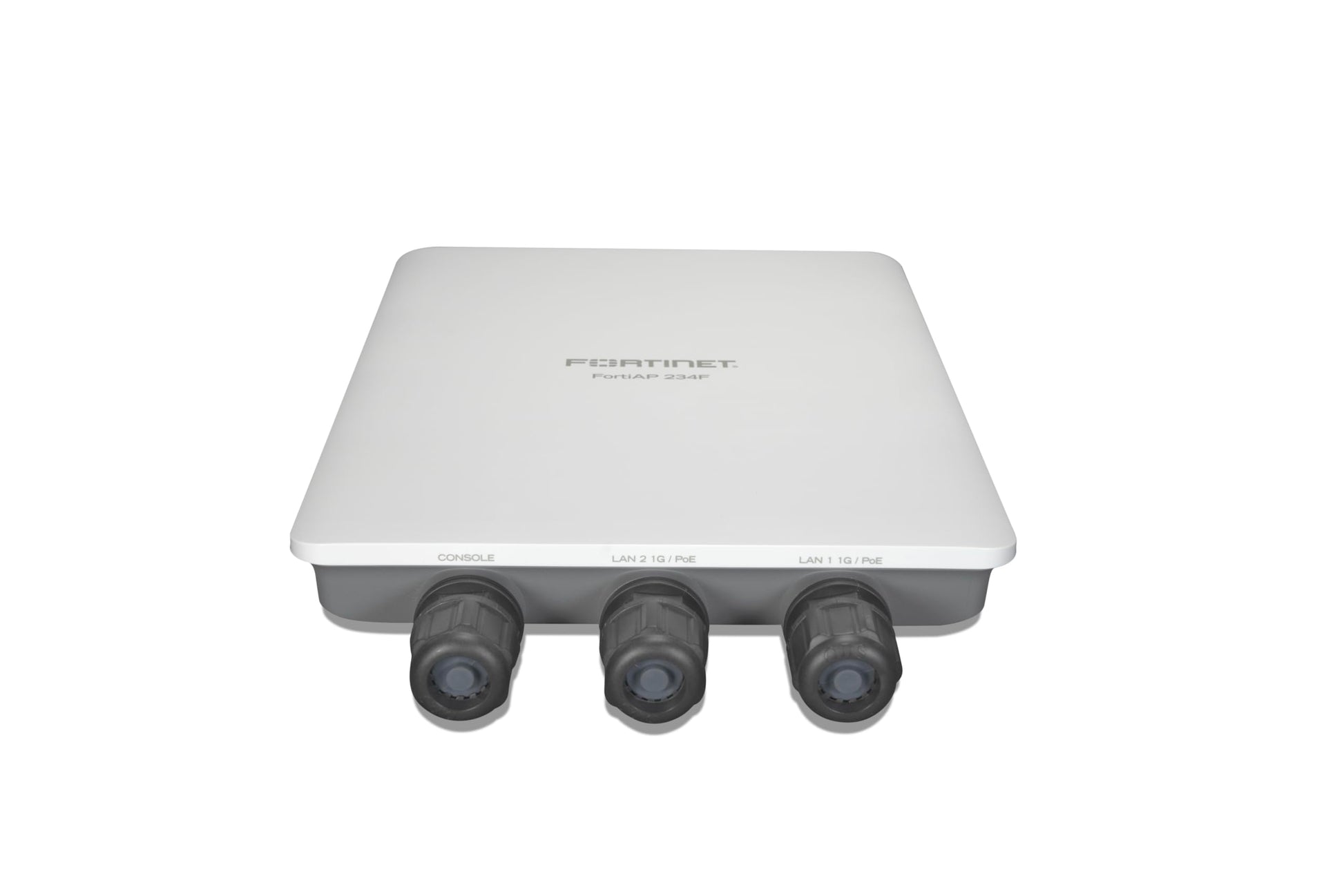

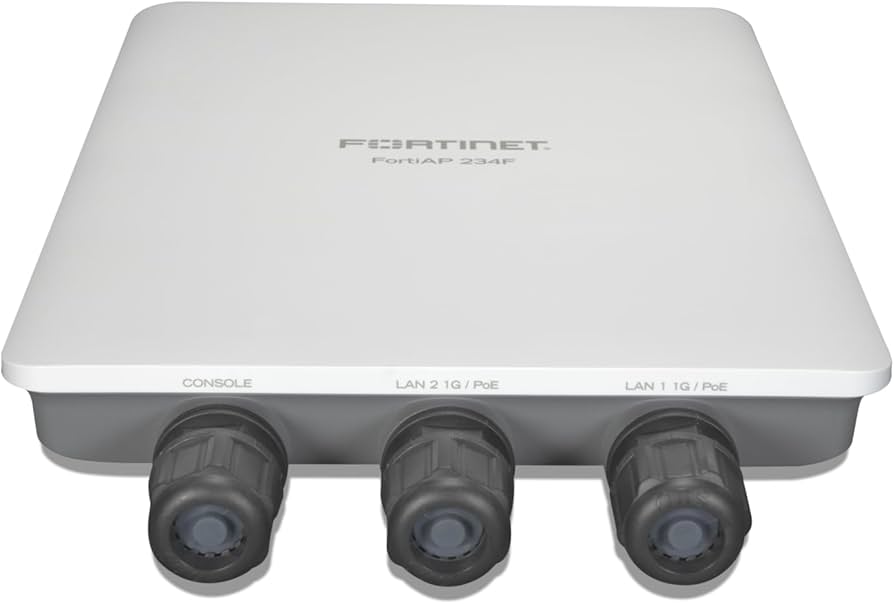

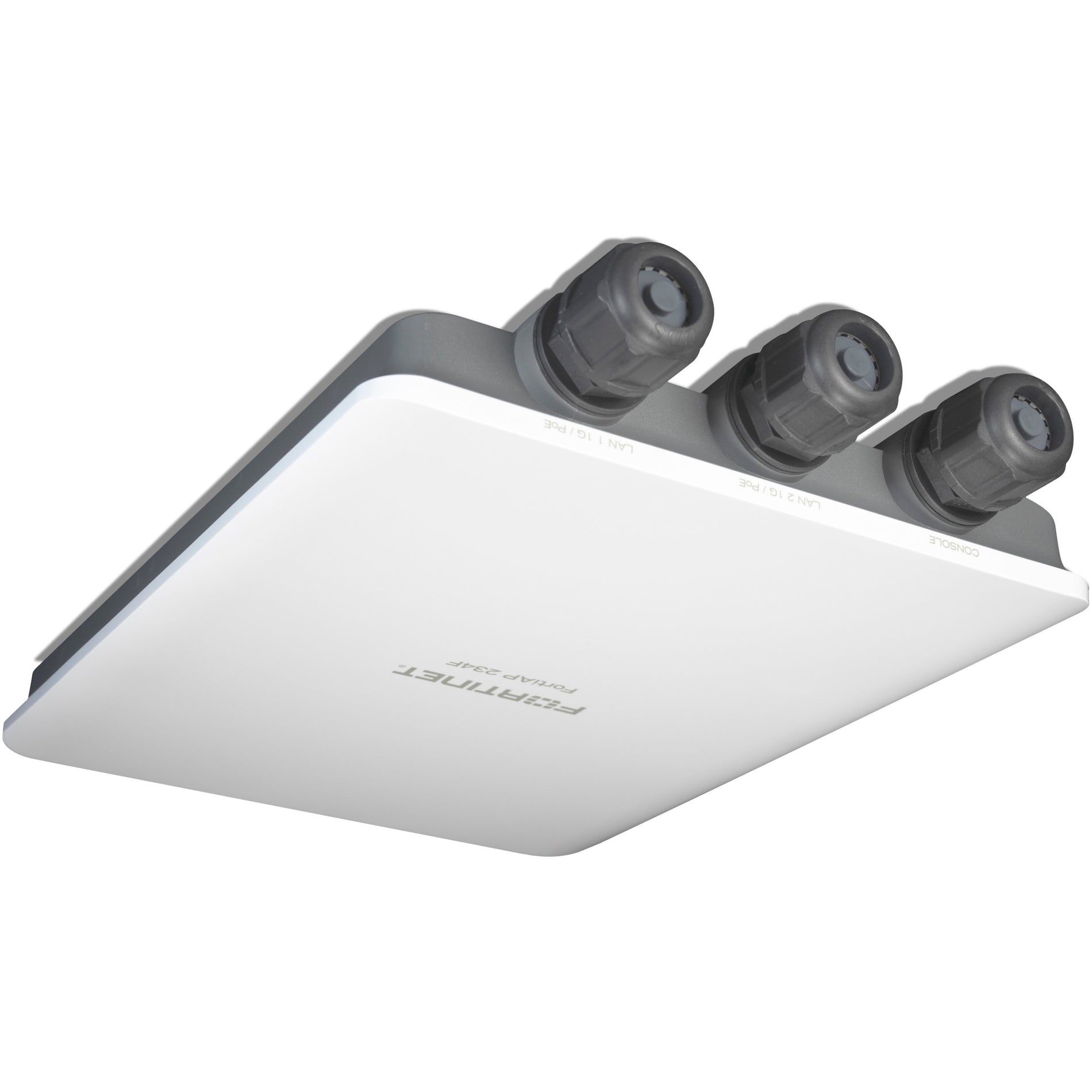

FORTINET HW FAP-234F Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-234F-EO
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,015.00
$1,015.00
Sale Sold out
MSRP: $1,378.00
Shipping calculated at checkout.
  • Tri-radio wireless access point supporting 802.11a/b/g/n/ac/ax standards
  • Dual 2x2 MU-MIMO radios and one 1x1 Wave 2 radio for optimized performance
  • Supports both 2.4 GHz and 5 GHz frequency bands
  • Two 10/100/1000 RJ45 Gigabit Ethernet ports plus console port for configuration
  • Includes internal antennas, Bluetooth/BLE support, and PoE injector
  • Rugged outdoor design with RoHS compliance and limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for outdoor deployment with IP-ready rugged design and wall/pole mounting kit included
  • Supports tri-band operation with state-of-the-art MU-MIMO and Wave 2 radio technology for high-density environments
  • Comes with a PoE injector for simplified power and installation, reducing infrastructure costs

Product Overview

The FORTINET HW FAP-234F is a high-performance outdoor wireless access point designed to deliver reliable connectivity in open-air enterprise or industrial environments. Featuring tri-radio functionality and supporting 802.11a/b/g/n/ac/ax standards, it includes two 2x2 MU-MIMO radios and one 1x1 Wave 2 radio for maximized throughput and coverage. Integrated Bluetooth/BLE and dual Gigabit Ethernet ports provide enhanced flexibility for device integration and data routing. Its rugged build, PoE capability, and included mounting kit make it a versatile solution for scalable outdoor deployments.

Specifications

Product Overview
Product Type Access Point
Model FortiAP 234F
Form Factor Outdoor, wall or pole-mounted
Environment Outdoor
Mounting Options Wall mount, pole mount
Radio Count Tri
MIMO Type 2x2 MU-MIMO
Max Power Consumption 15.5 Watt
Power Requirements PoE+ (802.3at), 802.3af (limited functionality)
Weight 2.71 lbs (1.23 kg)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Bluetooth Support Yes, Bluetooth Low Energy (BLE)
Frequency Band 2.4 GHz; 5 GHz
Throughput (2.4 GHz) Up to 574 Mbps
Throughput (5 GHz 1) Up to 1.2 Gbps
Throughput (5 GHz 2) Up to 1.2 Gbps
Maximum Data Rate 3.6 Gbps (aggregate)
Antenna Configuration Internal Antennas

Compliance & Origin
RoHS Y
COO TAIWAN
Certifications FCC Part 15, CE, IC, UL/cUL, CB
EMC Compliance EN 301 489-1/17
Safety Compliance EN 60950-1, EN 62368-1

Advanced Security Features
WLAN Security WPA3, WPA2 Enterprise, WPA2 Personal, WPA
Wireless IDS/IPS Yes
Rogue AP Detection Yes
Integrated Firewall Yes, when managed by FortiGate
Secure Tunneling IPSec VPN over wireless

Interfaces
Networking / Ports Qty 3
Port Types 2x RJ-45 10/100/1000 Ethernet, 1x RJ-45 console
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps per Ethernet port
PoE Support Yes, IEEE 802.3at

Physical & Environmental
Width 8.6 Inch
Depth 12.45 Inch
Height 1.66 Inch
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -50°C to 70°C (-58°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Enclosure Rating IP67
Ingress Protection Waterproof and dustproof enclosure

Cloud Management & Licensing
Management Interface FortiCloud, FortiGate Controller, FortiLAN Cloud
Licensing Model Subscription-based for advanced features
Included Cloud Features Zero-touch deployment, configuration management, monitoring via FortiCloud
