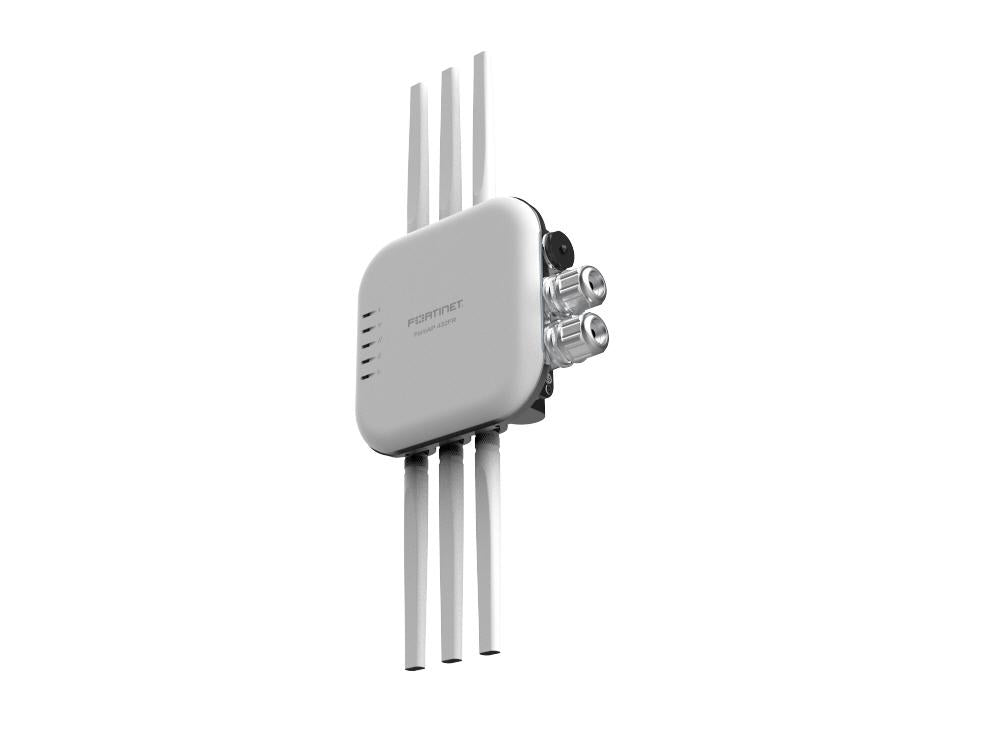

FORTINET HW FAP-432FR Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-S
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,071.00
$2,071.00
Sale Sold out
MSRP: $2,825.00
Shipping calculated at checkout.
  • Tri-radio configuration: 1x 802.11b/g/n/ax 4x4, 1x 802.11a/n/ac/ax 4x4, and 1x Wave 2 802.11a/b/g/n/ac 2x2
  • Supports hazardous location standards (UL Class 1, Division 2)
  • Dual Ethernet ports: 1x 10/100/1000/2500BASE-T and 1x 10/100/1000BASE-T
  • Integrated Bluetooth/BLE and Zigbee modules for IoT integration
  • Includes external dual-band N-type omnidirectional antennas
  • Flexible power input via 802.3at PoE injector (GPI-130) or AC adapter (SP-FAP400-PA), sold separately

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed to meet strict industrial standards (UL Class 1 Div 2), providing dependable wireless in hazardous areas
  • Tri-radio architecture expands wireless capacity and user density capabilities for enterprise-grade performance
  • Integrated BLE and Zigbee enable flexible IoT deployments, reducing need for additional gateways

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE S

Specifications

Product Overview
Product Type Outdoor Tri-Radio Wireless Access Point
Model Number FAP-432FR-S
Form Factor Wall/Pole Mountable Outdoor Unit
Mounting Options Wall or Pole Mount (Mounting Kit Included)
Weight 2.43 kg (5.36 lbs)
Power Requirements 802.3at PoE or external AC adapter (SP-FAP400-PA)
Power Consumption Max 25.5 W
Enclosure Rating IP67-rated weatherproof enclosure
Hazard Certification UL Class 1 Division 2 (for hazardous locations)

Wireless Features
Wi-Fi Standards Supported 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Radio Configuration Tri-Radio: 1x 4x4 MIMO 2.4 GHz, 1x 4x4 MIMO 5 GHz, 1x 2x2 MIMO dual-band sensor
2.4 GHz Radio 802.11b/g/n/ax, 4x4 MU-MIMO
5 GHz Radio 802.11a/n/ac/ax, 4x4 MU-MIMO
Third Radio 2x2 dual-band (2.4/5 GHz) radio for scanning or additional client access
Internal/External Antennas External dual-band omnidirectional antennas (included)
MIMO Support Yes, 4x4 MU-MIMO and 2x2 MIMO on third radio
Maximum Data Rate Up to 4.8 Gbps (aggregated)
Band Steering Supported
Client Load Balancing Supported

Compliance & Origin
Country of Origin Taiwan
Safety Certifications UL, cUL, FCC, CE, IC
Hazloc Certification UL Class 1 Division 2
EMC Compliance EN 301 489, FCC Part 15 Subpart B
RoHS Compliance Yes

Advanced Security Features
WIDS/WIPS Integrated Wireless Intrusion Detection/Prevention System
Rogue AP Detection Supported
Integrated Firewall Coordinated with FortiGate UTM
Client Isolation Supported
Application Control Yes, via FortiGate integration
802.1X Authentication Supported

Interfaces
Ethernet Ports 2x RJ45 (1x 10/100/1000/2500Base-T, 1x 10/100/1000Base-T)
Serial Port 1x RS-232 RJ45 Console Port
USB Ports 1x USB Type-A
Bluetooth/Zigbee Support Yes (Built-in BT/BLE and Zigbee Radios)
PoE Input 802.3at compliant
Antenna Connectors N-Type Connectors (external antennas included)

Physical & Environmental
Dimensions (H x W x D) 295 x 242 x 78 mm (11.6 x 9.5 x 3.1 in)
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity Range 5% to 95% non-condensing
Ingress Protection IP67
Installation Environment Outdoor, Hazardous (Certified)

Cloud Management & Licensing
Management Platform FortiCloud or FortiGate Controller
Controller-Based Operation Supported via FortiGate
Zero Touch Deployment Supported via FortiCloud
Licensing Requirements FortiCloud license for advanced features
Remote Monitoring Supported through FortiCloud
