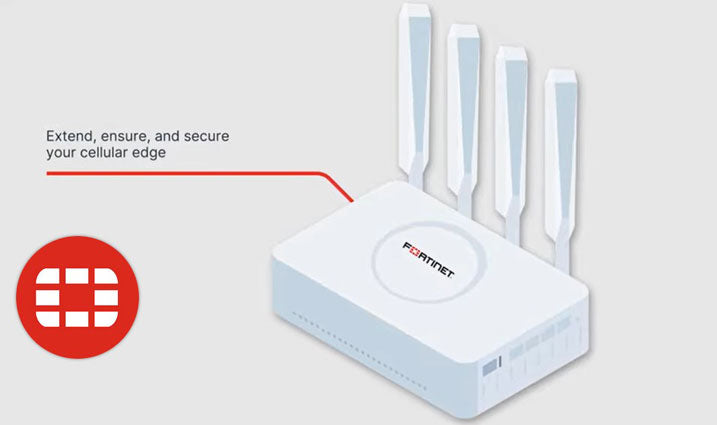

FORTINET HW FEV-212F Semi-Rugged Dual Modem WWAN Router

VENDOR: FORTINET Mfg Part#: FEV-212F
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,361.00
$2,361.00
Sale Sold out
MSRP: $3,226.00
Shipping calculated at checkout.
  • Dual CAT-12 LTE M.2 modems with DL/UL up to 600/150 Mbps
  • 1x GE WAN + 4x GE LAN RJ45 ports
  • Supports 802.11ac Wi-Fi (2.4/5 GHz dual-band)
  • Integrated GPS/GNSS systems
  • Compatible with EU/APEC and LATAM carrier networks
  • External LTE antenna required (not included), Band 28 supported

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for vehicle and OT deployments requiring broadband wireless connectivity
  • Dual-modem design ensures high-speed failover and consistent uptime across 4G/LTE networks
  • Supports global carrier flexibility, maximizing deployment ROI across diverse regions

Product Overview

The FORTINET HW FEV-212F FortiExtenderVehicle is a semi-rugged wireless WAN router designed for vehicle and OT-based deployments. It features dual LTE CAT-12 modems with up to 600 Mbps download and 150 Mbps upload speeds, ensuring reliable and high-speed mobile connectivity. With 1 GE WAN and 4 GE LAN RJ45 ports, dual-band 802.11ac Wi-Fi, and integrated GPS/GNSS systems, the unit supports advanced networking and location tracking. It is suitable for global operation across EU/APEC and LATAM carriers, though requires an external LTE antenna (not included). Ideal for fleets, transit systems, and field OT networks.

Specifications

Product Overview
Product Type Semi-Rugged Wireless WAN Router
Deployment Use Vehicle and Operational Technology (OT) Use
Form Factor Desktop / Wall-Mount / Vehicle Mount
Weight 1.36 kg (3 lb)
Power Requirements 12V DC input, 2A (typical)
Power Input Range 9V to 36V DC
Mounting Options DIN rail, wall, and vehicle mounting supported

Wireless Features
Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Dual-Band)
Wi-Fi Frequency Bands 2.4 GHz and 5 GHz
Wi-Fi Max Clients Up to 32
MIMO Technology 2x2 MIMO Wi-Fi
Carrier Aggregation Supported (LTE-A CAT-12)
GNSS Support GPS, GLONASS, Galileo, BeiDou

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Safety Certifications UL/cUL 60950-1, IEC 60950-1, CB
EMC Certifications FCC Part 15B, CE, ICES-003
Mobile Certifications GCF, PTCRB, AT&T, Verizon, T-Mobile (US); EU Carrier Certified
RoHS Compliance Yes
REACH Compliance Yes

Advanced Security Features
Modem Failover Automatic failover between dual modems
VPN Support Pass-through and IPsec/VPN over cellular
Firewall Capability Integrated Layer-3 Stateful Firewall
Content Filtering Optional via integration with FortiGate

Interfaces
WAN Ports 1 x GE RJ45 WAN
LAN Ports 4 x GE RJ45 LAN
USB Ports 1 x USB 2.0 Type A
Console Port 1 x RJ45 Serial Port (Console)
Cellular Modem 2 x LTE CAT-12 Modems
Cellular Ports 4 x SMA connectors (cellular), 2 per modem
GNSS/GPS Connector 1 x SMA connector
Wi-Fi Antennas 2 x RP-SMA connectors
Max Download Speed 600 Mbps
Max Upload Speed 150 Mbps
Ethernet Standards IEEE 802.3, 802.3u, 802.3ab

Physical & Environmental
Dimensions (W x D x H) 202 x 149 x 44 mm (7.95 x 5.87 x 1.73 in)
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 5% to 95% non-condensing
Enclosure Type Metal (Semi-Rugged)
Cooling Fanless, passive cooling
Ingress Protection IP30 Rated
Shock & Vibration EN 60068-2-6, EN 60068-2-27 compliant

Cloud Management & Licensing
Cloud Management Platform FortiManager / FortiCloud
Zero Touch Deployment Supported via FortiDeploy
Remote Configuration Yes via Web UI, CLI, FortiManager
Licensing Model Perpetual hardware license, optional FortiCare Support
Firmware/OS FortiExtender OS
