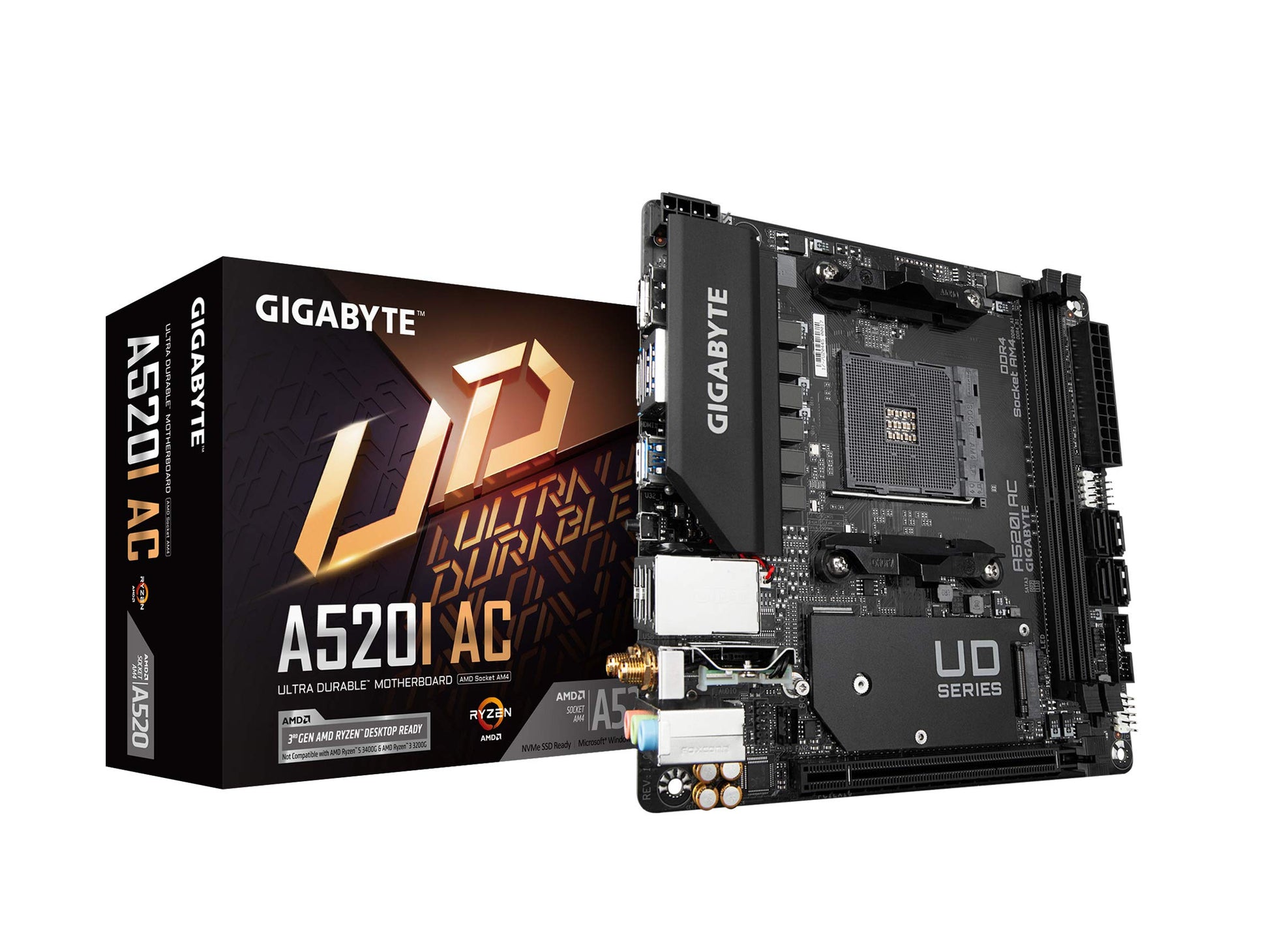

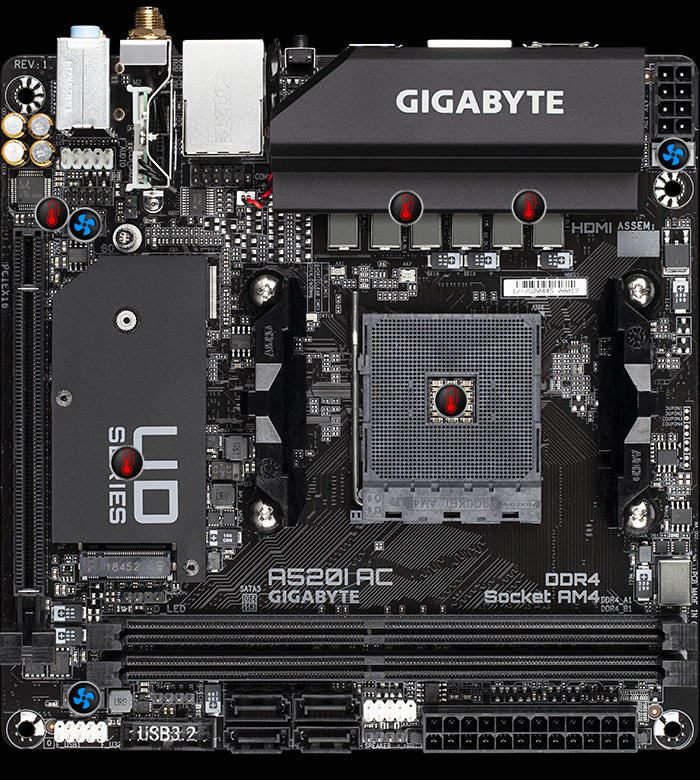

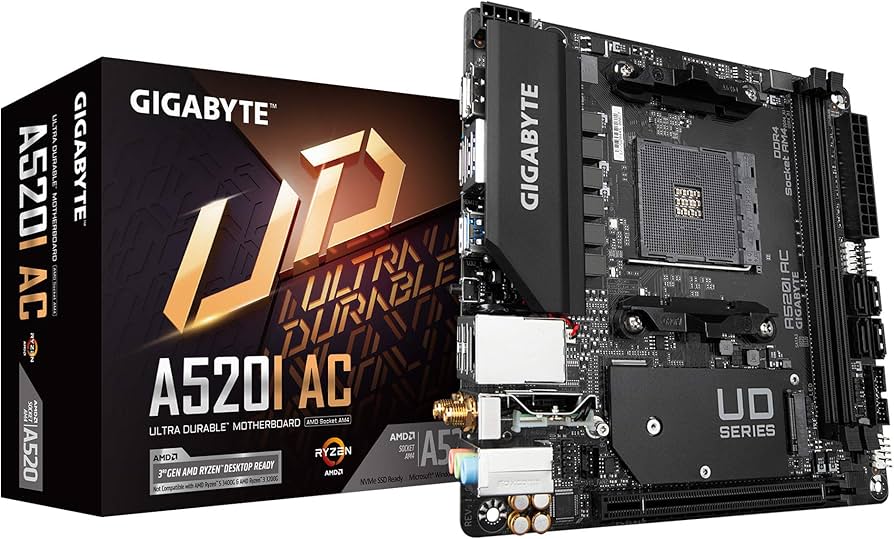

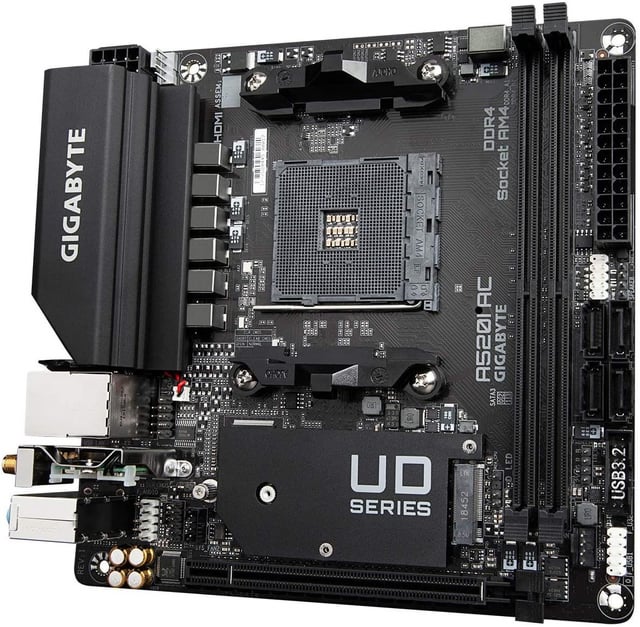

GIGABYTE A520I AC Mini ITX AM4 Motherboard

VENDOR: GIGABYTE Mfg Part#: A520I AC UPC#: 889523023785
1 4
Photo is for illustration purposes only. Actual product may be different.
$156.00
$156.00
Sale Sold out
MSRP: $169.00
Shipping calculated at checkout.
  • Mini ITX form factor with 17 cm x 17 cm dimensions
  • Compatible with AMD Ryzen 5000 Series and 3rd Gen Ryzen processors
  • AMD A520 chipset with Socket AM4
  • Supports up to 64 GB of DDR4 RAM
  • 1 PCIe 3.0 x16 slot for graphics or expansion cards
  • Designed and manufactured in China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for small-form-factor PCs and space-constrained builds due to Mini ITX layout
  • Full Ryzen 3rd Gen and 5000 Series processor compatibility provides future-ready performance
  • DDR4 support up to 64 GB ensures multitasking and advanced computing capability

Product Overview

The GIGABYTE A520I AC Mini ITX motherboard is purpose-built for compact computing solutions that require solid processing power with minimized space consumption. Engineered around the AMD A520 chipset and Socket AM4, it supports a wide range of processors, including AMD’s Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics. Its diminutive 17 cm x 17 cm footprint in the Mini ITX form factor allows it to fit in small-form-factor cases, making it a strong candidate for compact workstations, media centers, or space-constrained gaming builds.

This motherboard supports up to 64 GB of DDR4 memory, allowing high-efficiency multitasking and compute responsiveness. The single PCIe x16 slot, operating at PCIe 3.0 bandwidth, accommodates modern graphics cards or other high-speed expansion needs. While detailed interface and back panel connector information is not fully available, internal I/O connections suggest decent system integration capabilities. The board's manufacturing origin is China, and its efficient layout supports budget-conscious builders looking for performance and compatibility without excess bulk.

Overall, the GIGABYTE A520I AC delivers a mix of affordability, versatility, and reliability, ideal for minimalist setups or users seeking a full-featured platform in a small footprint.

Specifications

Product Overview
Product Type Motherboard
Form Factor Mini ITX
Chipset AMD A520
Processor Socket Socket AM4
Supported Processor Series AMD Ryzen 5000 Series, 3rd Gen Ryzen, 3rd Gen Ryzen with Radeon Graphics
Maximum Memory Supported 64 GB
Memory Type DDR4
Number of Memory Slots 2 x DIMM
Memory Channel Support Dual Channel
ECC Support No
Power Phase Design 6+2 Phase Digital VRM
Operating System Support Windows 10 64-bit

Wireless Features
Wi-Fi Standard 802.11ac
Bluetooth Bluetooth 4.2
Wi-Fi Antenna 2 x Detachable Antennas
Wireless Frequency Bands 2.4 GHz / 5 GHz Dual Band

Compliance & Origin
Country of Origin China
RoHS Compliance Yes
Certifications CE, FCC, BSMI

Advanced Security Features
Platform Security TPM header for Trusted Platform Module (add-on needed)
BIOS Password Protection Yes

Interfaces
PCI Express x16 Slots 1 x PCIe 3.0 x16
SATA Ports 4 x SATA 6Gb/s
M.2 Slots 1 x M.2 (PCIe 3.0 x4 / SATA)
USB Ports (Rear) 4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Headers (Internal) 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header
Audio Jacks 3 x 3.5mm audio jacks
HDMI Ports 1 x HDMI 2.1
DisplayPort 1 x DisplayPort 1.4
LAN Port 1 x RJ-45 (Gigabit Ethernet)

Physical & Environmental
Width 17 cm
Depth 17 cm
Operating Temperature 0°C to 85°C
Storage Temperature -40°C to 90°C
Operating Humidity 10% to 90%, non-condensing
Storage Humidity 5% to 95%, non-condensing

Cloud Management & Licensing
BIOS Type AMI UEFI BIOS
BIOS Features PnP, DMI, WfM, SM BIOS, ACPI, Multi-language
System Management Smart Fan 5, Q-Flash Plus
