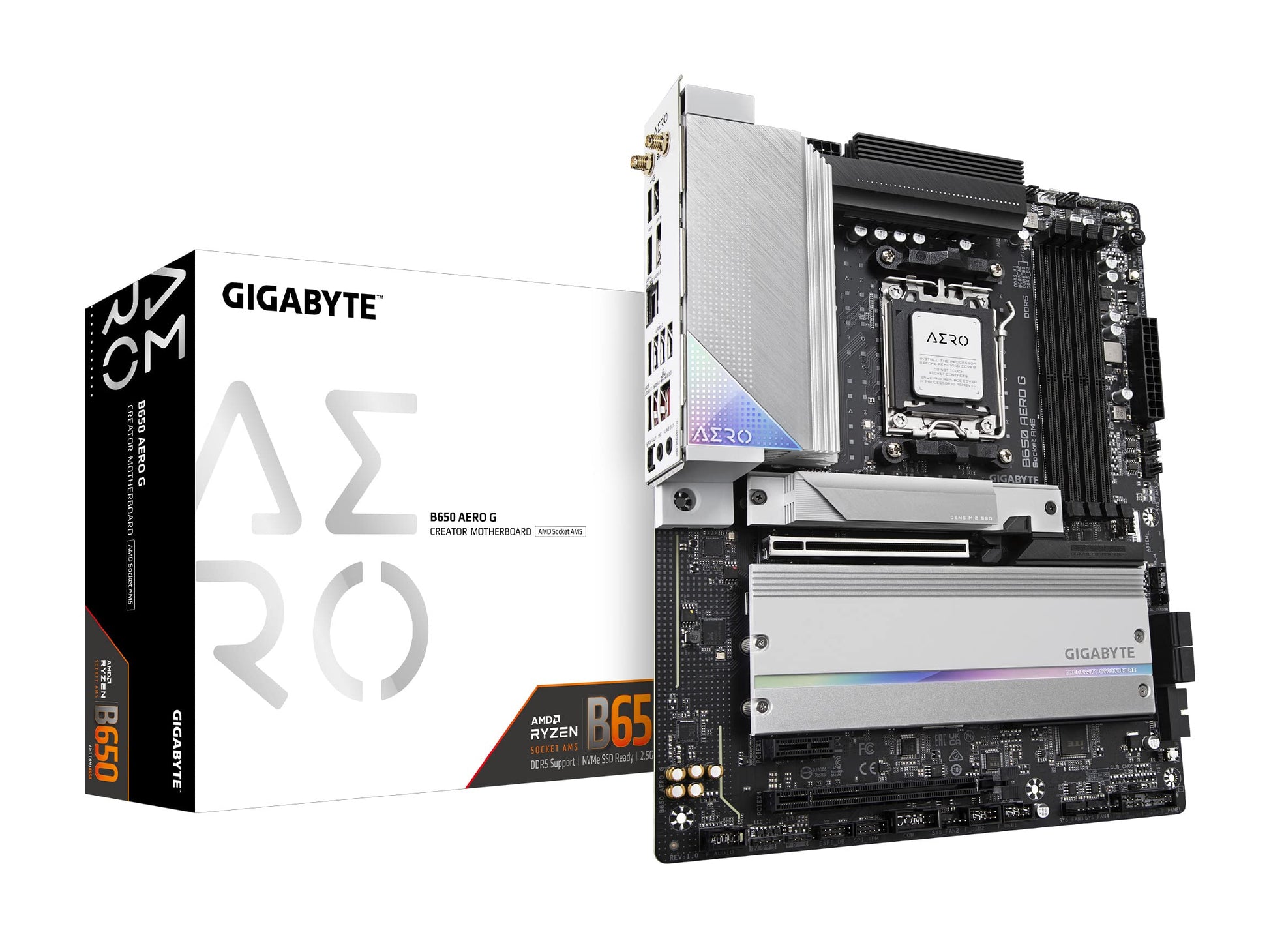

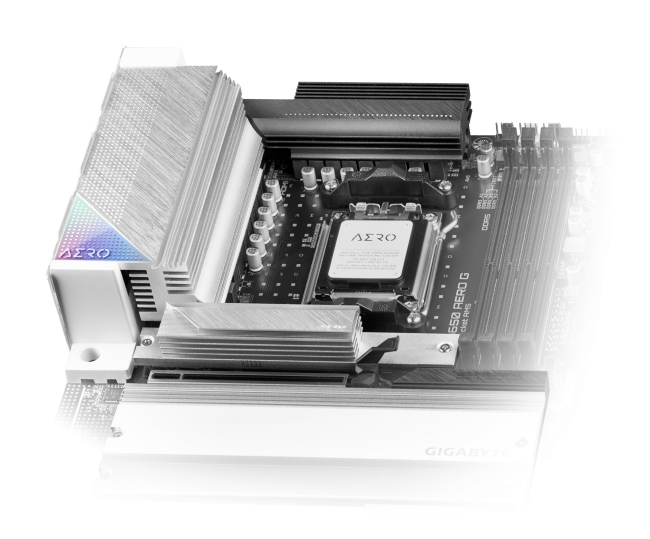

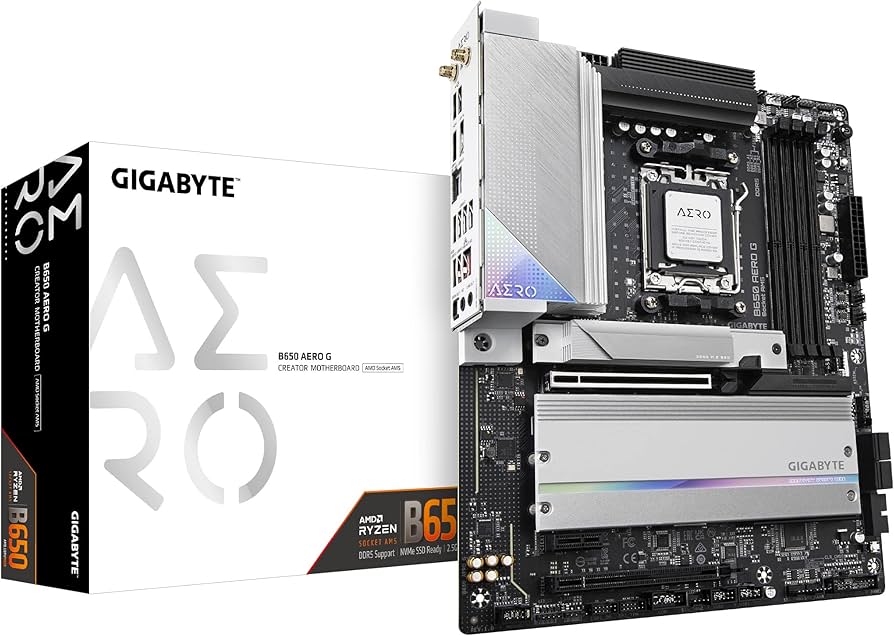

GIGABYTE B650 AERO G ATX Motherboard AMD B650 Socket AM5 DDR5

VENDOR: GIGABYTE Mfg Part#: B650 AERO G UPC#: 889523033708
1 4
Photo is for illustration purposes only. Actual product may be different.
$348.00
$348.00
Sale Sold out
MSRP: $352.00
Shipping calculated at checkout.
  • ATX motherboard built on AMD B650 chipset with support for AMD Ryzen 7000/8000 Series processors
  • Supports DDR5 memory up to 192GB, non-ECC
  • VisionLINK feature integrates video, data, and USB-C charging on one port
  • Networking includes Intel 2.5GbE LAN and Wi-Fi 6E 802.11ax
  • PCIe 4.0 x16 slot with EZ-Latch for quick GPU and M.2 installation
  • Outputs include HDMI, DisplayPort, multiple USB ports, and S/PDIF Out

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for creatives and professionals with VisionLINK and high-speed memory support
  • Modern networking with Intel 2.5GbE LAN and integrated Wi-Fi 6E ensures faster data and connectivity
  • EZ-Latch tool-free design reduces build time and simplifies upgrades, enhancing system flexibility

Product Overview

The GIGABYTE B650 AERO G ATX motherboard is an advanced solution built around the AMD B650 chipset and compatible with the AMD Ryzen 7000 and 8000 Series processors. Equipped with Socket AM5 and DDR5 memory support for up to 192GB of non-ECC RAM, it’s tailored for professionals demanding high-speed processing. VisionLINK enables video output, data, and USB-C charging through one port, reducing clutter. Connectivity is robust, with Intel 2.5GbE LAN, Wi-Fi 6E, HDMI, DisplayPort, S/PDIF out, and broad USB/RJ-45 support. Build efficiency is enhanced by EZ-Latch technology, supporting tool-free installation of components. With strong expansion support and a feature-rich layout, it empowers content creators and power users to build flexible, high-speed systems with modern connectivity.

Specifications

Product Overview
Product Type Motherboard
Form Factor ATX
Chipset AMD B650
Processor Socket Socket AM5
Compatible Processors AMD Ryzen 7000 / 8000 Series
Memory Type DDR5
Maximum Memory Supported 192 GB
Memory Features Non-ECC, Unbuffered
Memory Slots 4 x DIMM
Power Phases 16+2+2 Digital VRM Phase Design
Power Connector 1 x 24-pin ATX + 2 x 8-pin CPU
Weight 1.56 kg

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.3
Wireless Antenna 2 x SMA antenna connectors (included antenna)
Wi-Fi Frequency Bands 2.4 GHz, 5 GHz, 6 GHz

Compliance & Origin
Country of Origin China
Certifications CE, FCC, BSMI, KC, RCM, EAC
RoHS Compliant Yes

Advanced Security Features
Trusted Platform Module (TPM) TPM Header (Supports discrete TPM modules)
Secure Boot Yes
BIOS Protection Dual BIOS Support

Interfaces
PCIe Slots 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1
M.2 Slots 3 x M.2 PCIe 5.0/4.0 NVMe slots
SATA Ports 4 x SATA III 6Gb/s ports
USB Ports (Rear) 1 x USB-C 3.2 Gen 2x2, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Ports (Internal Headers) 1 x USB-C Gen2x2, 2 x USB 3.2 Gen1, 4 x USB 2.0
LAN Port 1 x Intel 2.5GbE RJ-45
Audio Jacks 5 x Audio Jacks + 1 x Optical S/PDIF Out
Video Outputs 1 x HDMI 2.1, 1 x DisplayPort 1.4 (via USB-C VisionLINK)
Internal Connectors Front Panel Header, CPU Fan Header, RGB Headers, SATA, USB Headers

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
Operating Temperature 0°C – 60°C
Storage Temperature -40°C – 70°C
Operating Humidity 10% – 85% (non-condensing)
Storage Humidity 5% – 95% (non-condensing)

Cloud Management & Licensing
Management Interface UEFI BIOS with Q-Flash and Firmware Update Tool
Q-Flash Plus Yes, for BIOS update without CPU/RAM
Included Software GIGABYTE Control Center, EasyTune, System Information Viewer
