GIGABYTE B650 AORUS ELITE AX ICE ATX Motherboard, AM5, DDR5

VENDOR: GIGABYTE Mfg Part#: B650 AORUS ELITE AX ICE UPC#: 889523040362
1 4

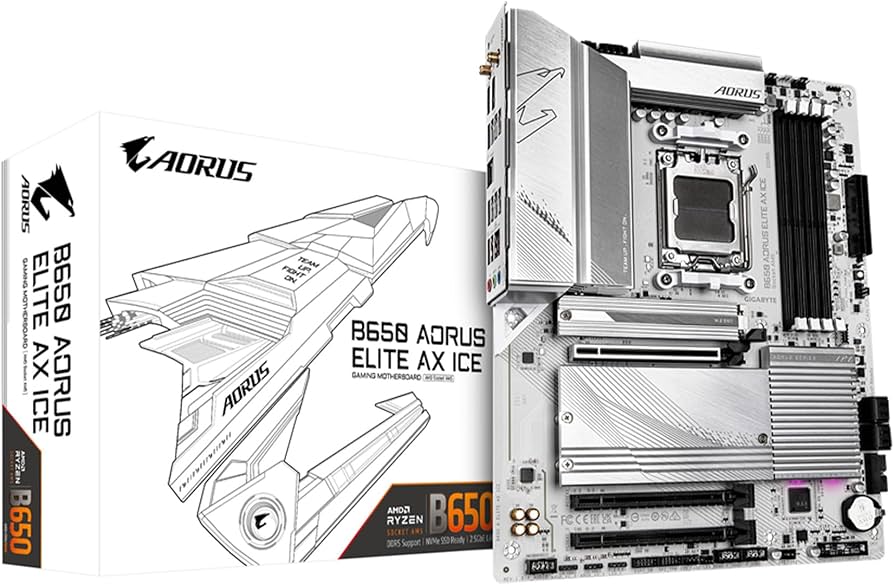

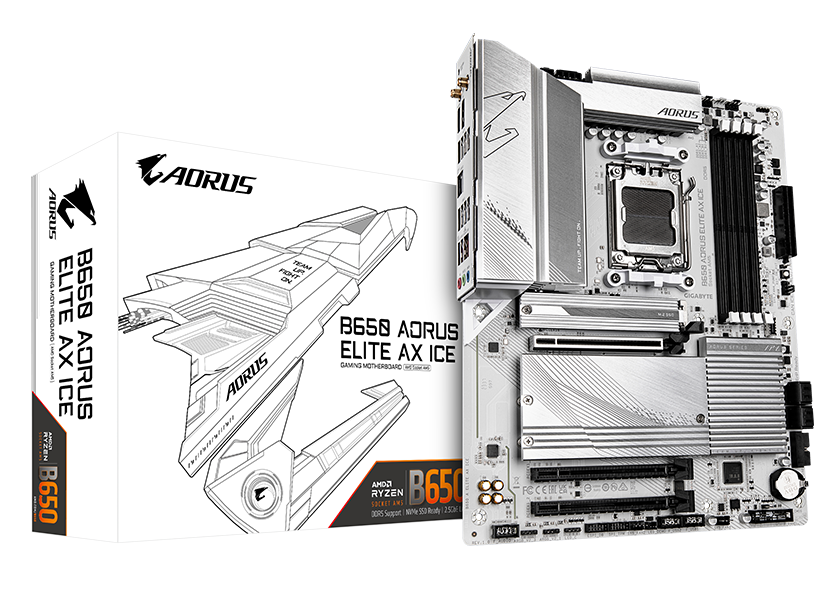

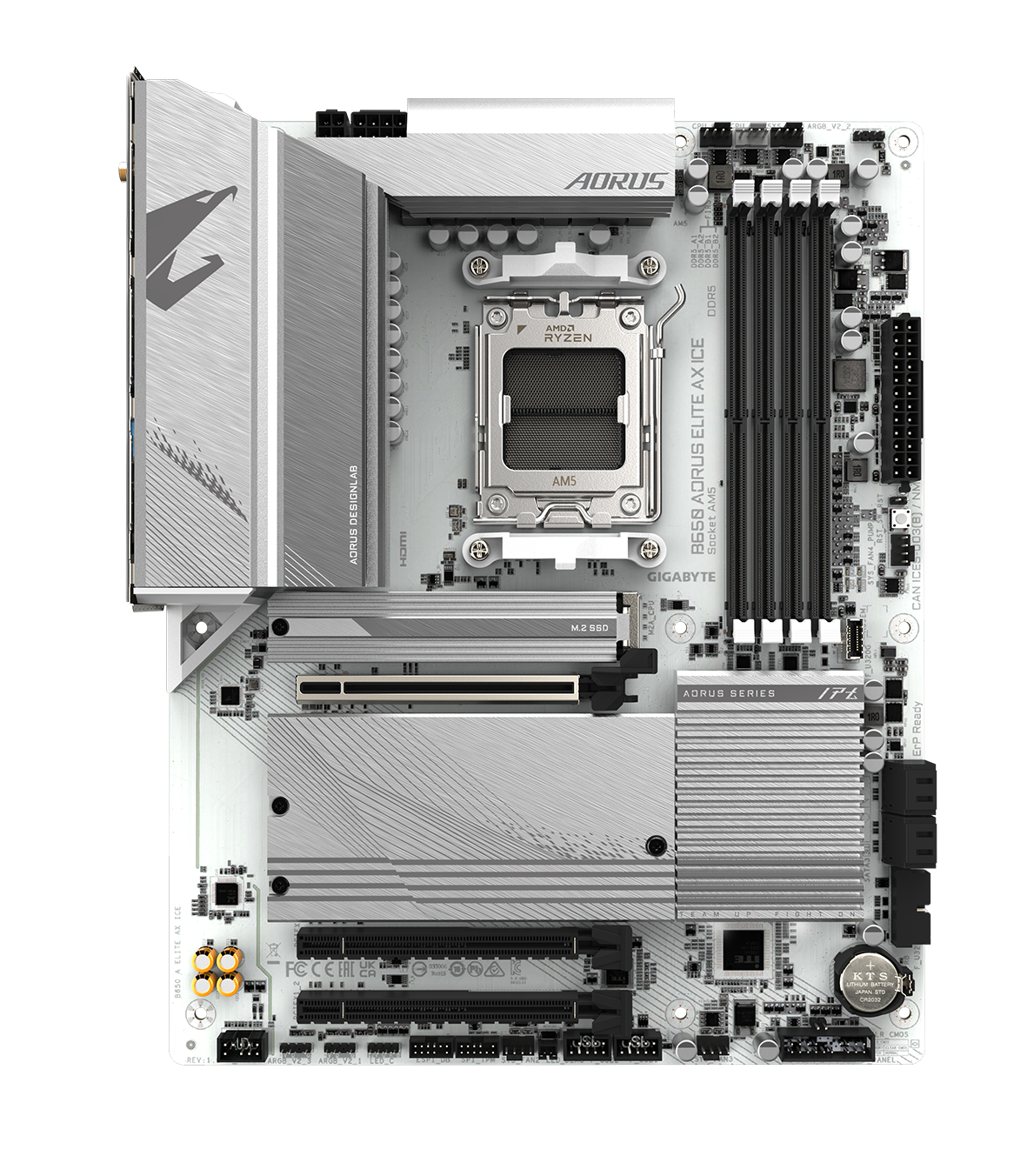

Photo is for illustration purposes only. Actual product may be different.
$339.00
$339.00
Sale Sold out
MSRP: $345.00
Shipping calculated at checkout.
  • - ATX form factor based on AMD B650 chipset
  • - Supports AMD Ryzen 7000/8000 Series processors with AM5 socket
  • - Accommodates up to 192GB of DDR5 non-ECC memory
  • - Includes HDMI and DisplayPort video outputs for integrated graphics
  • - Integrated USB, RJ-45 Ethernet, and audio interfaces
  • - Twin 12+2+2 Phases Digital VRM for consistent power delivery

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Supports the latest AMD Ryzen 7000 and 8000 series, providing future-ready CPU compatibility
  • - Offers high memory capacity (up to 192GB DDR5), ideal for demanding multitasking, gaming, or content creation
  • - Robust connectivity with HDMI, DisplayPort, and high-speed Ethernet ensures versatile performance across applications

Product Overview

The GIGABYTE B650 AORUS ELITE AX ICE motherboard delivers reliable, high-end performance for modern desktop systems. Designed in the ATX form factor and powered by the AMD B650 chipset, it supports the latest AMD Ryzen 7000 and 8000 Series processors via the AM5 socket. It is engineered to handle demanding applications with support for up to 192GB of high-speed DDR5 memory and utilizes a powerful Twin 12+2+2 Phase Digital VRM solution for enhanced power delivery and system stability.

Built with a wide range of expansion and connectivity options, the board includes one PCI Express x16 slot linked to the CPU for graphics or other high-bandwidth devices. Connectivity features include HDMI and DisplayPort video outputs, USB and RJ-45 Ethernet ports, audio jacks, and SMA antenna connectors for Wi-Fi modules. These features make it an excellent platform for gamers, content creators, and professionals who require versatile connectivity and high performance.

Packaged in a sleek and cooling-friendly layout, the GIGABYTE B650 AORUS ELITE AX ICE blends aesthetics with operational efficiency. Measuring 30.5 cm by 24.4 cm, it fits standard full-sized ATX cases and is manufactured in China with industry-leading quality standards.

Specifications

Product Overview
Model B650 AORUS ELITE AX ICE
Product Type Motherboard
Form Factor ATX
Chipset AMD B650
Socket Type Socket AM5
Supported Processor Series AMD Ryzen 7000 / Ryzen 8000 Series
Power Phases Twin 12+2+2 Digital VRM
Maximum RAM Supported 192 GB
RAM Technology DDR5
Data Integrity Check Non-ECC
Power Connector 24-pin ATX main power, 8-pin + 4-pin ATX 12V
UPC 889523040362

Wireless Features
Wireless LAN Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.3
Antenna Interface 2 x SMA connectors
Wi-Fi Bands 2.4GHz / 5GHz / 6GHz (Tri-band)

Compliance & Origin
Country of Origin China
Certifications CE, FCC, RoHS

Advanced Security Features
TPM Support Discrete TPM header onboard
Secure Boot Yes
UEFI Secure BIOS Yes

Interfaces
PCIe x16 Slots 1 x PCIe 4.0 x16 (CPU)
Additional PCIe Slots 2 x PCIe 3.0 x1
USB Ports (Rear) 1 x USB-C 3.2 Gen 2, 3 x USB-A 3.2 Gen 2, 4 x USB-A 2.0
USB Ports (Internal Headers) 1 x USB-C 3.2 Gen 1, 1 x USB-A 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
LAN Port 1 x RJ-45 (2.5GbE)
Video Output Ports 1 x HDMI 2.1, 1 x DisplayPort 1.4
Audio Jacks 5 x Audio jacks + 1 x Optical S/PDIF out
M.2 Slots 3 x M.2 Socket 3 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4)
SATA Ports 4 x SATA 6Gb/s
Internal Connectors Front Panel Audio, RGB/ARGB headers, Fan headers, TPM header

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
Mounting 9-hole ATX mounting
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
BIOS Features UEFI AMI BIOS with Q-Flash Plus
Management Interface GIGABYTE APP Center, BIOS Setup via Q-Flash Plus
