Products Memory, Storage and Components GIGABYTE B650 AORUS ELITE A...

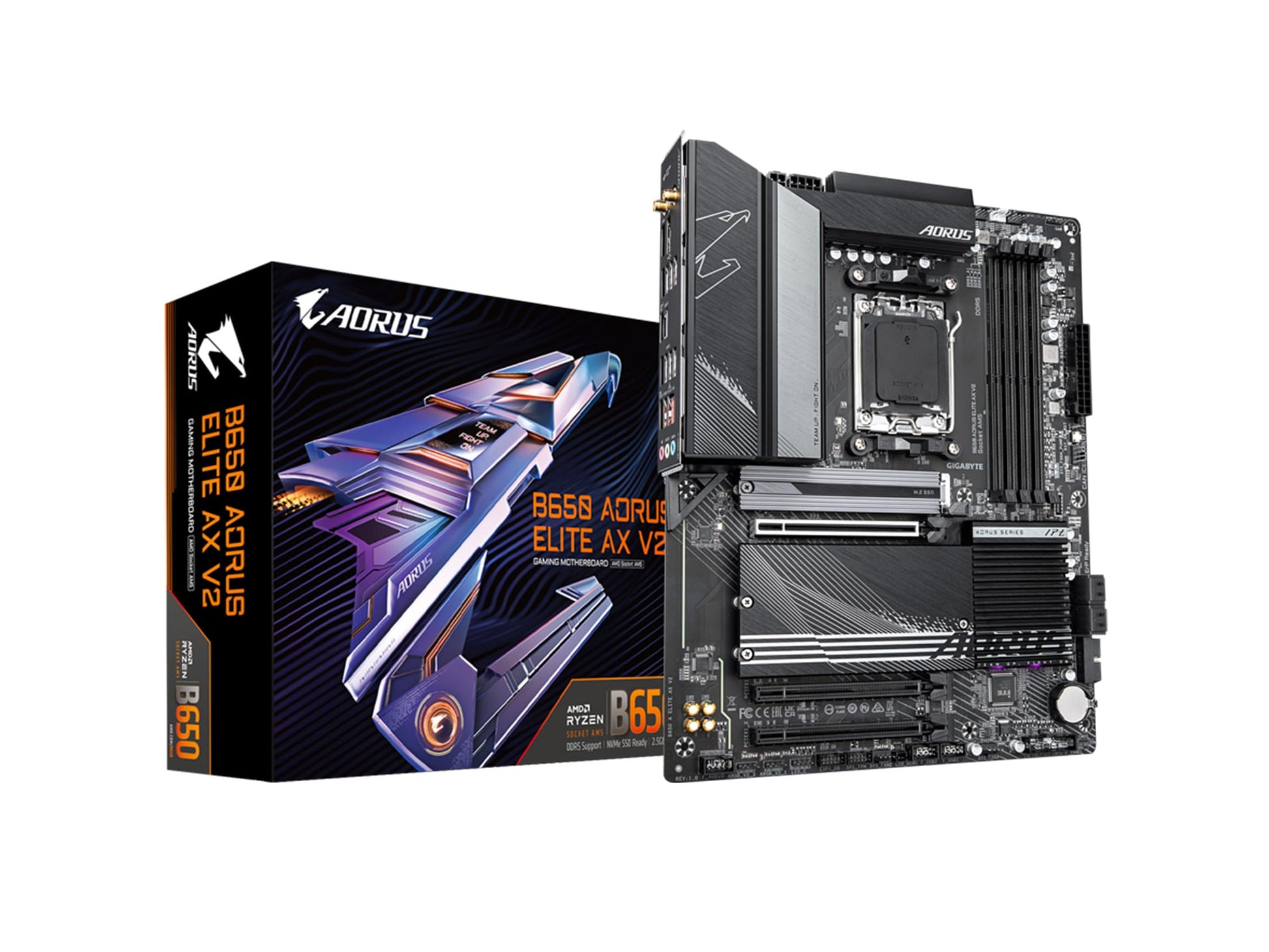

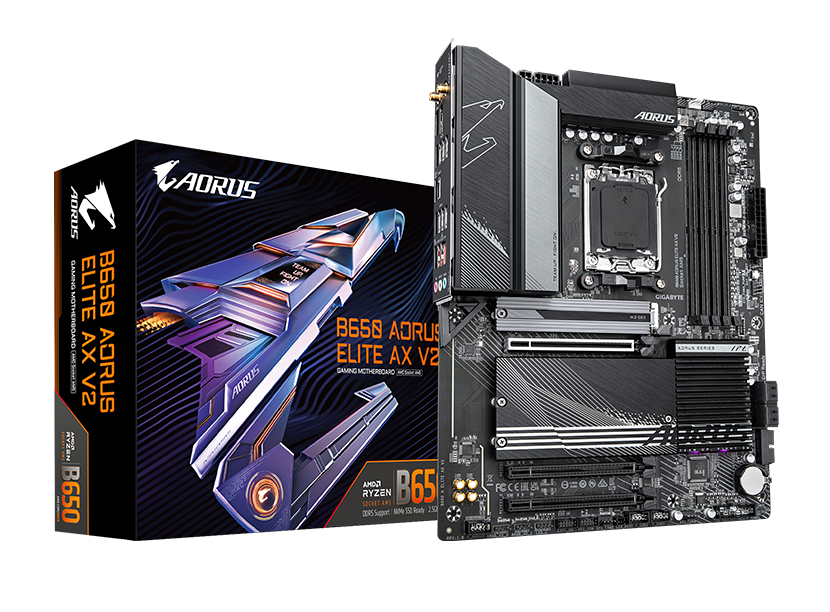

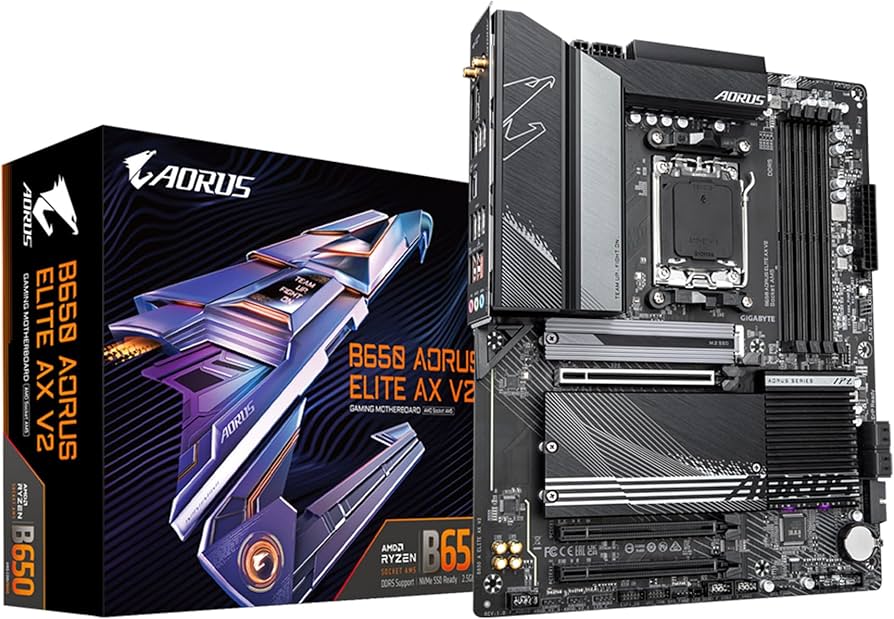

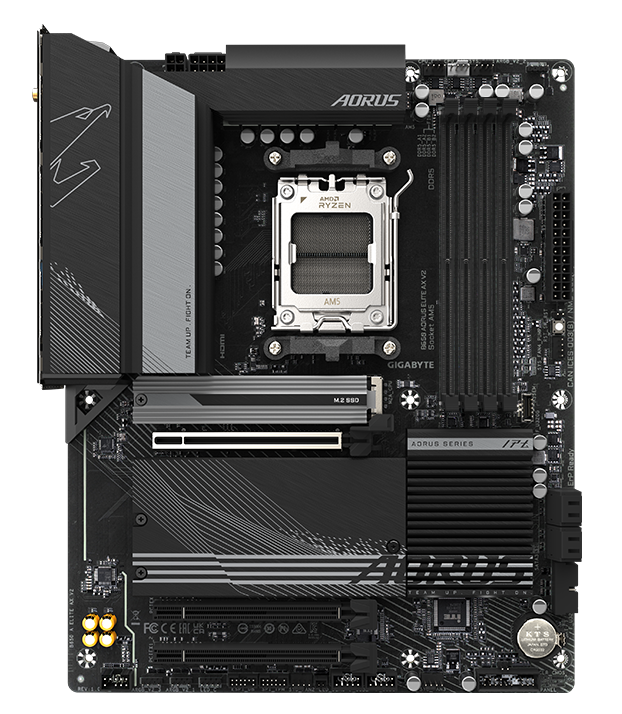

GIGABYTE B650 AORUS ELITE AX V2 ATX Motherboard, AMD Socket AM5, DDR5

VENDOR: GIGABYTE Mfg Part#: B650 AORUS ELITE AX V2 UPC#: 889523039984
1 4
Photo is for illustration purposes only. Actual product may be different.
$302.00
$302.00
Sale Sold out
MSRP: $310.00
Shipping calculated at checkout.
  • ATX form factor with AMD B650 chipset for stability and compatibility
  • Supports AMD Ryzen 7000/8000 Series processors via Socket AM5
  • Dual-channel DDR5 memory support up to 192GB, non-ECC
  • Twin 12+2+2 Phases Digital VRM solution for enhanced power delivery
  • Interfaces: USB, RJ-45 Ethernet, DisplayPort, and HDMI
  • Integrated PCI Express x16 slot for high-performance GPU support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Built to support next-gen AMD Ryzen 7000 and 8000 Series processors, ensuring upgrade compatibility and longevity
  • DDR5 memory architecture enables higher speeds and larger capacity for demanding applications
  • Comprehensive interface set including USB, HDMI, DisplayPort, and Ethernet maximizes connectivity

Product Overview

The GIGABYTE B650 AORUS ELITE AX V2 motherboard brings together high-end performance features and future-ready hardware compatibility in an ATX form factor. Supporting AMD Ryzen 7000 and 8000 Series processors via the AM5 socket, this board leverages the AMD B650 chipset to deliver a stable and responsive computing foundation. Enhanced memory capabilities include DDR5 RAM support up to 192GB and non-ECC architecture, ideal for demanding multitasking environments.

Equipped with a Twin 12+2+2 Phases Digital VRM solution, the B650 AORUS ELITE AX V2 ensures consistent and efficient power delivery to the CPU, even under heavy workloads. Expansion needs are met with a PCI Express x16 slot, and connectivity includes modern standards like DisplayPort, HDMI, USB, and RJ-45 Ethernet. Audio jacks and SMA antenna connectors are also available for extended multimedia and wireless capabilities.

Measuring 30.5 cm x 24.4 cm, this motherboard combines size efficiency with performance-focused features, making it a strong choice for gamers, PC builders, and professionals seeking reliable platform longevity and upgrade flexibility.

Specifications

Product Overview
Product Type Motherboard
Form Factor ATX
Chipset AMD B650
Processor Socket AM5
Supported CPU Series AMD Ryzen 7000 / 8000 Series
Power Phase Design Twin 12+2+2 Phases Digital VRM
Maximum Memory Supported 192 GB
Memory Technology DDR5
ECC Support Non-ECC
UPC 889523039984
Model Number B650 AORUS ELITE AX V2
Manufacturer GIGABYTE

Wireless Features
Wireless LAN Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.3
Wi-Fi Antennas 2 x External antennas (via SMA connectors)
Wi-Fi Frequency Bands 2.4GHz, 5GHz, 6GHz

Compliance & Origin
Country of Origin China
RoHS Compliance Yes
Certification CE, FCC, BSMI

Advanced Security Features
TPM Support TPM 2.0 header onboard
Secure Boot Yes

Interfaces
Display Ports 1 x DisplayPort
HDMI Ports 1 x HDMI port
USB Ports (Rear) 10 x USB ports (including Type-C and Type-A)
USB Ports (Internal Headers) 7 x USB headers (internal)
RJ-45 (LAN) 1 x 2.5GbE LAN port (Realtek 8125B)
Audio Jacks 5 x Audio jacks + 1 x Optical S/PDIF Out
SMA Antenna Connectors 2 x connectors for Wi-Fi antennas
PCIe x16 Slots 1 x PCIe 4.0 x16 (CPU)
PCIe x1 Slots 1 x PCIe 3.0 x1
PCIe x4 Slots 1 x PCIe 4.0 x4 (Chipset)
M.2 Slots 3 x M.2 (2 x PCIe 4.0 x4, 1 x PCIe 5.0 x4)
SATA Ports 4 x SATA III 6Gb/s ports

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
PCB Color Black
Heatsink Integrated VRM and chipset heatsinks
Operating Temperature Range 0°C to 60°C
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
BIOS Type UEFI AMI BIOS
BIOS Features Q-Flash Plus, Secure Boot, multilingual BIOS
