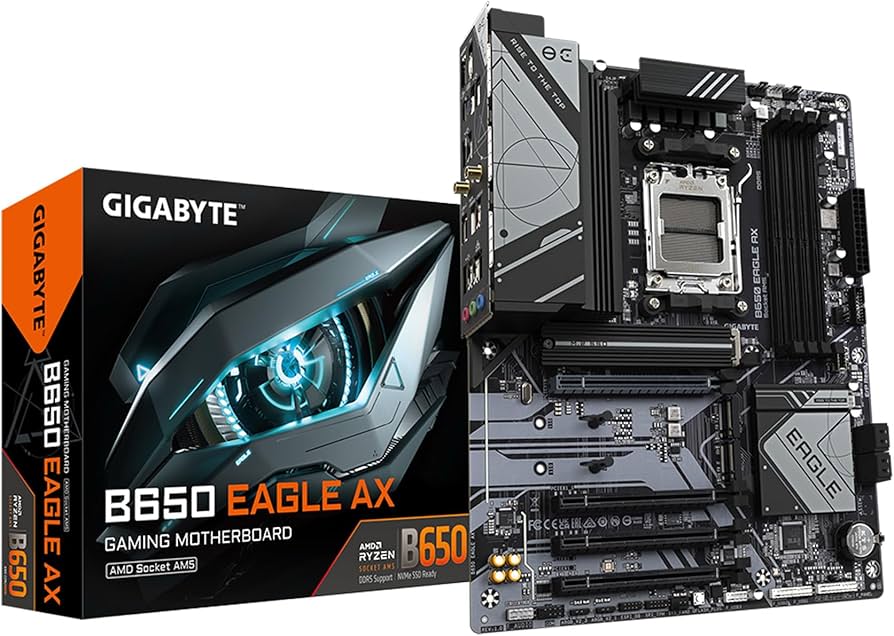

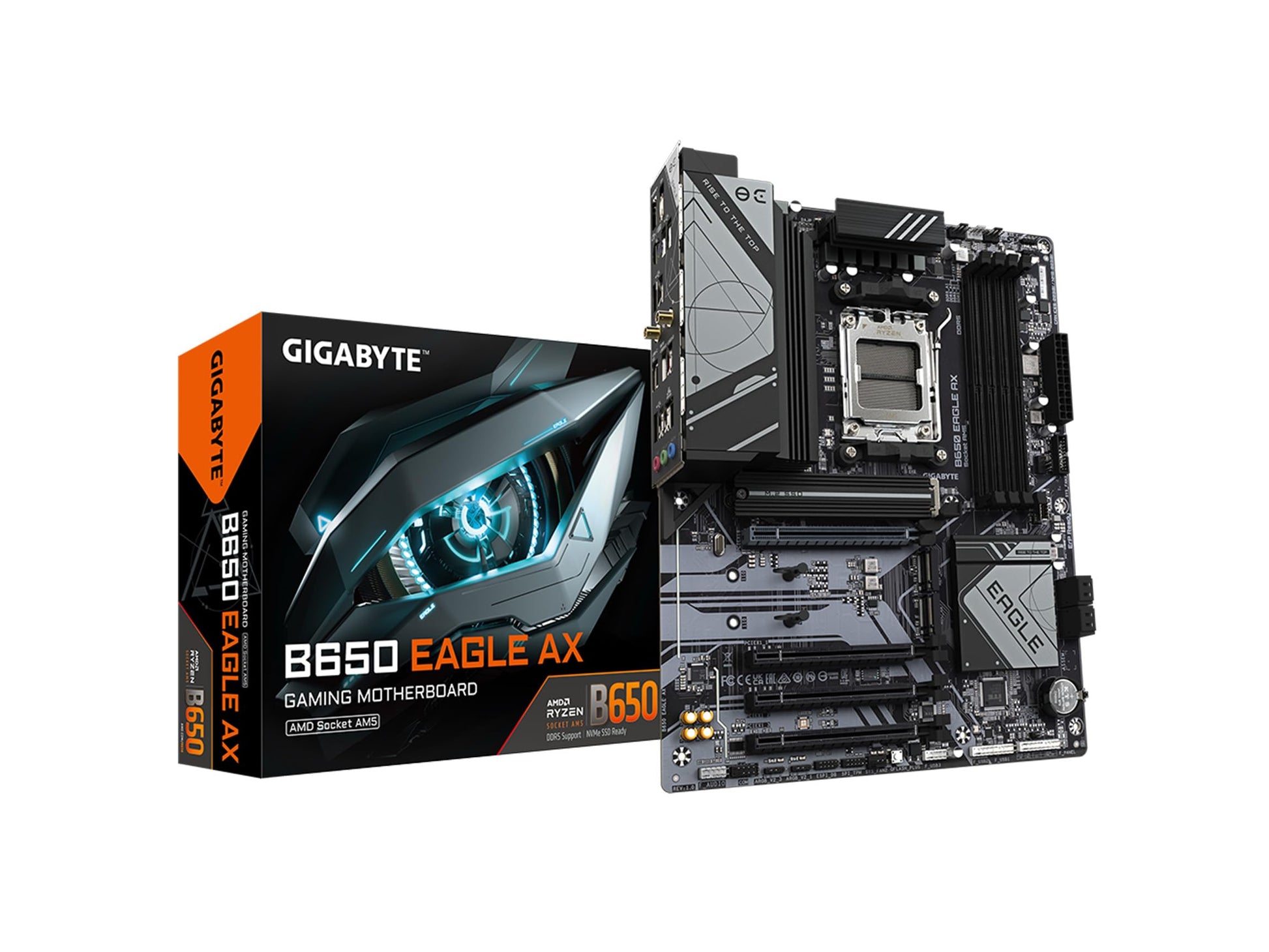

GIGABYTE B650 EAGLE AX AM5 ATX DDR5 Motherboard

VENDOR: GIGABYTE Mfg Part#: B650 EAGLE AX UPC#: 889523041703
1 4
Photo is for illustration purposes only. Actual product may be different.
$243.00
$243.00
Sale Sold out
MSRP: $253.00
Shipping calculated at checkout.
  • AM5 socket compatibility for Ryzen 7000/8000 Series CPUs
  • Supports up to 192GB DDR5 RAM across four DIMM slots with XMP and AMD EXPO support
  • Triple M.2 slots including PCIe 5.0, plus four SATA 6Gb/s ports with RAID support
  • Integrated Wi-Fi 6E and Realtek Gigabit Ethernet for high-speed networking
  • USB-C 3.2 Gen 2x2 and extensive USB port options for peripheral connectivity
  • Includes premium features like M.2 Thermal Guard, Q-Flash Plus, and RGB Fusion

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proofed with PCIe 5.0 M.2 support for next-gen NVMe storage performance
  • Robust memory support with DDR5 compatibility and various overclocking options
  • Comprehensive system protection and cooling with Smart Fan 6, 6-layer PCB, and thermal features

Product Overview

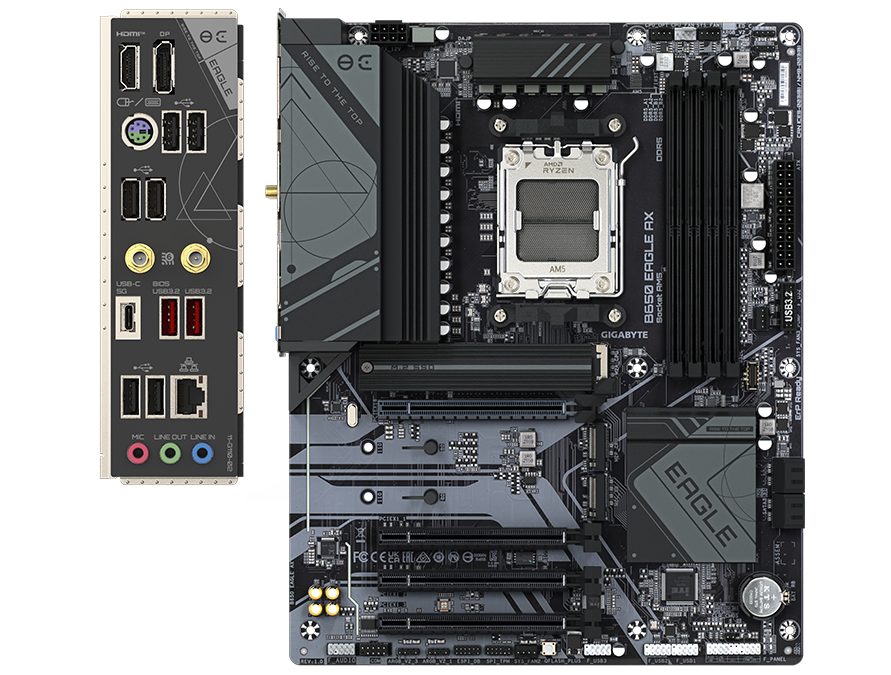

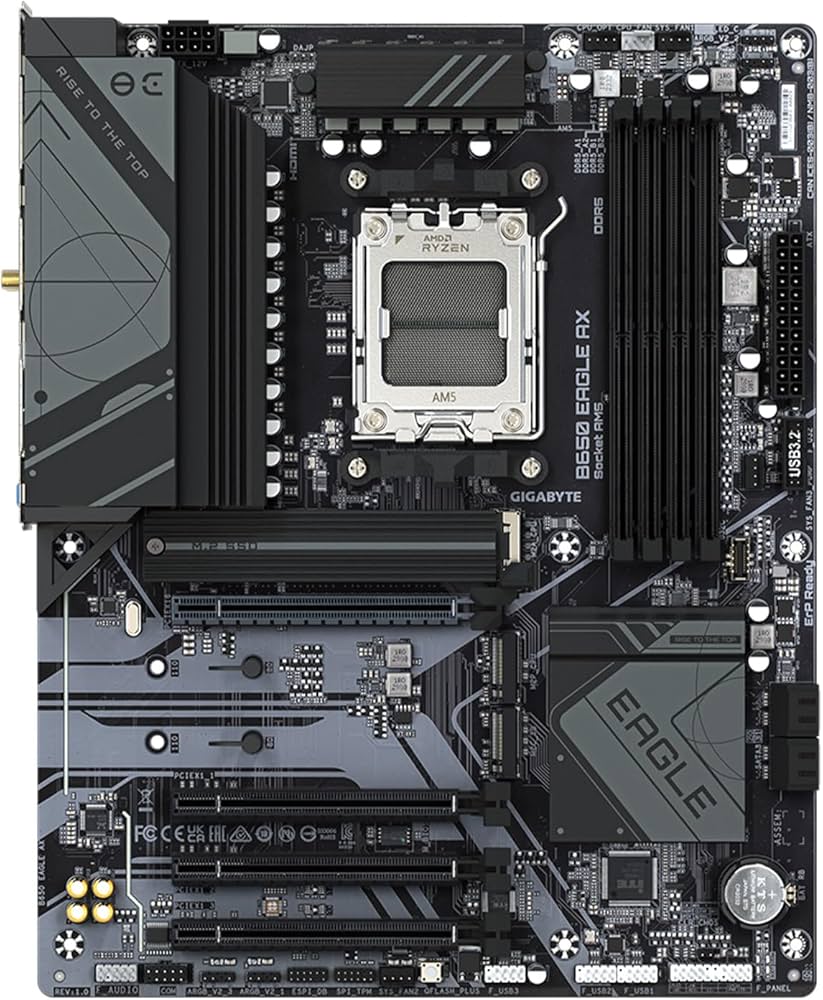

The GIGABYTE B650 EAGLE AX motherboard is built on the AMD B650 chipset and supports the AM5 socket, making it compatible with Ryzen 7000 and 8000 Series CPUs. It delivers high-end performance with support for DDR5 memory across four DIMM slots, up to 192GB of non-ECC, unbuffered RAM. With multiple overclocking frequencies reaching up to 7600 MHz (O.C.), it offers excellent tuning capabilities for enthusiasts. The board is also equipped with triple M.2 slots—one of which supports PCIe 5.0—and four SATA 6Gb/s ports, enabling RAID configurations for both NVMe and SATA drives. This makes it ideal for demanding workloads and storage-intensive applications.

High-speed connectivity is facilitated by Wi-Fi 6E, Gigabit Ethernet via the Realtek controller, and extensive rear and internal USB options, including USB-C 3.2 Gen 2x2 support. The board includes premium features such as Q-Flash Plus, RGB Fusion, M.2 Thermal Guard, and GIGABYTE Smart Fan 6 for optimized thermal management. The pre-mounted I/O shield and PCIe EZ Latch simplify installation and maintenance. Integrated HD 8-channel audio ensures immersive multimedia experiences. Ideal for gamers, creators, and PC builders, this ATX board offers performance, durability, and expandability in one comprehensive package.

Specifications

Product Overview
Product Type Motherboard - ATX
Chipset Type AMD B650
Processor Socket Socket AM5
Max Processors Qty 1
Compatible Processors Ryzen (supports Ryzen 7000/8000 Series)
Form Factor ATX
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
BIOS Type AMI
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection
Hardware Features Q-Flash, Ultra Durable, 6 Layer PCB, Q-Flash Plus, Audio Noise Guard, RGB FUSION, M.2 Thermal Guard, pre-mounted I/O shield, GIGABYTE Smart Fan 6, PCIe EZ Latch, High-end Audio Capacitors, 12+2+2 Phase Power Design, MOSFET Heatsink

Storage
Storage Ports 4 x SATA-600 (RAID), 3 x M.2
Storage Interfaces SATA 6Gb/s: 4 x 7pin (RAID 0/1/10); PCIe 4.0 M.2: 2 slots; PCIe 5.0 M.2: 1 slot

Interfaces
External Interfaces 1 x HDMI, 1 x DisplayPort, 6 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 1, 1 x LAN (Gigabit Ethernet), 1 x PS/2, 3 x audio jacks, 2 x antenna connectors
Internal Interfaces 6 x USB 2.0 (headers), 2 x USB 3.2 Gen 1 (headers), 1 x USB-C 3.2 Gen 1 (header), 1 x audio header, 1 x SPI header, 1 x serial header
USB Ports 1 x USB-C 3.2 Gen 2, 2 x USB 3.2 Gen 1, 6 x USB 2.0 (rear); 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 1, 6 x USB 2.0 (internal headers)
Video Outputs 1 x HDMI, 1 x DisplayPort
Audio HD Audio (8-channel)

Networking
Network Controller Realtek Gigabit Ethernet
LAN Gigabit Ethernet

Compliance & Origin
Compliant Standards HD Audio, DisplayPort 1.4, HDCP 2.3
Country of Origin China
TAA Compliance No

Package Contents
Included Accessories 2 antennas, 1 x M.2 screw
Cables Included 2 x Serial ATA cable

Memory
Max RAM Size 192 GB
RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered
RAM Technology DDR5
Bus Clock Up to 7600 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Memory Features Dual channel memory architecture, Intel XMP, AMD EXPO

Expansion Slots
Expansion Slots 1 x PCIe 4.0 x16, 3 x PCIe 3.0 x16 (x1 mode), 3 x M.2 Key M

Wireless Features
Wi-Fi Standard Wi-Fi 6E
Antennas Included 2 antennas

Physical & Environmental
Width 12 in
Depth 9.6 in

Cloud Management & Licensing
Software Included GIGABYTE Control Center, Norton Internet Security (OEM Version)
