| Product Type | Motherboard |
| Manufacturer | GIGABYTE |
| Model | B650 GAMING X AX V2 (rev. 1.x) |
| Chipset | AMD B650 |
| Form Factor | ATX |
| Socket Type | AMD Socket AM5 |
| Supported Processor Series | AMD Ryzen 7000 Series |
| Power Phases | 12+2+1 Phases Digital VRM |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V |
| Weight | approx. 2.9 lbs (1.3 kg) |
| Power Requirements | 12V DC via ATX power supply |

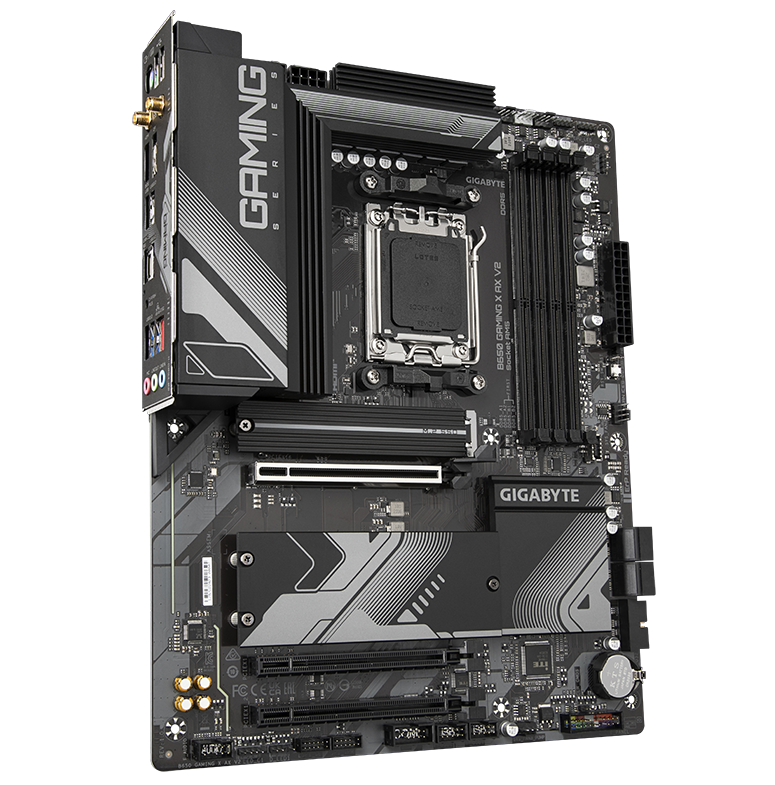

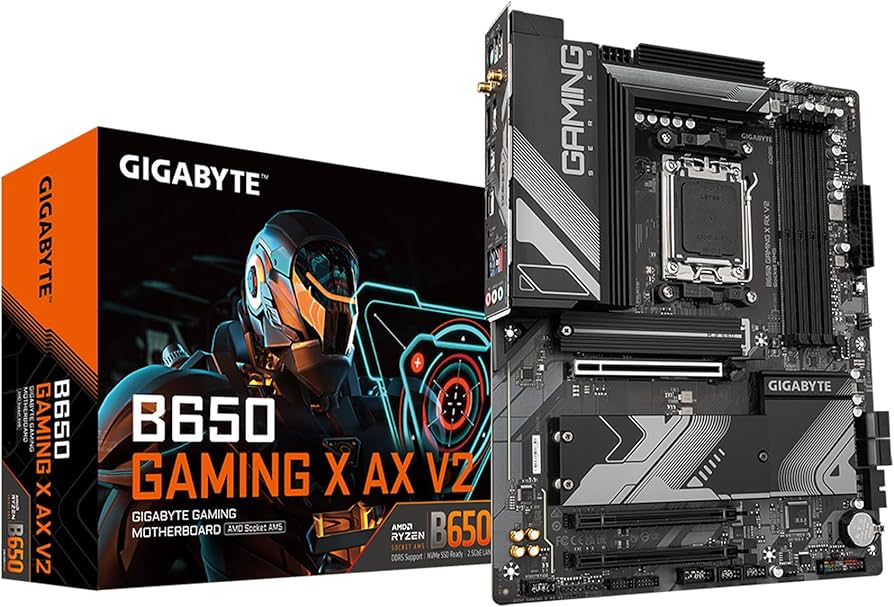

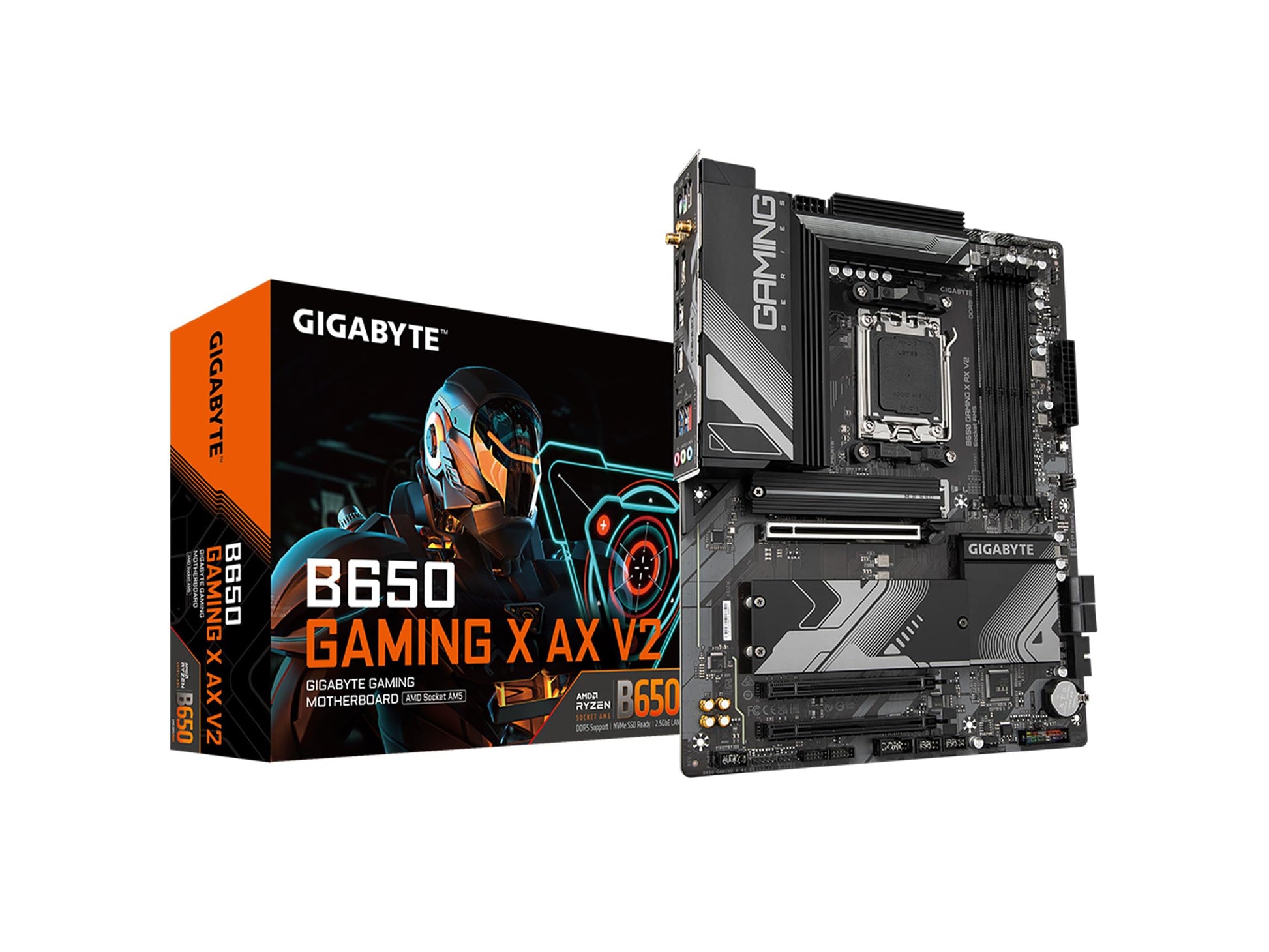

GIGABYTE B650 GAMING X AX V2 ATX DDR5 Motherboard
Photo is for illustration purposes only. Actual product may be different.
Regular price
$285.00
Regular price
Sale price
$285.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- ATX motherboard featuring AMD B650 chipset
- Supports high-speed DDR5 memory
- Triple M.2 slots and PCIe 5.0 interface for fast storage and expansion
- Integrated Wi-Fi 6E and 2.5GbE LAN for enhanced network performance
- USB 3.2 Gen2x2 Type-C connectivity
- 24-pin ATX power connector for robust power delivery
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers future-proof memory and storage with DDR5 and PCIe 5.0 support
- Provides premium connectivity including Wi-Fi 6E and 2.5GbE LAN for advanced networking
- Ideal platform for AMD-based gaming or productivity builds using the latest hardware standards
Product Overview
The GIGABYTE B650 GAMING X AX V2 motherboard leverages the AMD B650 chipset and ATX form factor to deliver next-gen performance. It supports DDR5 memory for increased bandwidth, includes triple M.2 slots, and is ready for PCIe 5.0 devices. Features such as USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, and Realtek 2.5GbE LAN provide outstanding connectivity and fast networking. Designed for gaming and performance enthusiasts, it's ideal for future-proof AMD platform builds.
Specifications
Product Overview
Wireless Features
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.3 |
| Wireless Antenna | 2 x External Antenna Connectors |
Physical & Environmental
| Dimensions | 30.5 x 24.4 cm (12 x 9.6 inches) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% non-condensing |
Cloud Management & Licensing
| Management Features | GIGABYTE BIOS & APP Center, Smart Fan 6 |
| BIOS Type | AMI UEFI BIOS |
| BIOS Features | Q-Flash Plus, Secure Boot, Resizable BAR Support |

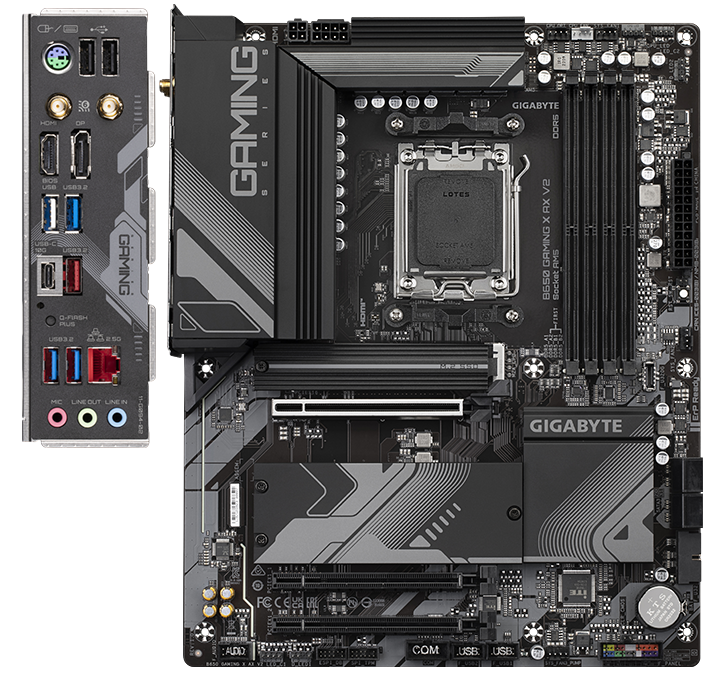

Interfaces
| PCIe x16 Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| M.2 Slots | 3 x M.2 (2 x PCIe 4.0 x4, 1 x PCIe 5.0 x4) |
| SATA Ports | 4 x SATA 6Gb/s |
| Internal USB Headers | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| LAN Port | 1 x Realtek 2.5GbE LAN |
| Audio Jacks | 3 x audio jacks (Line In / Line Out / Mic), S/PDIF out |
| Display Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
Memory Support
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Channel Support | Dual Channel |
| ECC Support | Unbuffered ECC & Non-ECC |
| XMP Support | AMD EXPO & Intel XMP |
Compliance & Origin
| Country of Origin | China |
| TAA Compliant | No |
| Certifications | CE, FCC, BSMI, KC, cTUVus |
| RoHS Compliance | Yes |
Advanced Security Features
| Firmware TPM | TPM 2.0 (fTPM) integrated in AMD CPU |
| Secure Boot | Yes |
| BIOS Password Protection | Yes |
