| Product Type | Motherboard |
| Chipset | AMD B650 |
| Form Factor | Mini-ITX |
| Series | AORUS |
| Model | B650I AORUS ULTRA |
| CPU Socket Type | AM5 |
| Supported CPU | AMD Ryzen 7000 Series |
| Power Phases | 8+2+1 Digital VRM Design |
| Power Connector | 24-pin ATX Main + 8-pin ATX 12V |
| Weight | 1.2 lbs (approx.) |

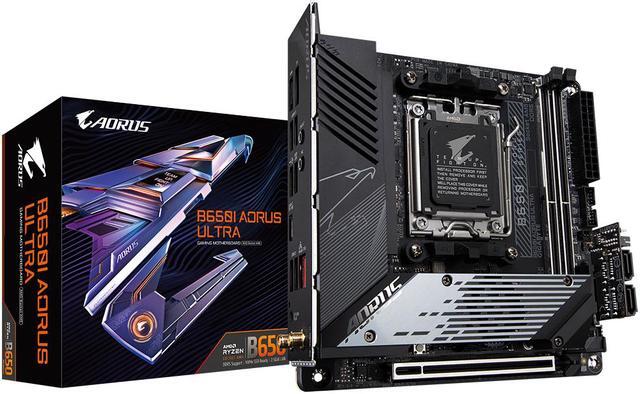

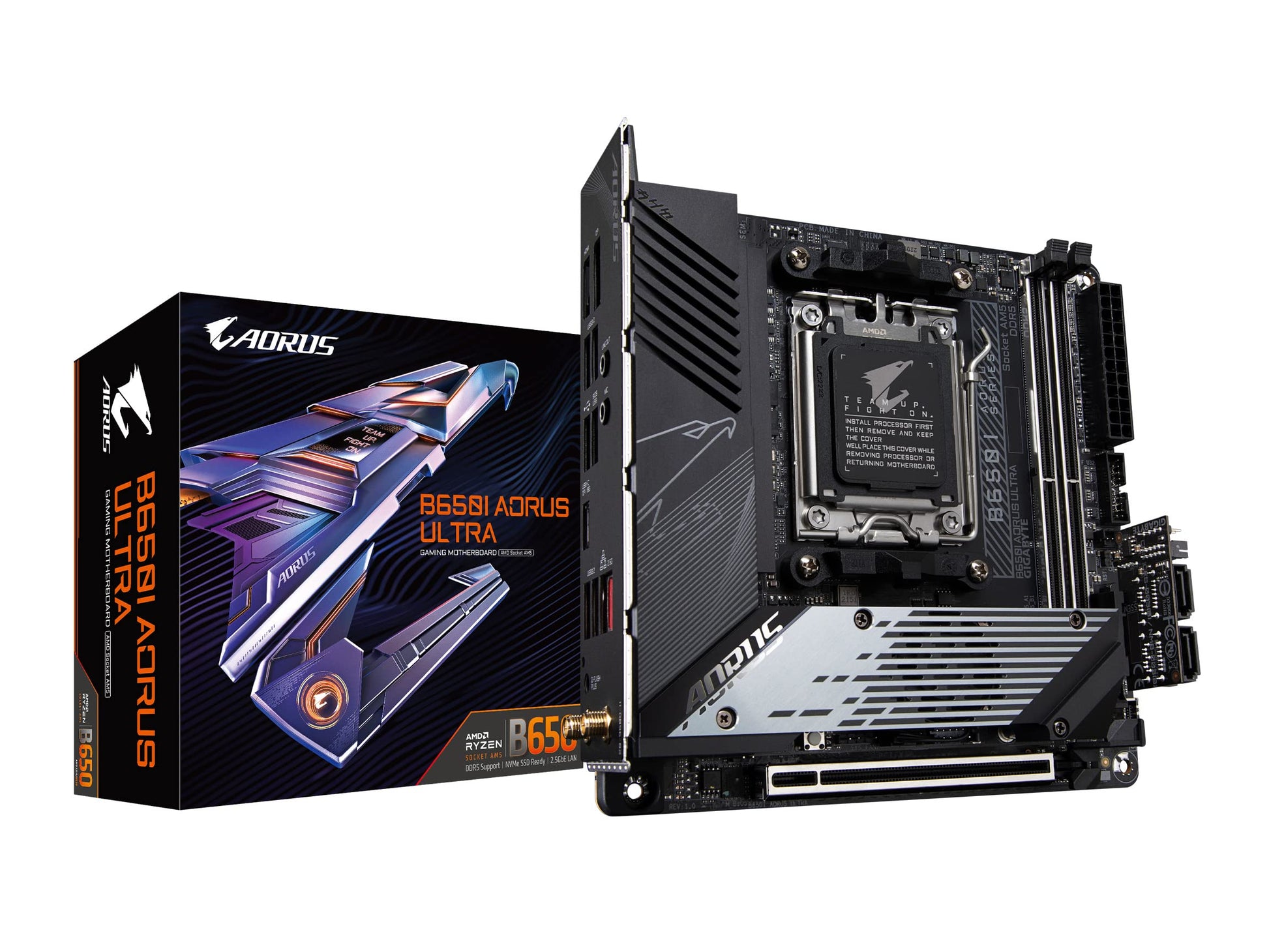

GIGABYTE B650I AORUS ULTRA Mini-ITX Motherboard
Photo is for illustration purposes only. Actual product may be different.
Regular price
$387.00
Regular price
Sale price
$387.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- • AMD B650 chipset supports modern AMD Ryzen CPUs
- • Mini-ITX form factor ideal for compact system builds
- • Engineered by GIGABYTE, part of the AORUS series
- • Country of Origin: China
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- • Compact Mini-ITX architecture allows for high-performance computing in minimal space
- • Built on AMD's B650 chipset, giving access to next-gen CPU support and performance benefits
- • Reliable brand reputation from GIGABYTE's AORUS series known for quality motherboard design
Product Overview
The GIGABYTE B650I AORUS ULTRA is a high-performance Mini-ITX motherboard built on the AMD B650 chipset. It supports space-conscious PC builds while delivering reliable performance for modern computing tasks. Designed for compact systems, this board is ideal for gamers and professional users seeking performance without size compromise. Manufactured in China, it forms part of GIGABYTE's AORUS series, known for engineering excellence. Due to limited available data, detailed technical specifics such as memory support or I/O configuration are not provided.
Specifications
Product Overview
Storage Interfaces
| M.2 Slots | 2 x M.2 (1 PCIe 5.0 x4, 1 PCIe 4.0 x4) |
| SATA Ports | 2 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 |
Graphics Support
| Integrated Graphics Support | Yes (CPU dependent) |
| HDMI Ports | 1 x HDMI 2.1 |
| DisplayPort Ports | 1 x DisplayPort 1.4 |
Networking
| LAN | Intel 2.5GbE LAN (RJ-45) |
| Wireless LAN | Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.2 |
Internal Connectors
| Fan Headers | 3 x 4-pin Fan Connectors |
| Front USB Headers | 1 x USB 3.2 Gen 1 Header, 2 x USB 2.0 Headers |
| RGB LED Headers | 2 x Addressable LED, 2 x RGB LED Headers |
Compliance & Origin
| Country of Origin | China |
| Certifications | CE, FCC, BSMI, RCM, cTUVus |
| RoHS Compliance | Yes |
Advanced Security Features
| Platform Security | TPM 2.0 via AMD fTPM |
| Secure Boot | Yes |
Memory Support
| Memory Type | DDR5 |
| Maximum Memory Supported | 64 GB |
| Memory Slots | 2 x DIMM |
| Memory Channel Support | Dual Channel |
| Memory Speed (OC) | Up to 6600 MHz (OC) |
| ECC Memory Support | Yes (ECC Un-buffered DIMMs) |
Expansion Slots
| PCI Express x16 Slots | 1 x PCIe 4.0 x16 |
Audio
| Audio Codec | Realtek ALC4080 |
| Audio Channels | 7.1-Channel High Definition Audio |
Rear I/O Ports
| USB Ports Total | 10 |
| USB 3.2 Gen 2 Ports | 4 x USB 3.2 Gen 2 Type-A |
| USB 3.2 Gen 2x2 Ports | 1 x USB 3.2 Gen 2x2 Type-C |
| USB 2.0 Ports | 4 x USB 2.0 |
| Audio Jacks | 5 x Audio Jacks + 1 x Optical S/PDIF Out |
| LAN Port | 1 x RJ-45 |
| Wi-Fi Antenna Connectors | 2 x SMA Antenna Connectors |
Physical & Environmental
| Dimensions | 170 x 170 mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90%, non-condensing |
Cloud Management & Licensing
| BIOS Management Interface | UEFI AMI BIOS with Q-Flash Plus |
| Firmware Update | Q-Flash Plus (BIOS update without CPU/RAM/GPU) |
